SAML For Administrators with Azure

Alexandre de THOMASSON
  • Updated
How to use SAML authentication for your administrators with Cloudi-Fi and Azure to access the admin interface.



Configure Azure AD SSO

Add the Azure AD SAML Toolkit application

From Home, click on Enterprise applications

Add a new application and Search for Azure AD SAML Toolkit and create it after giving it an explicit name (Cloudi-Fi Administrators, for instance)



Configure Single Sign-On

Once you have the Azure AD SAML Toolkit application, click on it and go to Single Sign-On and On the Select a single sign-on method page, select SAML.



On Set up Single Sign-On with SAML Page

On the Basic SAML Configuration page, enter the values for the following fields :

The company hash is visible on your Cloudi-Fi account; go to Setting Company Account Cloudi-Fi Public Key



On Cloudi-Fi Side

Go to Settings Auth modes SAML For Administrators, enter the values for the following fields :

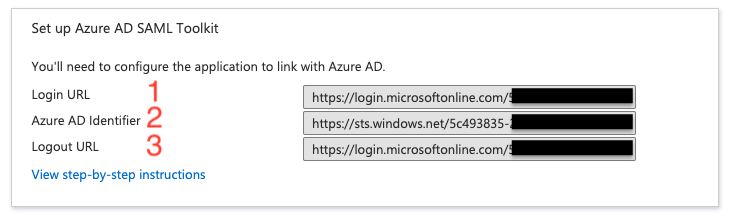

  • Entity Id: Azure AD Identifier (Marked 2)

  • Binding Method: Post or Redirect

  • Login Endpoint: Login URL (Marked 1)

  • Logout Binding Method (Optional) : Post or Redirect

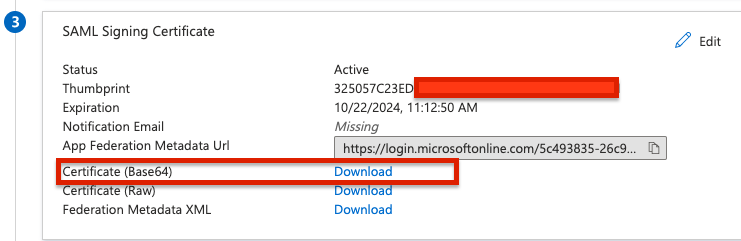

  • IdP Signing Certificate (x509 format) : Download the raw Certificate and Past it here (without "Begin Certificate" and "End certificate" markers)



  • Email Attribute name: Claim name corresponding to the Mail value ( Marked 1 )



( Optional )

Enable Administrator auto-provisioning



Enabling automatic administrator provisioning allows administrators to be assigned a Cloudi-Fi profile based on the Azure AD group to which they belong.



( Optional )

On Azure AD Side, once the groups are created and the members allocated, the next step is the SSO SAML configuration with the creation and management of the "Attributes & Claims". In addition to the information on the user, i.e., the name, the first name, and the email address, we need to assign a profile to this user by creating an Additional claims.

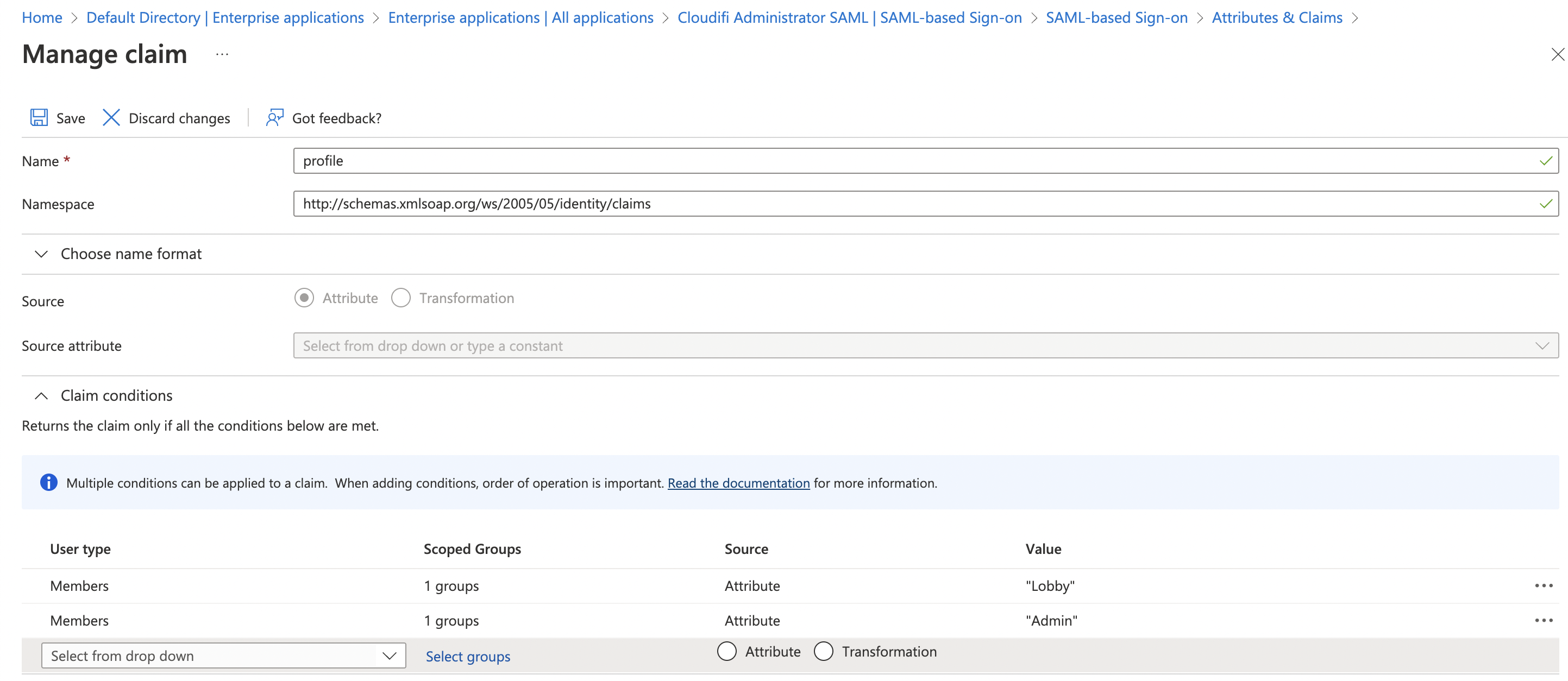

The configuration is done as follows:

  • Click on Add a new claim

  • Give it a name (profile, for instance)

  • Namespace: http://schemas.xmlsoap.org/ws/2005/05/identity/claims

  • In the Claim conditions, create as many profiles as you need to allow on the Cloudi-Fi interface

    • User type: Members or Any

    • Scoped Groups: Select the Groups allowed to have access to Cloudi-Fi Admin Console

    • Source: Attribute

    • Value: Profile value (Lobby, ReadOnly, or Admin, for instance)



On Cloudi-Fi Side, Configure or finalize the SAML configuration

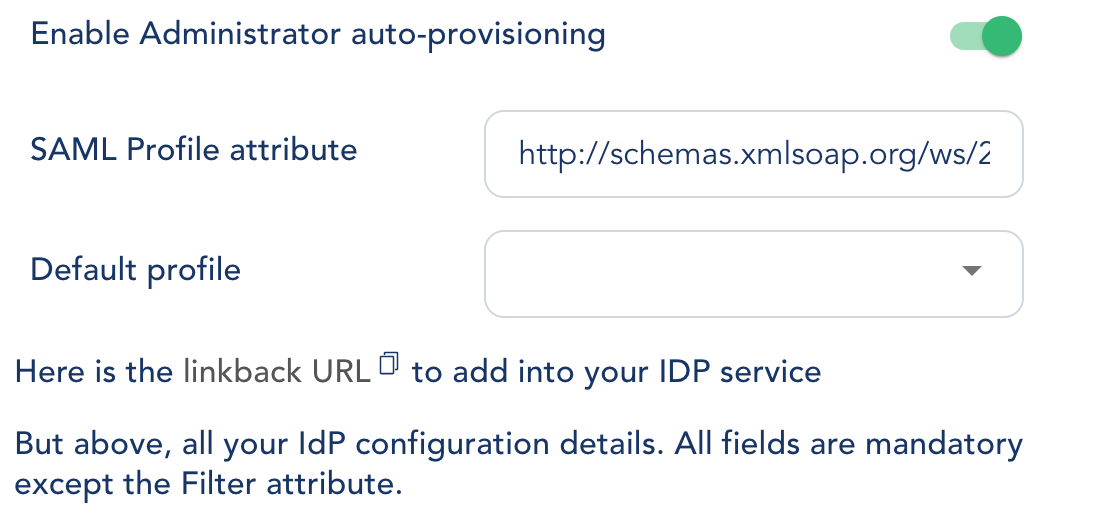

Go to Settings Auth modes SAML for Administrators. Enable Administrator auto-provisioning and type the Claim name corresponding to the profile in the SAML Profile Attribute field.



You can also assign a Default profile if no profile is received in the SAML response.

Useful Links

https://docs.microsoft.com/en-gb/azure/active-directory/develop/active-directory-saml-claims-customization?WT.mc_id=Portal-Microsoft_AAD_IAM

https://docs.microsoft.com/en-us/azure/active-directory/fundamentals/auth-saml

Troubleshooting

https://docs.microsoft.com/en-us/troubleshoot/azure/active-directory/error-code-aadsts50105-user-not-assigned-role
