How to set up SAML authentication for your administrators with Okta ?

Alexandre de THOMASSON
  • Updated

Step-by-step instructions to set up a SAML authentication for your Administrators with Cloudi-Fi and Okta.



Use case

The following sections will provide step-by-step instructions to set-up a SAML authentication for your Cloudi-Fi administrators with Cloudi-Fi and Okta.



Prerequisites

SAML for Administrators URLs

  • Navigate to the Cloudi-Fi Admin user interface (UI)
  • Go to "Configuration > Auth modes > SAML for Administrators"
  • Collect the necessary information

Linkback URL

https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin/************

*****  is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account)

Cloudi-Fi Entity ID

https://admin.cloudi-fi.net/

If "SAML for Administrators" is not available, please open a ticket to Cloudi-Fi Support (How to contact your Cloudi-Fi support ?)



1. Create your Okta SAML application

  1. Go to your Okta portal and switch to "Classic UI" mode.
  2. Go to the Application section, and add a new application.

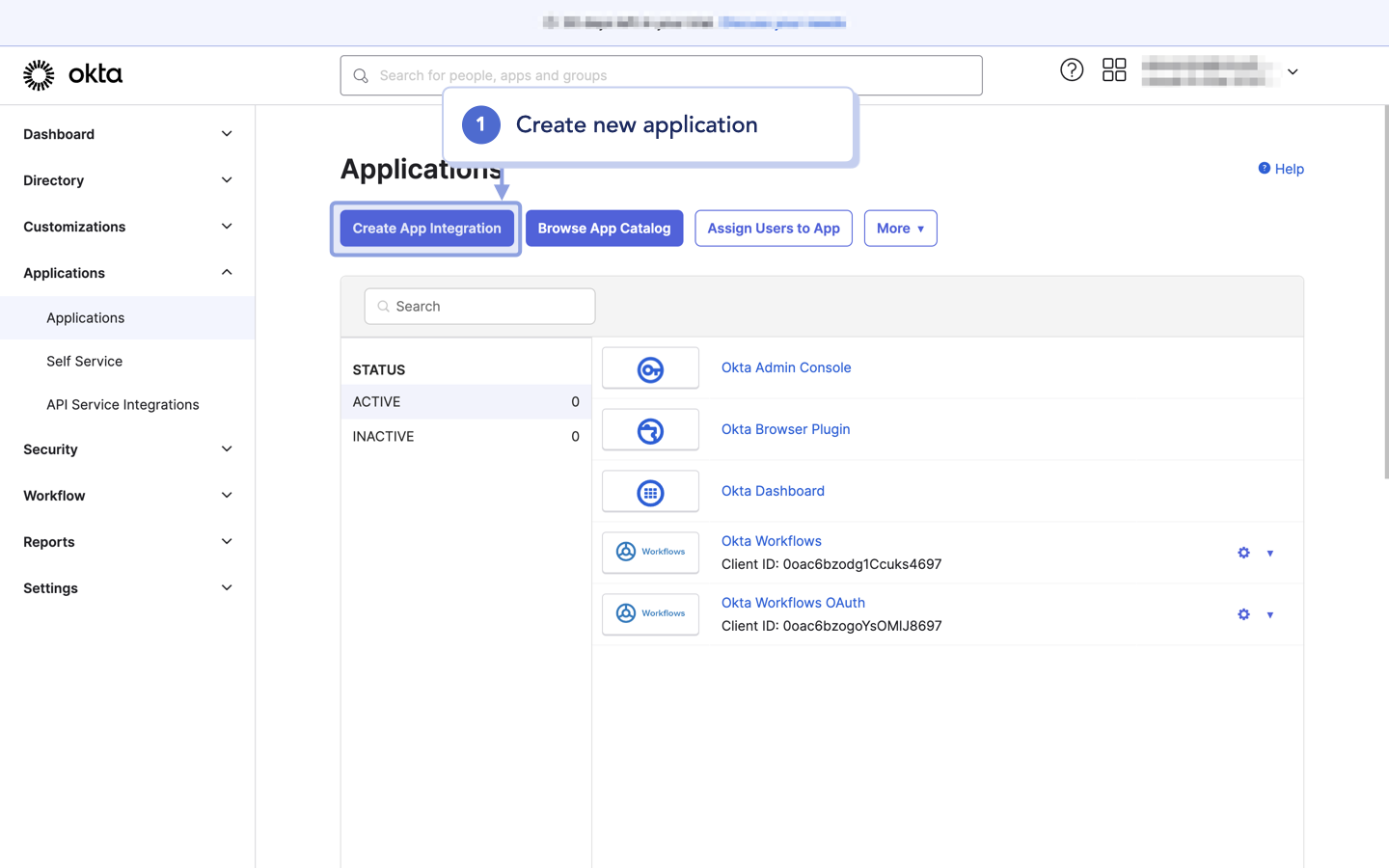

  3. Click on "Create a new Application Integration"

cloudi-fi_okta_saml_create a new application_1.png

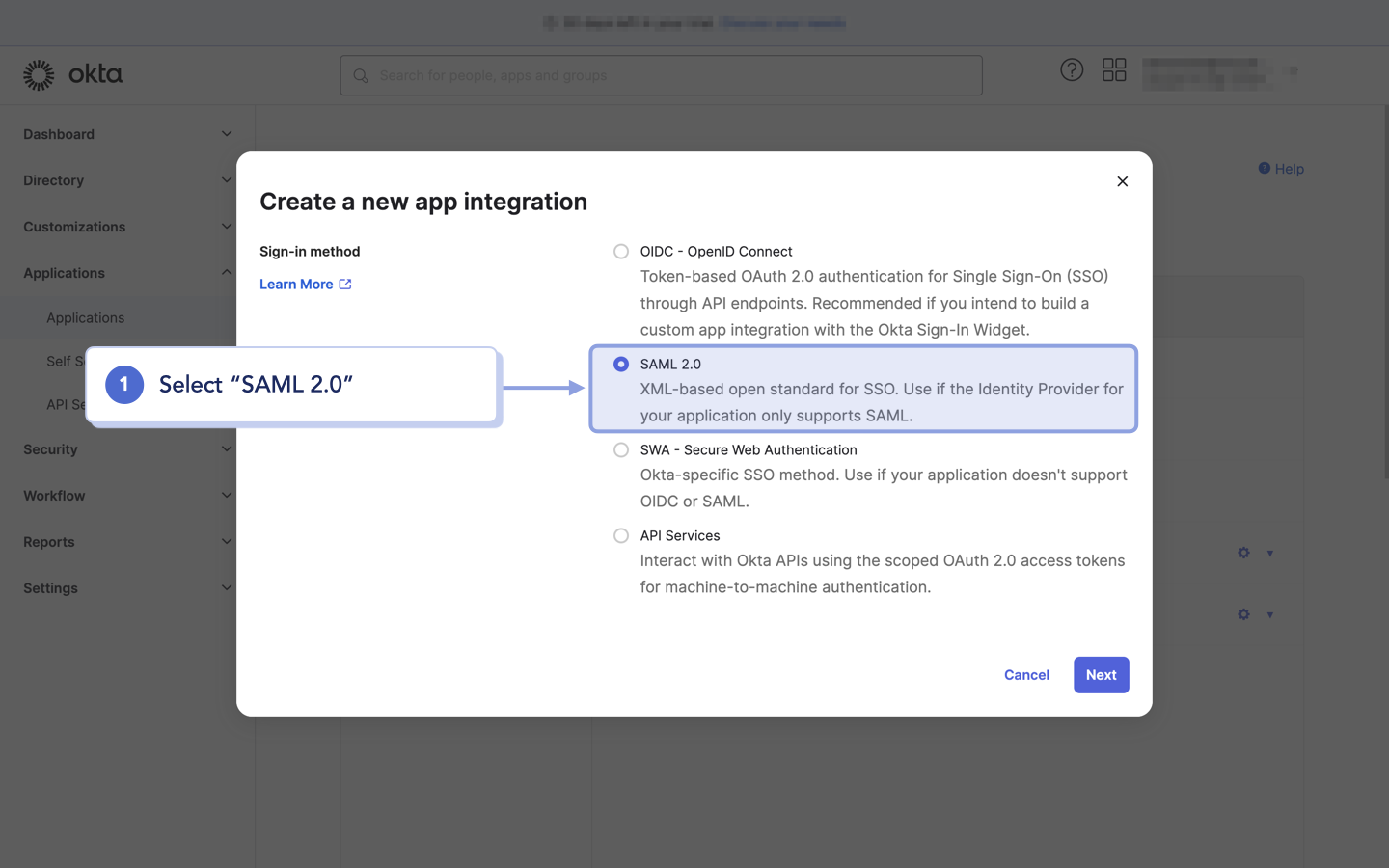

Then, select SAML 2.0

cloudi-fi_okta_saml_create a new application_2.png

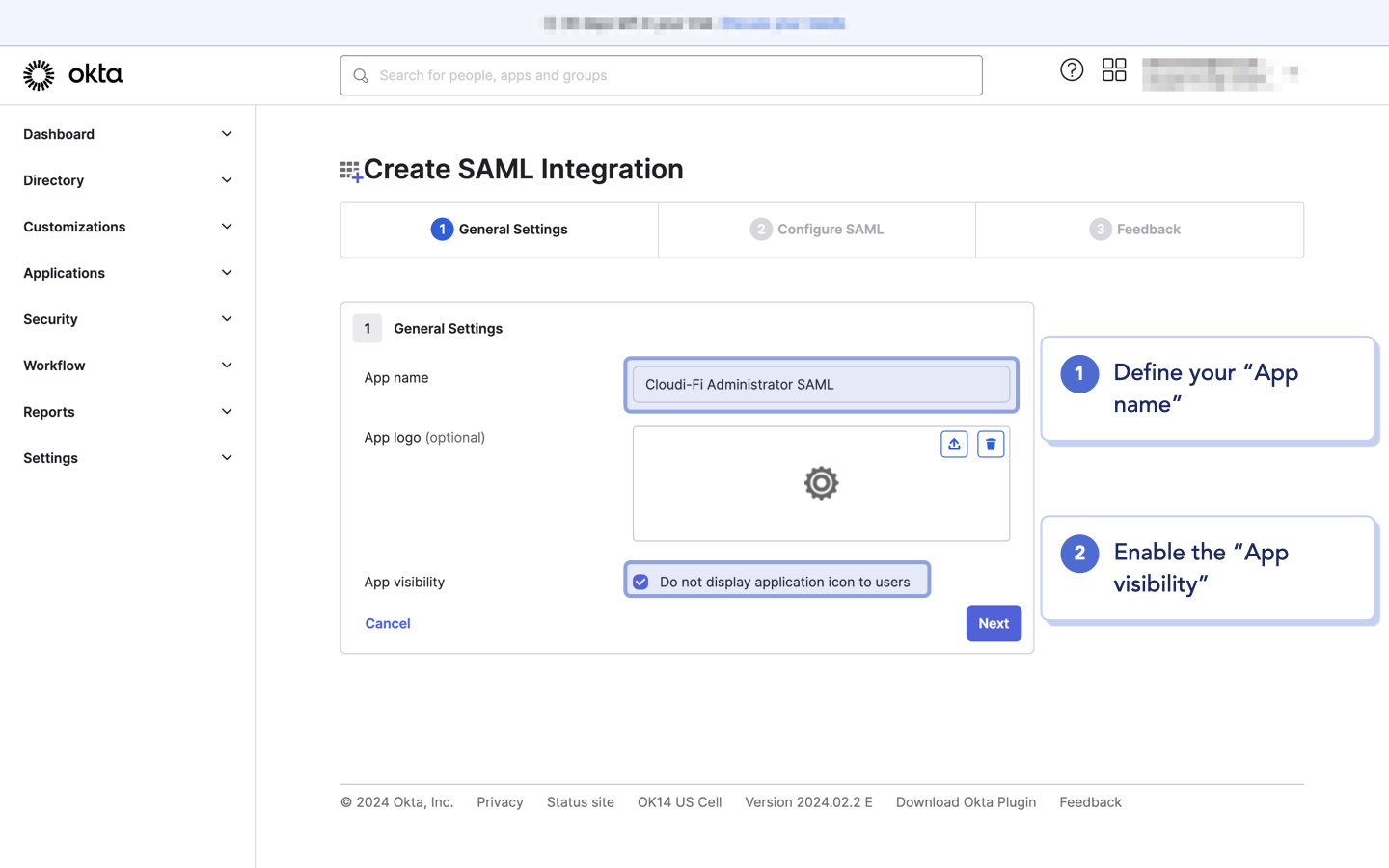

In the General Settings page, define your "App name" (for instance: Cloudi-Fi Guest APAC SAML) and click on Next

cloudi-fi_okta_saml_create a new application_general settings_administrators.png

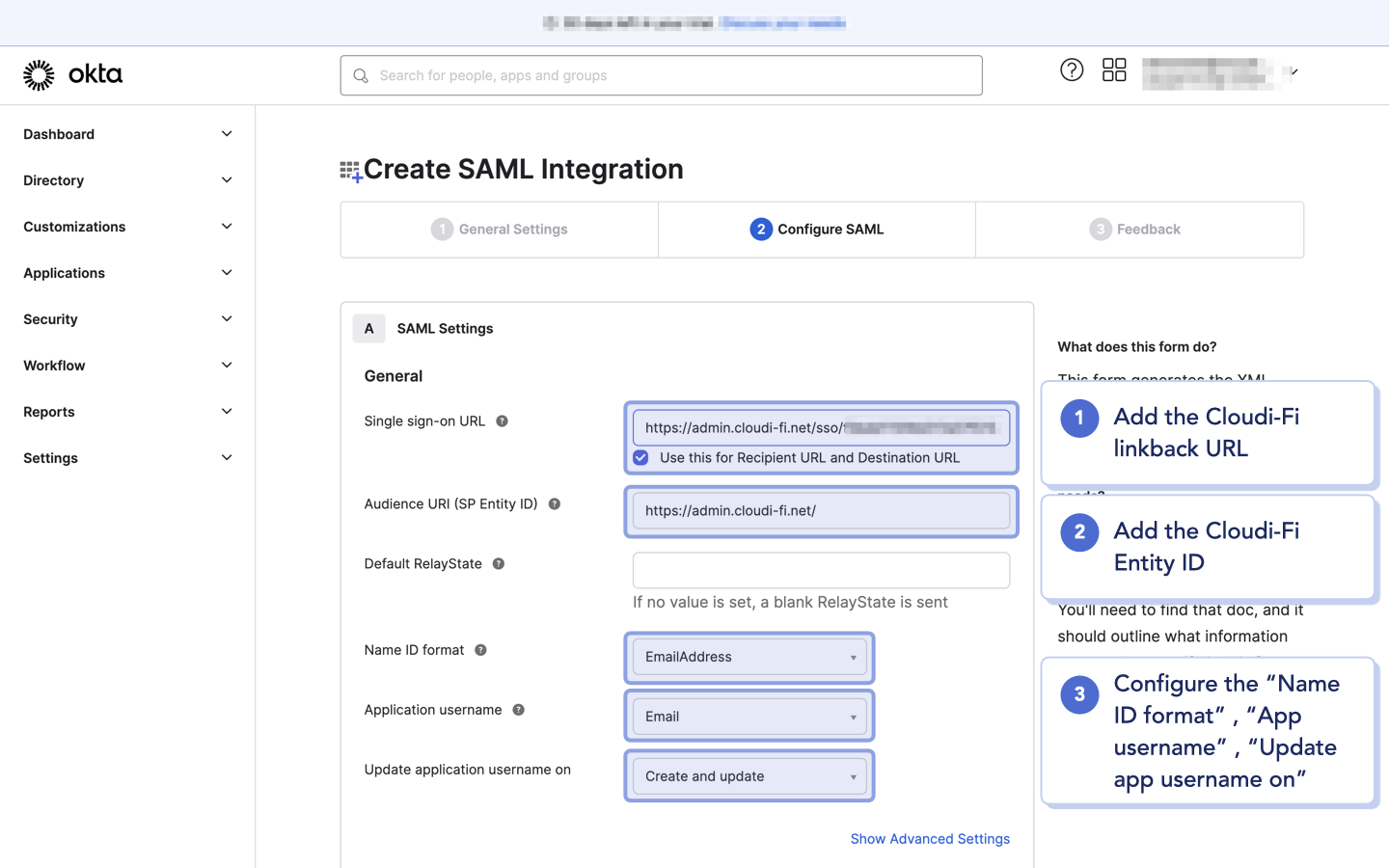

Configure SAML page

Linkback URL

https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin/<company_key>

To find your <company_key> , go to the Cloudi-fi Admin interface, navigate to Settings, then Company Account

Cloudi-Fi Entity ID

https://admin.cloudi-fi.net/

Name ID format
EmailAddress

Application username
Email

Update application username on
Create and update

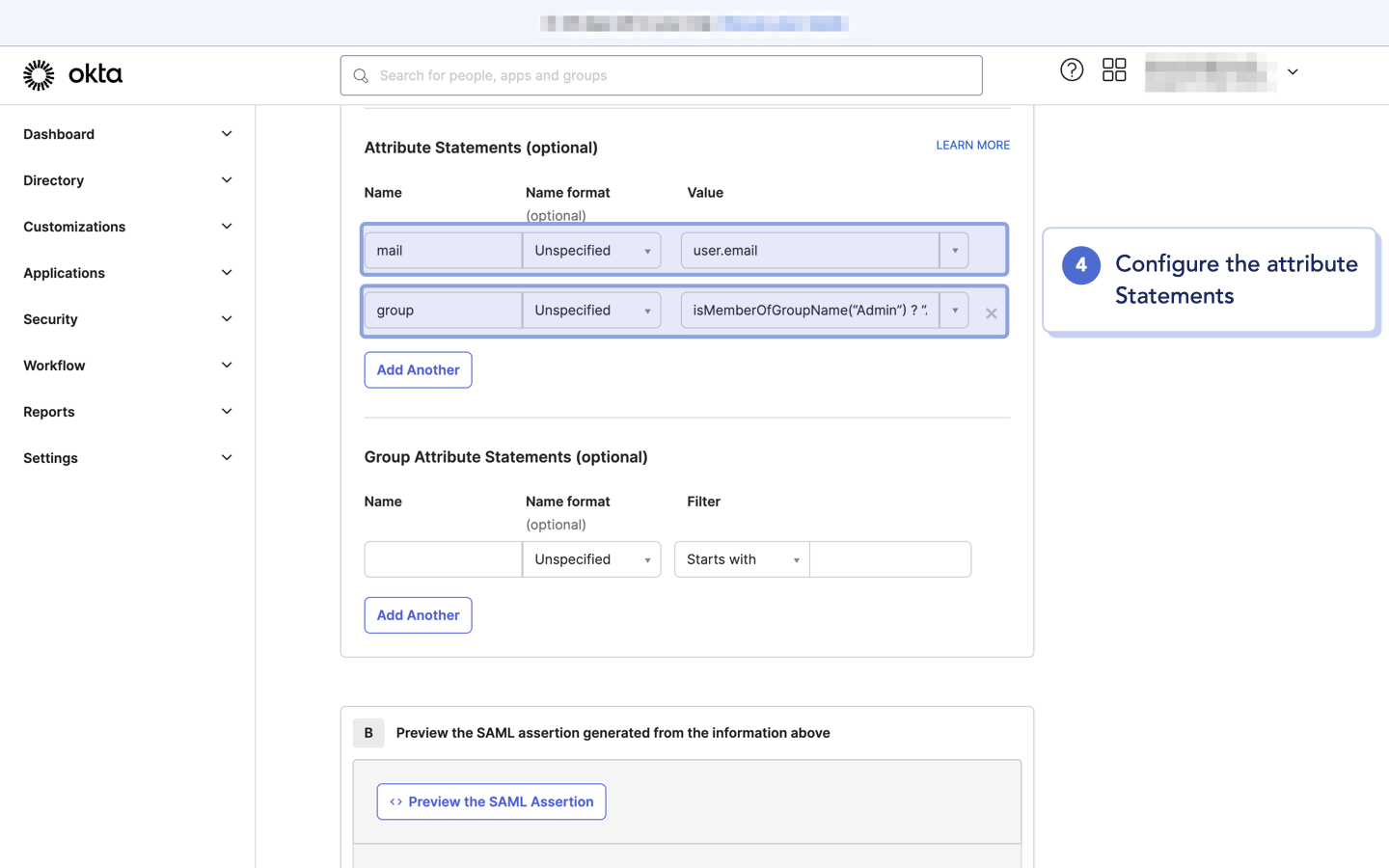

Attribute Statements
Note: “Admin” , “Lobby” , “ReadOnly” are the admin_profiles created in Admin UI > Administrators > Profiles

"Name" "Value"
mail user.email
group
isMemberOfGroupName(“Admin”) ? “Admin” :
(isMemberOfGroupName(“Lobby”) ? “Lobby” : “ReadOnly”)





cloudi-fi_okta_saml_create a new application_administrators_configure SAML_1.png



cloudi-fi_okta_saml_create a new application_administrators_configure SAML_2.png

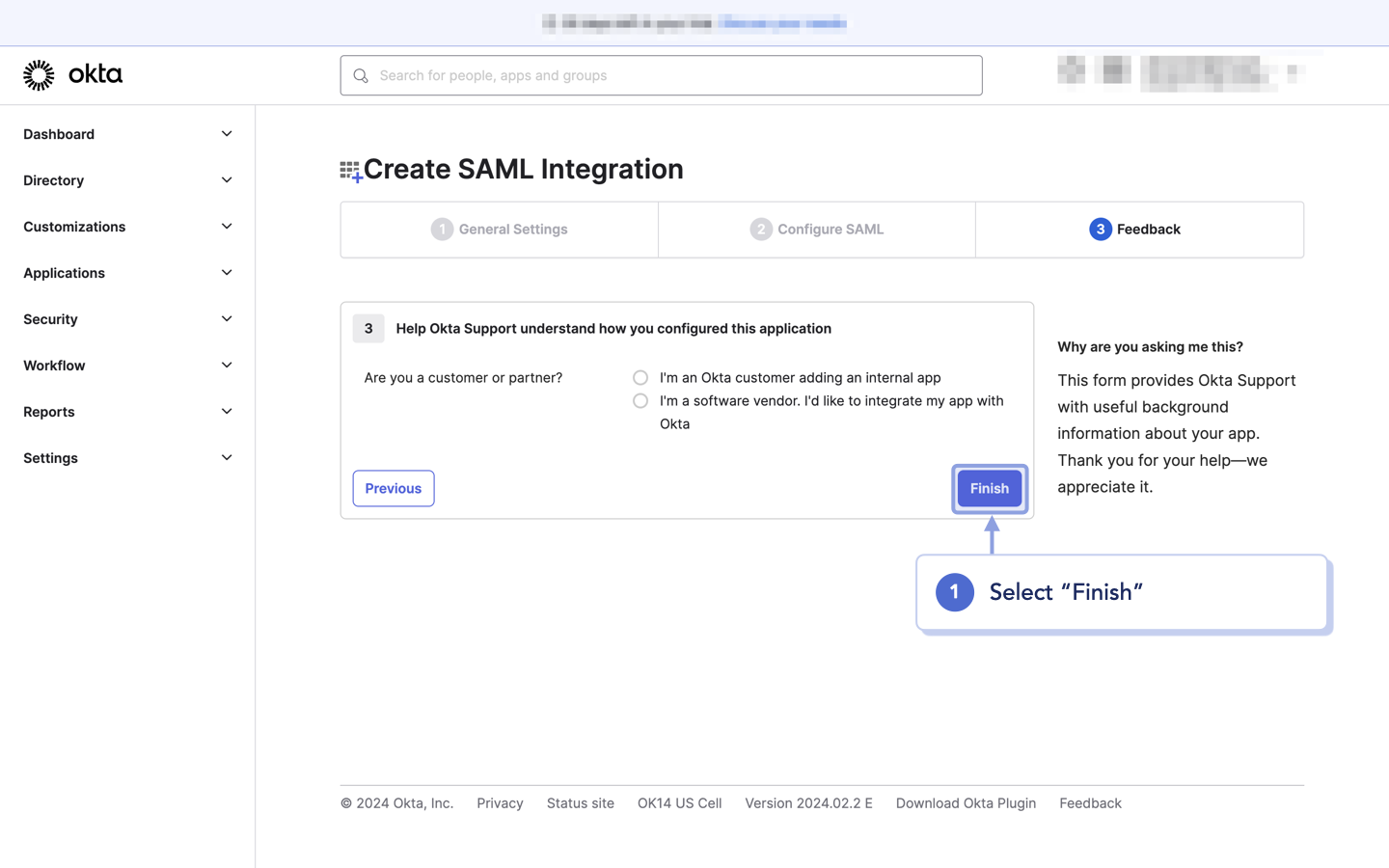

In Feedback page, click on "Finish"

cloudi-fi_okta_saml_create a new application_feedback.png

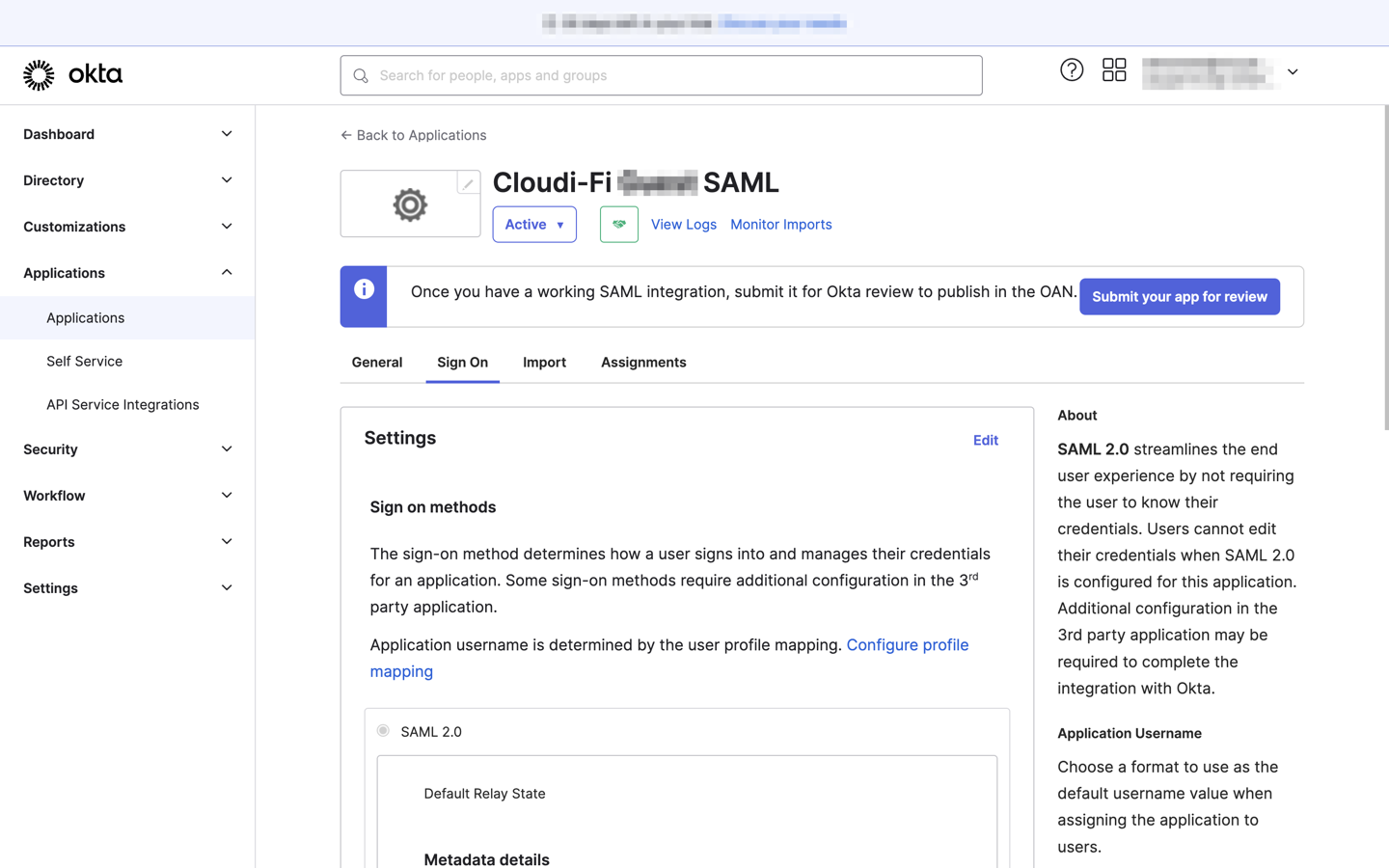

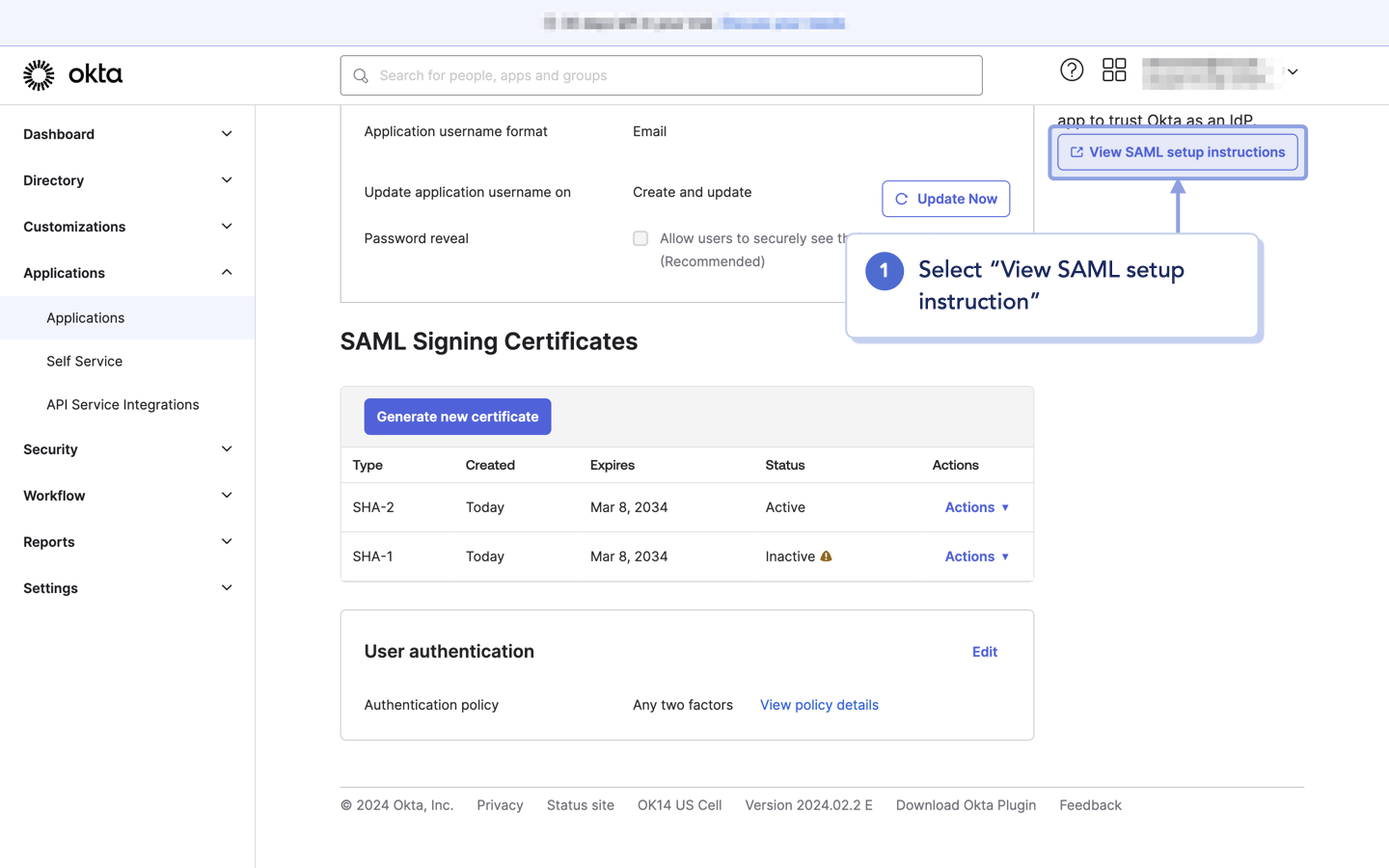

Once the Cloudi-Fi application is created on Okta, click "View SAML Setup Instructions" to retrieve technical information to be configured on the Cloudi-Fi portal.

cloudi-fi_okta_saml_create a new application_end.png

cloudi-fi_okta_saml_create a new application_view SAML instructions_1.png

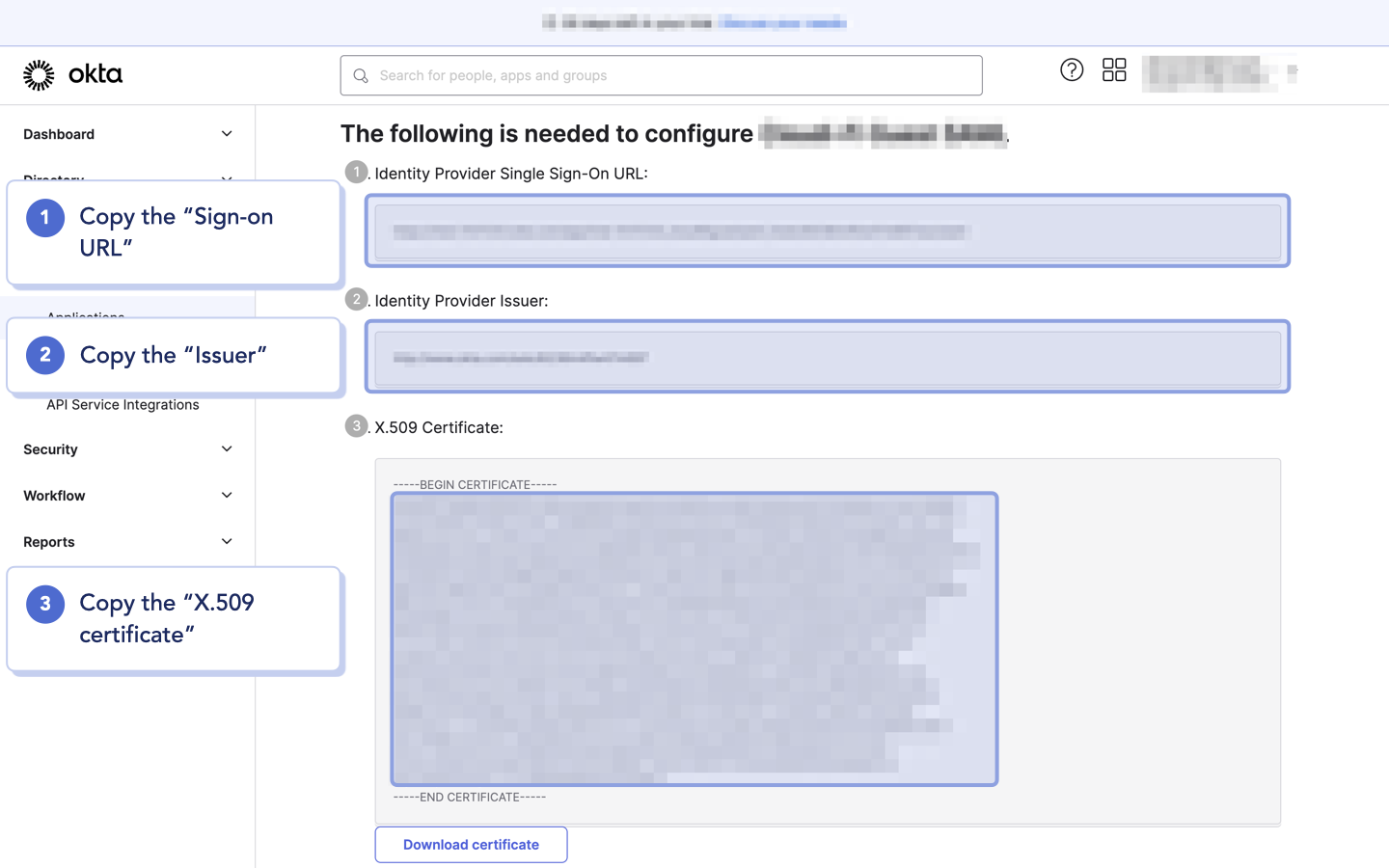

Here are needed information:

  • Identity Provider Single Sign-On URL
  • Identity Provider Issuer
  • X.509 Certificate

cloudi-fi_okta_saml_create a new application_view SAML instructions_2.png



2. Cloudi-Fi configuration

To start step 2, make ensure you have all of these information

Attributes_name
(in Okta)		 Attributes_name
(in Cloudi-Fi)		 Details
Single sign-on URL Linkback URL
https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin/<company_key>
SP Entity ID Cloudi-Fi Entity ID
https://admin.cloudi-fi.net/
Identity Provider Issuer

IdP EntityID


http://www.okta.com/*********
Identity Provider Signle Sign-On URL IdP Endpoint
https://******/app/****/*****/sso/saml
X.509 Certificate IDP Signing Certificate (X509 (Base64)
Attribute Statements / Name Email_address Claims
mail
Attribute Statements / group SAML Profile attribute
group

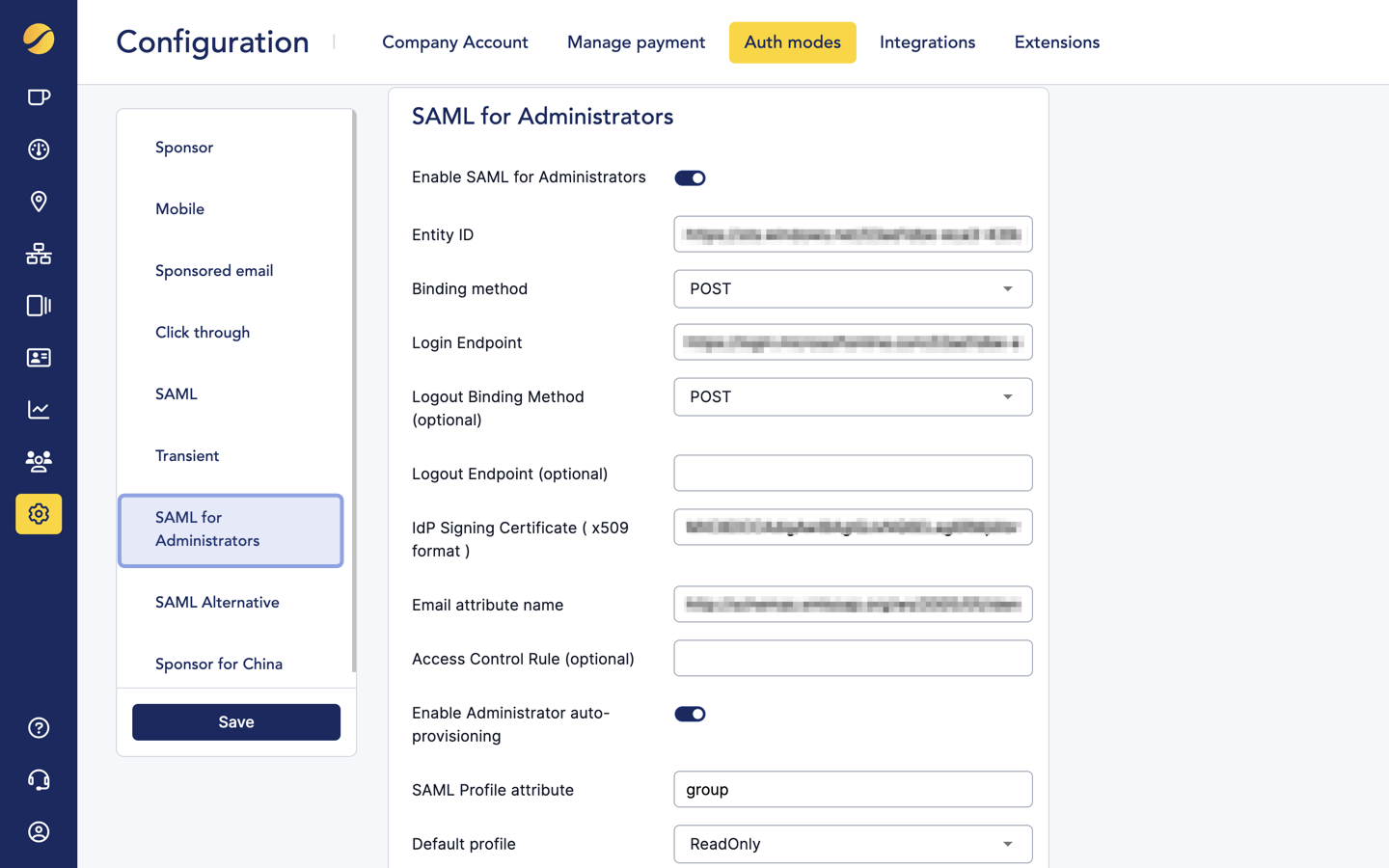

  • Navigate to the Cloudi-Fi Admin user interface (UI)
  • Access "Configuration > Auth modes > SAML for Administrators"
  • Enter the required values into the respective fields

cloudi-fi_admin_saml for admin_okta_configuration.png



Fill out the form as described below with details previously retrieved on Okta :

  • IdP EntityId: Identity Provider Issuer
  • Binding Method: POST
  • IdP Endpoint: Identity Provider Single Sign-On URL
  • Logout Binding Method: POST
  • Logout Endpoint:
  • IdP Signing Certificate: X.509 Certificate without "Begin Certificate" and "End certificate" markers
  • Email attribute name: mail
  • SAML Profile attribute: group

Finally, click on Save



3. Enable Administrator auto-provisioning (Optional)

Enabling automatic administrator provisioning allows administrators to be assigned a Cloudi-Fi profile based on the Okta group to which they belong.

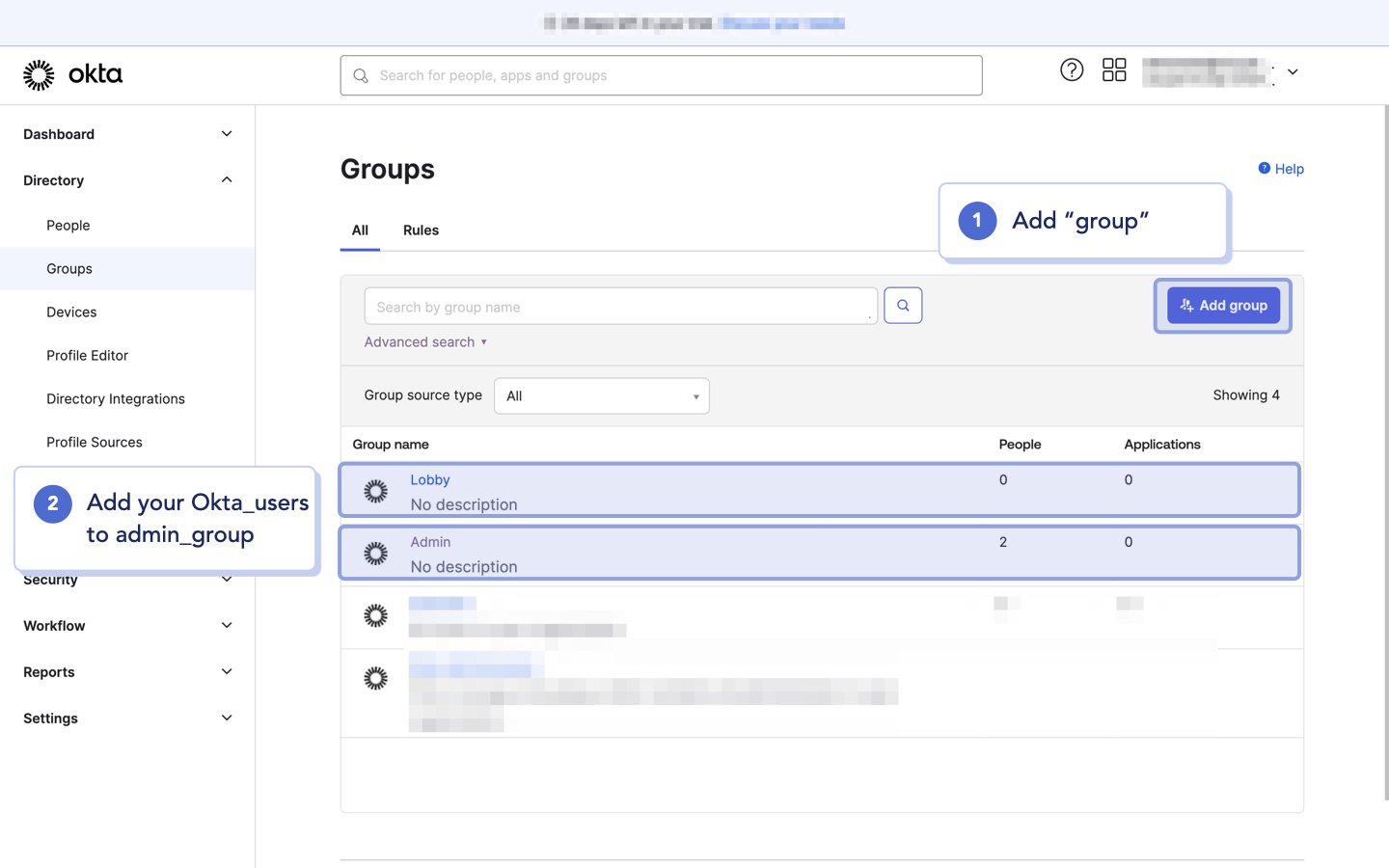

Option 1: Create Okta groups with names identical to the Cloudi-Fi administrator profiles. The default Cloudi-Fi profiles will be used.




Option 2: Use existing Okta groups. This will create new profiles on the Cloudi-Fi side with limited permissions. You will need to modify the permissions of Cloudi-Fi administrator profiles manually.



Troubleshooting

Okta error message

An administrator access to the application and he is redirected to Okta authentication Page. He fills out his (email_address, password) and Sign-in. Then he is redirected to an Okta Error Page.

Please replay the process and perform a HTTP capture (Perform a Web Request capture in the web browser) and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?)



What's Next ?

Congratulations on enabling SAML authentication with Okta for your Administrators.
