How to set up SAML authentication for your administrators with OneLogin ?

Alexandre de THOMASSON
  • Updated
Step-by-step instructions to set up a SAML authentication for your Administrators with Cloudi-Fi and OneLogin.



Use case

The following sections will provide step-by-step instructions to set-up a SAML authentication for your Cloudi-Fi administrators with Cloudi-Fi OneLogin.



Prerequisites

SAML for Administrators URLs

  • Navigate to the Cloudi-Fi Admin user interface (UI)
  • Go to "Configuration" > "Auth modes" > "SAML"
  • Collect the necessary information

Linkback URL

https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/************

*****  is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account).

Cloudi-Fi Entity ID

https://admin.cloudi-fi.net/

If "SAML for Administrators" is not available, please open a ticket to Cloudi-Fi Support (How to contact your Cloudi-Fi support ?).



1. Create your OneLogin SAML application

  • Go to your OneLogin portal

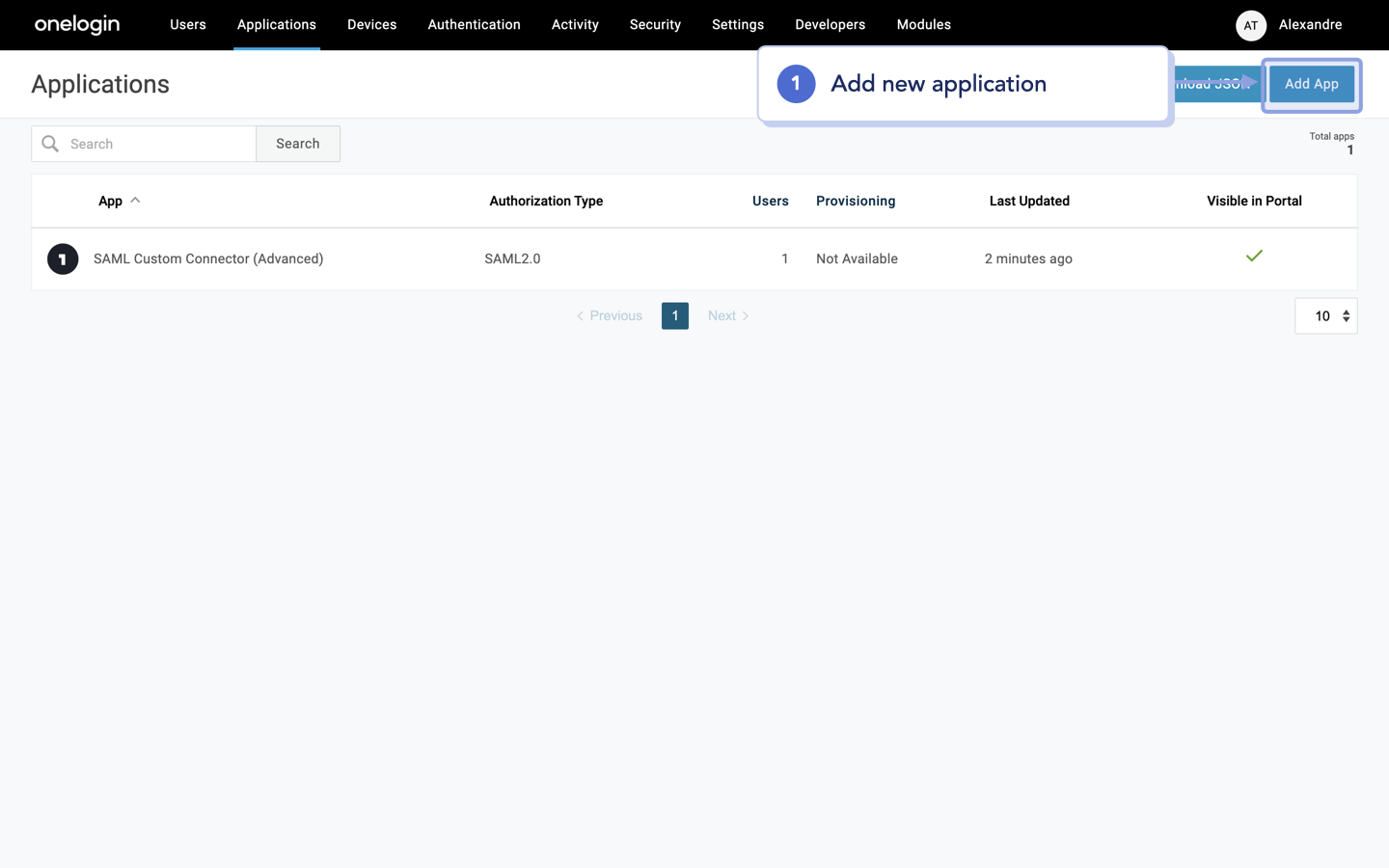

  • Go to the Application section, and add a new application.

cloudi-fi_onelogin_samI_create a new application_add.png



Then, research "SAML Custom Connector (Advanced)"

cloudi-fi_onelogin_samI_create a new application_search.png

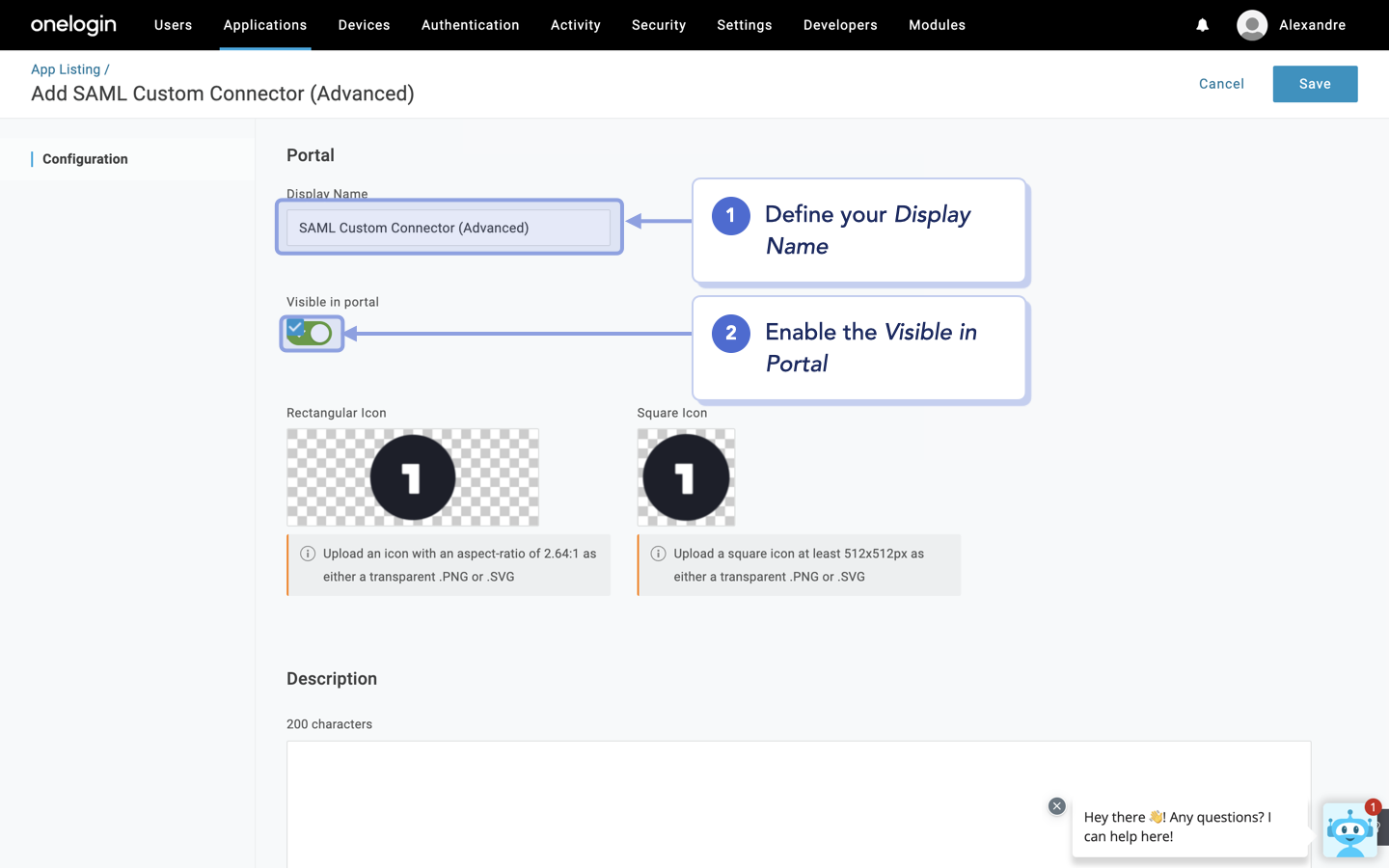

In the Configuration section, define your "App name" (for instance: Cloudi-Fi Admin SAML), enable "Visible in Portal" and Save.




In the Configuration section

  • Audience (EntityId) : Cloudi-Fi Entity ID (https://admin.cloudi-fi.net/)
  • Recipient : Linkback URL (https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key> ) - see SAML URL
  • ACS URL : Linkback URL (https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key> ) see SAML URL
  • SAML NameID : Email

cloudi-fi_onelogin_samI for admin_sso.png



cloudi-fi_onelogin_samI_configuration_application details_2.png



In Parameters section, add a new field.

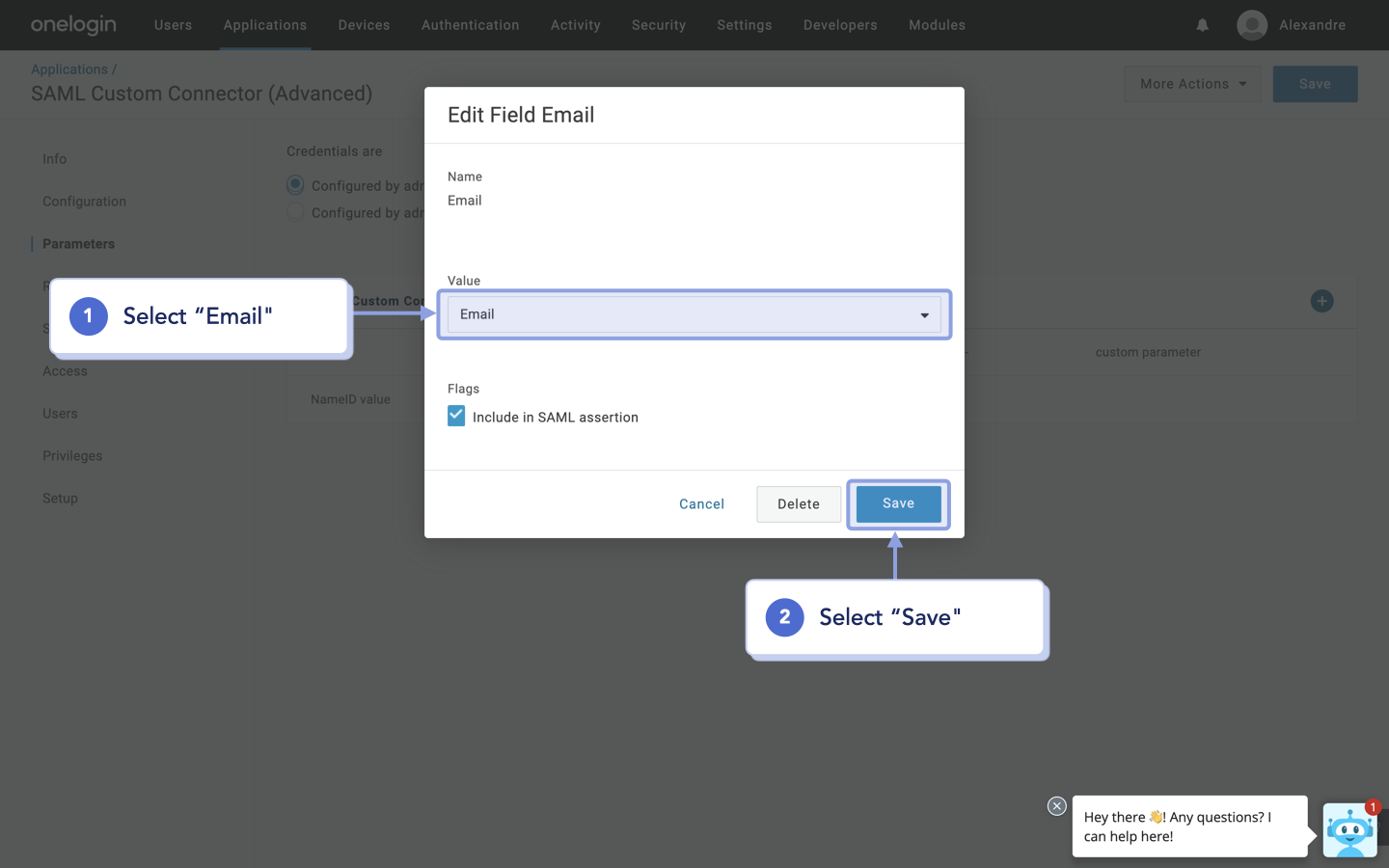

Then add "Email" as Field Name, enable Include in SAML assertion and Save.




Then select Email value and Save.




Now your Cloudi-Fi application is created on OneLogin, click "SSO" to retrieve technical information to be configured on the Cloudi-Fi portal. Here are needed information:

  • Issuer URL
  • SAML 2.0 Endpoint

Then got to "View details" and copy the X.509 certificate.







2. Cloudi-Fi configuration

To start step 2, make ensure you have all of these information

Issuer URL
SAML 2.0 Endpoint

Attributes_name
(in OneLogin)		 Attributes_name
(in Cloudi-Fi)		 Details
ACS URL Linkback URL
https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key>
Recipient Linkback URL
https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key>
Audience (EntityId) Cloudi-Fi Entity ID
https://admin.cloudi-fi.net/
SAML 2.0 Endpoint

IdP EntityID


https://*******.onelogin.com/trust/saml2/http-post/sso/******************
Issuer URL IdP Endpoint
https://app.onelogin.com/saml/metadata/*****************
X.509 Certificate IDP Signing Certificate (X509 (Base64)
SAML NameID Email_address Claims
Email



Navigate to the Cloudi-Fi Admin user interface (UI)
Access Configuration > Auth modes > SAML for Administrators
Enter the required values into the respective fields

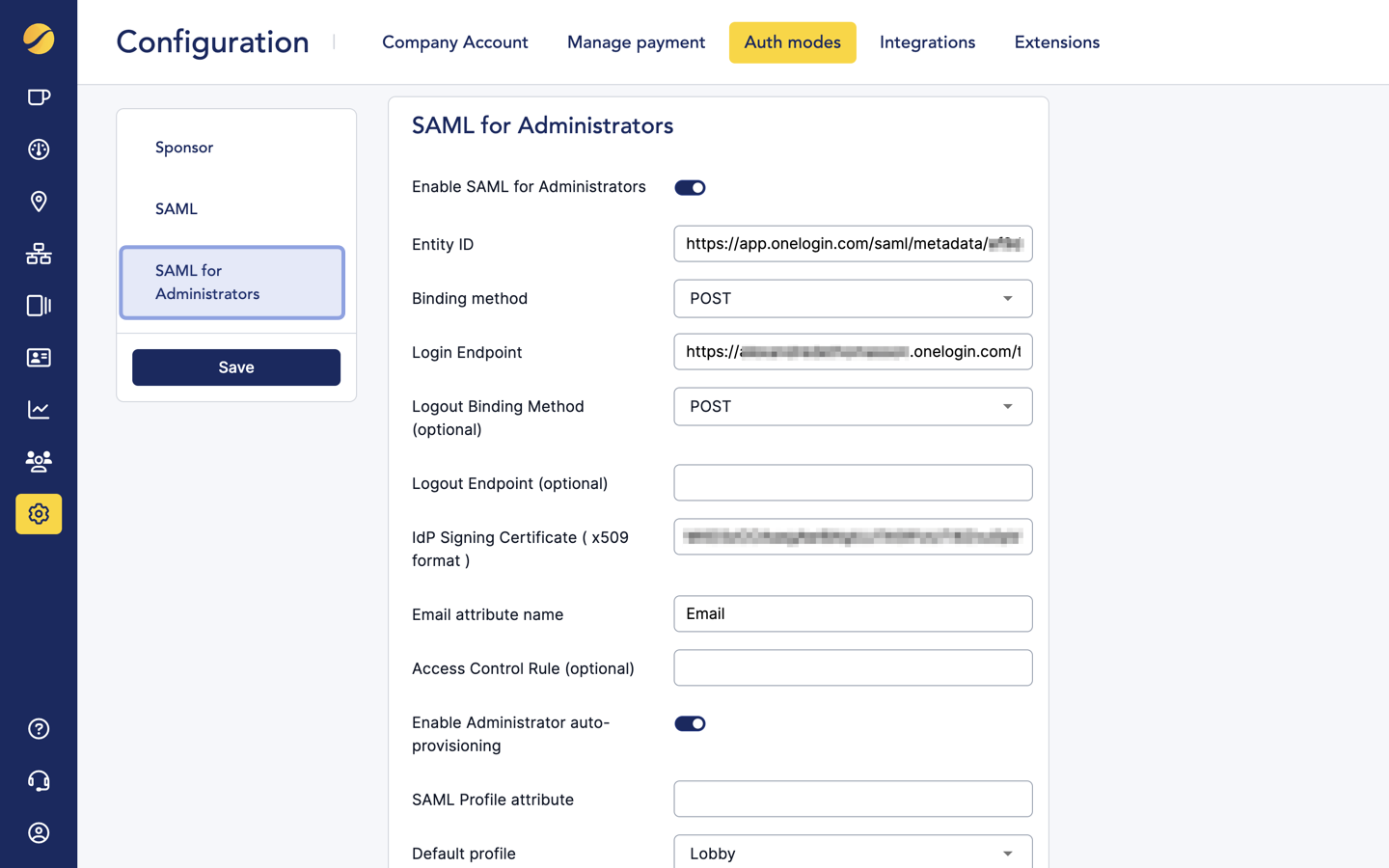

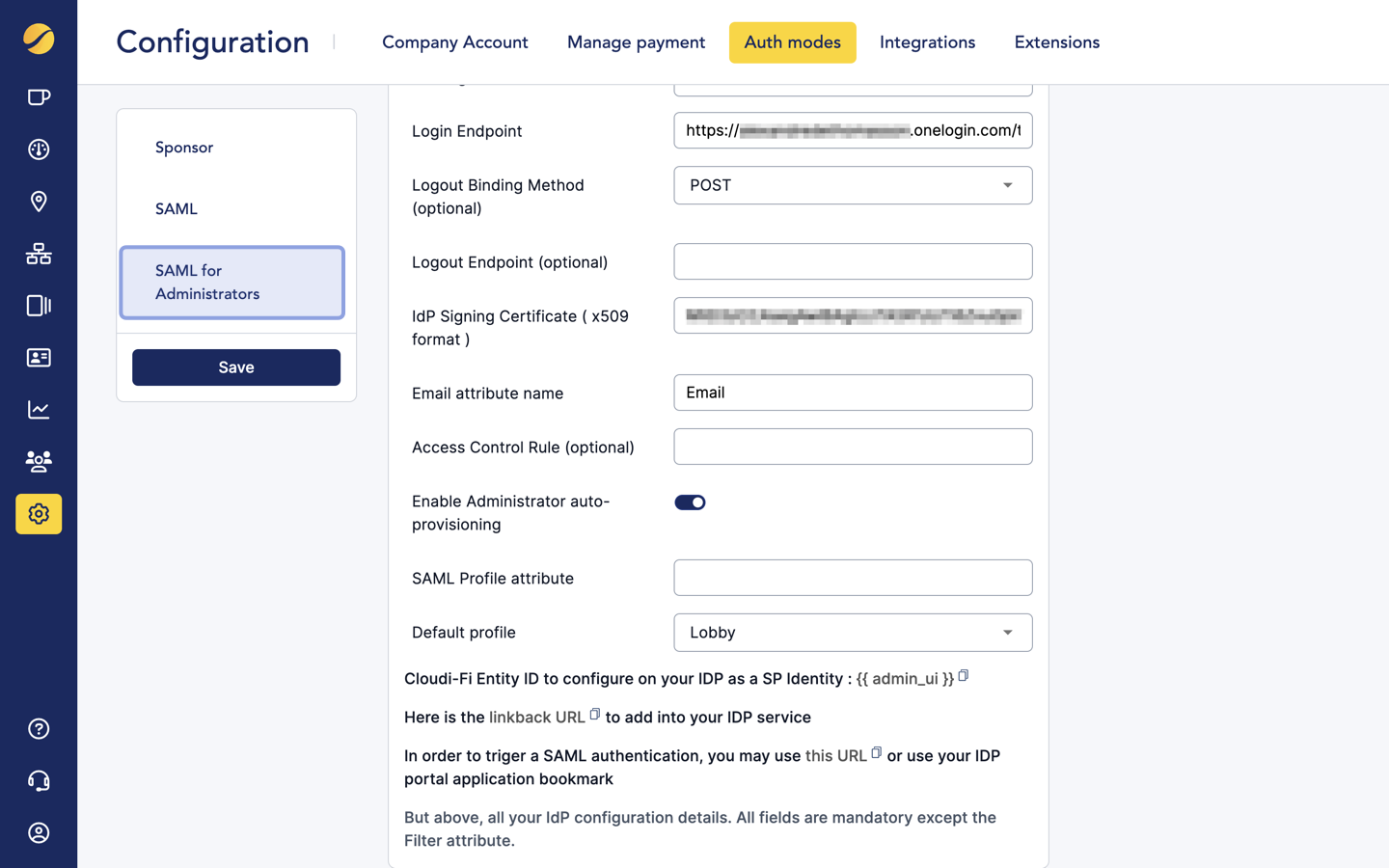

cloudi-fi_settings_auth mode_saml for admin_onelogin_2.pngcloudi-fi_settings_auth mode_saml for admin_onelogin_1.png



Fill out the form as described below with details previously retrieved on OneLogin:

  • IdP EntityId : SAML 2.0 Endpoint
  • Binding Method : POST
  • IdP Endpoint : Issuer URL
  • Logout Binding Method : POST
  • IdP Signing Certificate : X.509 Certificate without "Begin Certificate" and "End certificate" markers
  • Email attribute name : Email

Finally, click on Save



Troubleshooting

OneLogin error message

An administrator access to the application and he is redirected to OneLogin authentication Page. He fills out his (email_address, password) and Sign-in. Then he is redirected to an OnLogin Error Page.

Please replay the process and perform a HTTP capture (Perform a Web Request capture in the web browser) and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?)



What's next ?

Congratulations on enabling SAML authentication with OneLogin for your Administrators.
