Before you begin

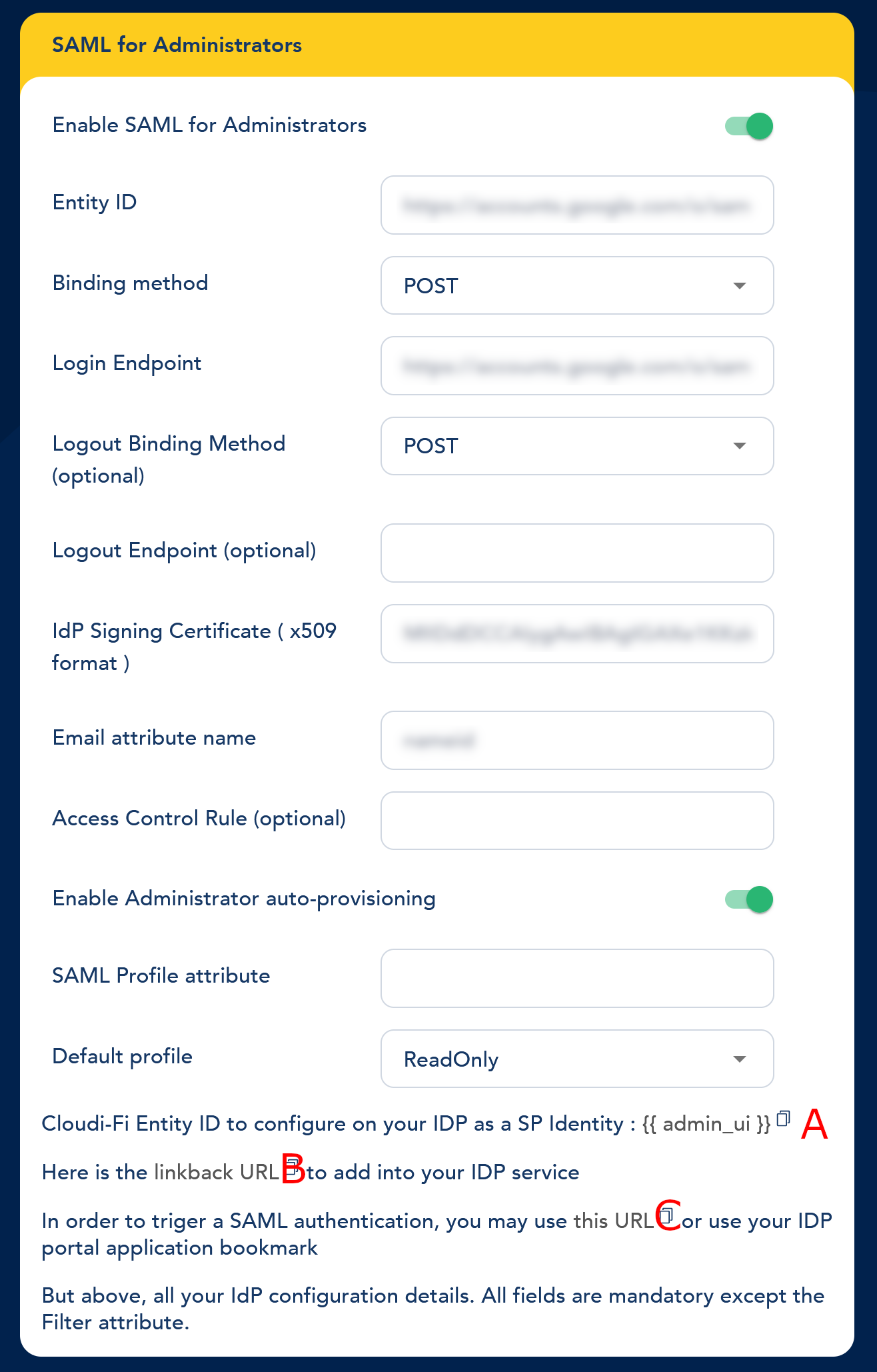

From the Cloudi-Fi interface, go to Settings Auth modes and activate SAML for Administrators and get the following information:
Identifier (Entity ID) : https://admin.cloudi-fi.net/ ( From Cloudi-Fi = Marked A click on copy icon )
Reply URL (Assertion Consumer Service URL): Copy and paste the linkback URL or type https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin// ( From Cloudi-Fi = Marked B click on copy icon )
Sign-on URL : https://admin.cloudi-fi.net/sso/ ( From Cloudi-Fi = Marked C click on copy icon )
The company hash is visible on your Cloudi-Fi account, go to Setting Company Account Cloudi-Fi Public Key
Set up SAML Single Sign-On
1. Add a SAML Configuration
From the AD FS management tool, right-click AD FS from the left panel and click Edit Federation Service Properties and get the value of Federation Service identifier.
Return to Cloudi-Fi interface Settings Auth modes and paste the value in the Login Endpoint field.
From the AD FS management tool, go to AD FS Service Endpoints tab, search for and copy the URL path with a Type of SAML 2.0/WS-Federation.
Go back to Cloudi-Fi interface Settings Auth modes and paste the path prefixing it with your server URL (ex https:///adfs/ls) into the Entity ID field.
From the AD FS management tool, go to AD FS Service Certificates, click right the certificate under Token-signing, and click on View Certificate. From the Certificate dialog, go to the Details tab and click on Copy to File.
The Certificate export wizard opens, click Next and export the Certificate to Base-64 encoded X.509 (.CER)
Open the exported certificate file and copy (without "Begin Certificate" and "End certificate" markers). Go back to the Cloudi-Fi interface and paste into the field IdP Signing Certificate (x509 format)
2. Create a relaying party trust
From the AD FS management tool, expand AD FS from the left panel, select Relying Party Trusts, and click Add Relying Party Trust.
Select Claims Aware and then select Enter data about relying party manually and click Next.
Give it a name and a description, and then click Next.
On the Configure certificate, add the Cloudi-Fi SAML public certificate
On the Configure URL, select Enable support for the SAML 2.0 WebSSO protocol.
From Cloudi-Fi, copy Identifier (Entity ID) and paste the value into Relying party SAML 2.0 SSO Service URL field, and click Next.
From the Cloudi-Fi interface, get the Reply URL (Assertion Consumer Service URL) and paste the value into Relying party trust identifier field and click add, then Next.
From the access control policy lists, select Permit everyone and click Next.
Check the parameters on the Ready to Add Trust tab and click Next, and then Close the Wizard.
3. Edit claim rules
From the AD FS management tool, go to Relying Party Trust, right-click on the relying party trust that you recently added and click Edit Claim Issuance Policy, and then add a new Rule.
Select Send LDAP Attributes as Claims
Give it a name and add the Mapping as follows.
From the Cloudi-Fi interface, configure as follows:
Email Attribute name: Claim name corresponding to the email value.
Enable Administrator auto-provisioning and type the Claim name corresponding to the profile (or group) in the SAML Profile Attribute field.
The Group or profile value MUST be mono-valued.
