Describes how to configure your Aruba Instant On to enable Cloudi-Fi's captive portal.

This setup consists of below main parts:

1. Get Cloudi-Fi required information

2. SSID Configuration

1) Get Cloudi-Fi required information

Location URL: this URL will be used to configure an External Captive Portal

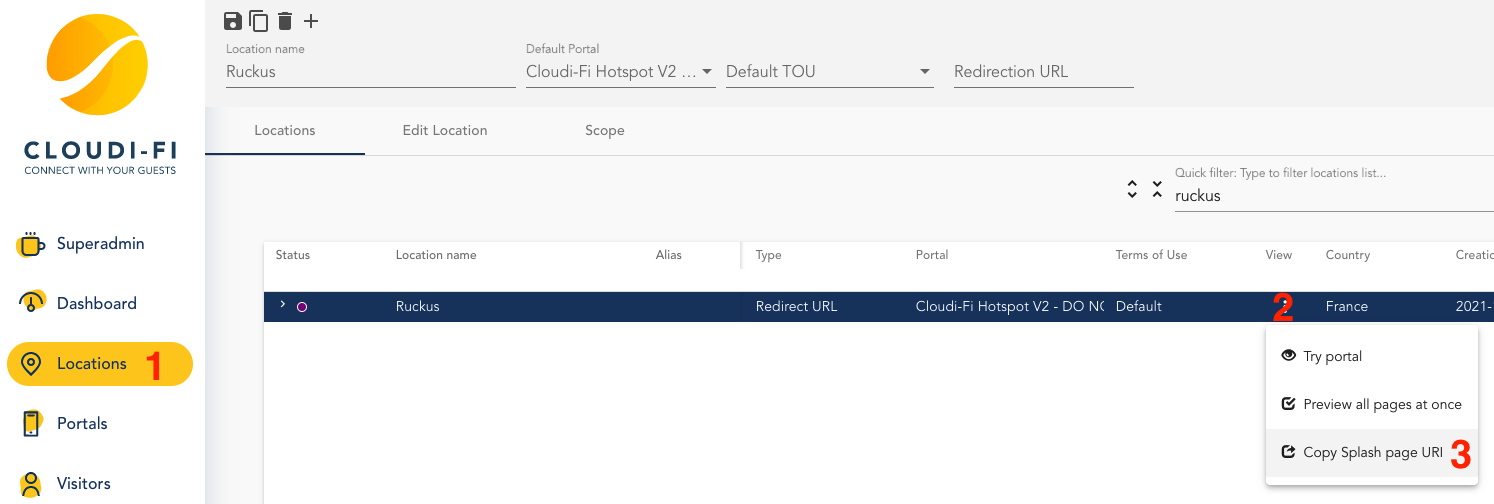

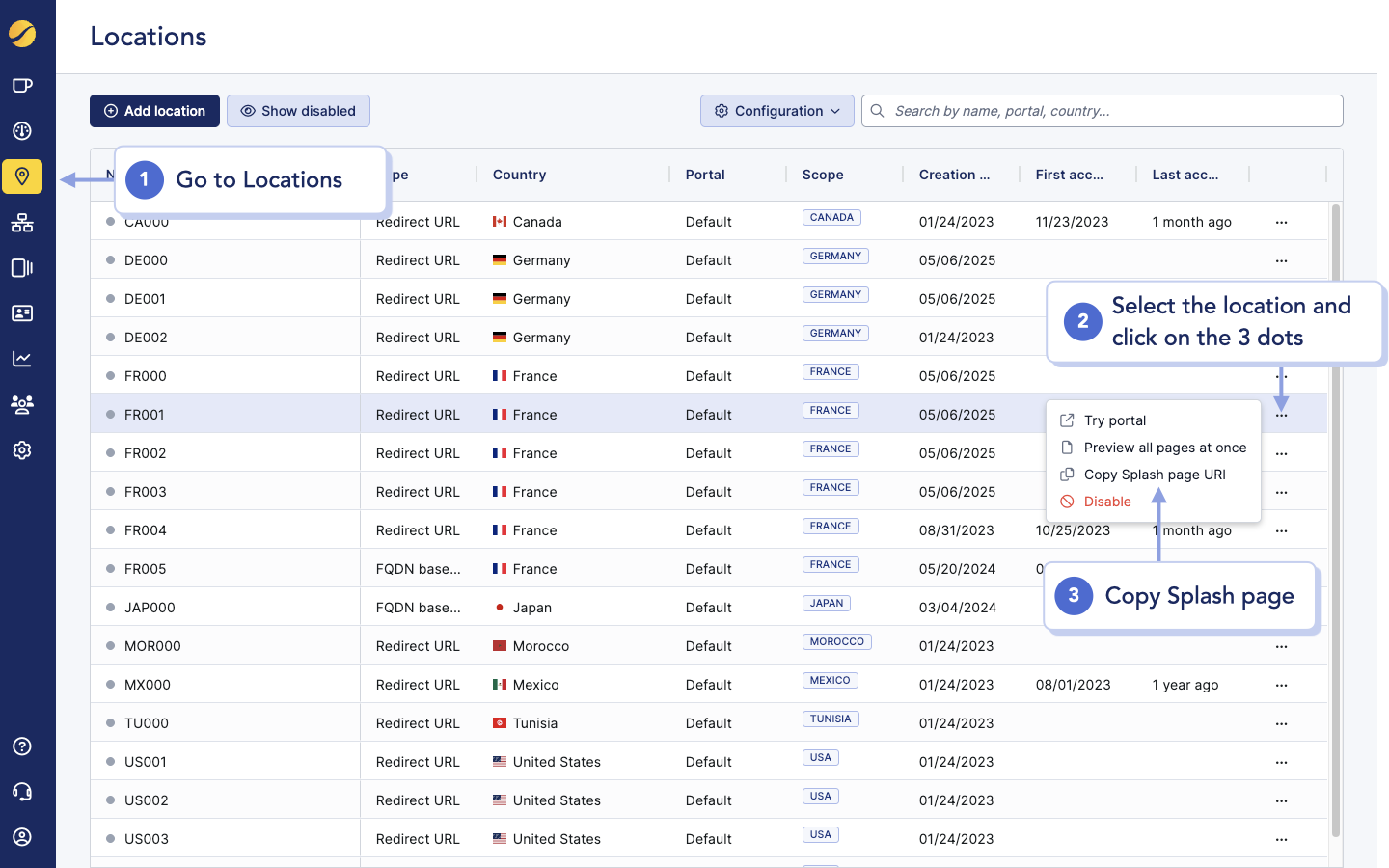

• Cloudi-Fi administration Locations Click on the menu button of the location and select Copy Splash page URI.

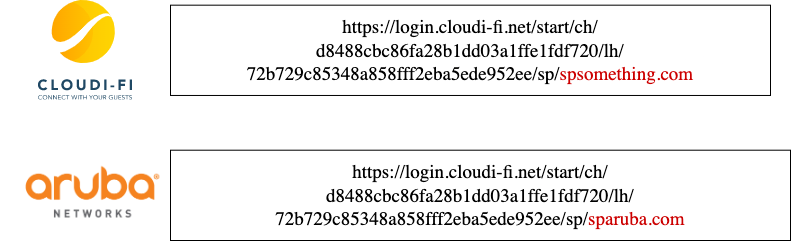

• Transform the URI as follows

Radius Server Information

• Use the chatbot interface and ask for the Radius IPs and secret

2) SSID Configuration

Click the Networks icon and Add a new One. Configure as following :

• Network Name : YOUR_SSID_NAME

• Network Type : Guest

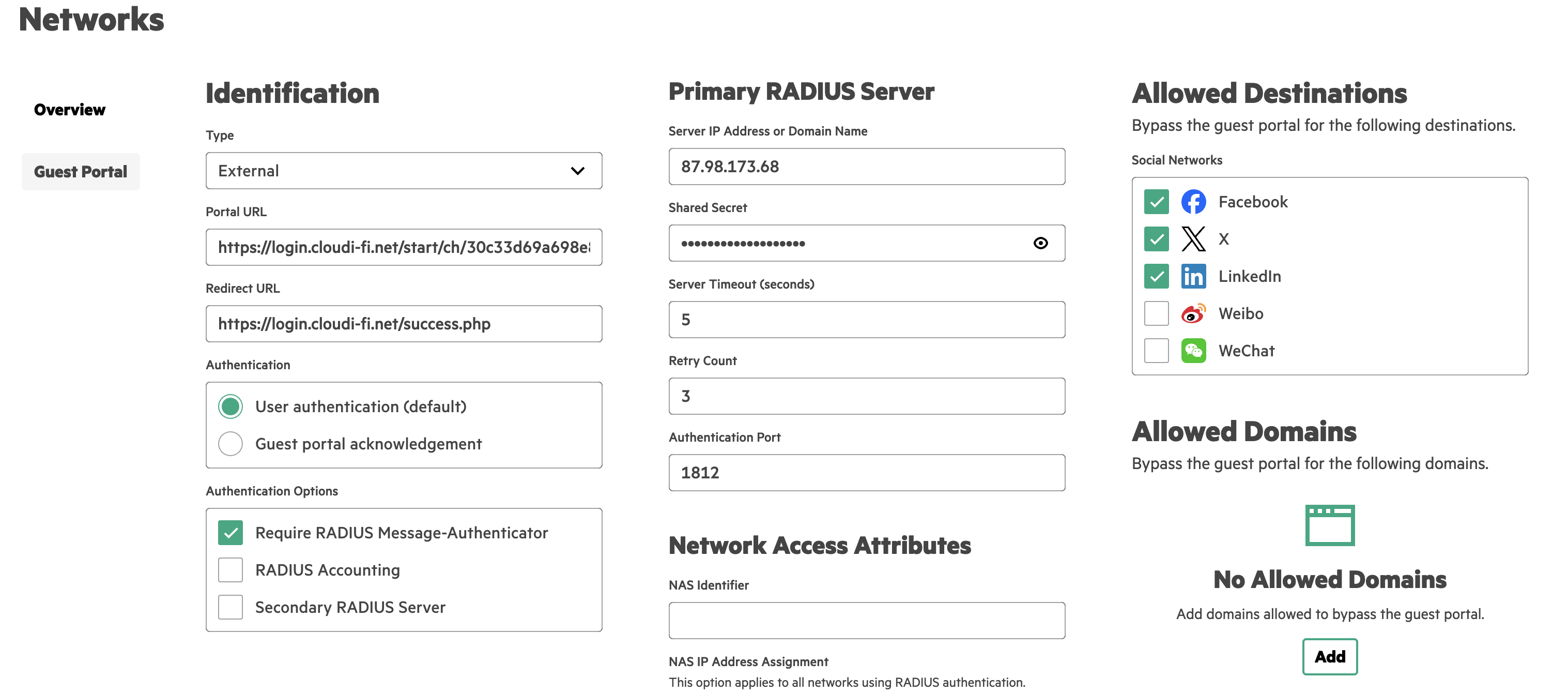

Save to confirm. Next, click on Customize Guest Portal and configure as follows:

• Portal type: External

• Server URL: Splash page URI from Cloudi-Fi interface

• Redirect URL: https://login.cloudi-fi.net/success.php

• Whitelisted domains :

  • login.cloudi-fi.net

  • If you are using social networks, you will find the domains in this article.

• Send RADIUS Accounting: Optional

• Primary RADIUS Server IP : Radius list

• Primary RADIUS Server Secret : Provided by Cloudi-Fi

• Secondary RADIUS Server : Radius list

• Secondary RADIUS Server Secret: Provided by Cloudi-Fi

The configuration is complete.
