Describes how to configure your Aruba Instant Access points to forward Syslogs to Cloudi-Fi.
Please check our documentation on configuring the Cloudi-Fi Captive portal with Aruba Instant.
Use case
The following sections provide step-by-step instructions for configuring the Aruba external syslog server to transfer your syslog to Cloudi-Fi.
Prerequisites
Before starting, ensure that you have the following prerequisites:
- Access to Cloudi-Fi's admin console
- Access to the Aruba
- Get Cloudi-fi's syslog server IP address
1. Insert Cloudi-Fi’s Syslog server’s IP address
Go to System Show advanced options Monitoring
Type Cloudi-Fi’s Syslog Server’s IP address
Select your Syslog Facility Levels according to your policy (Or debug by default)
Click on « OK »

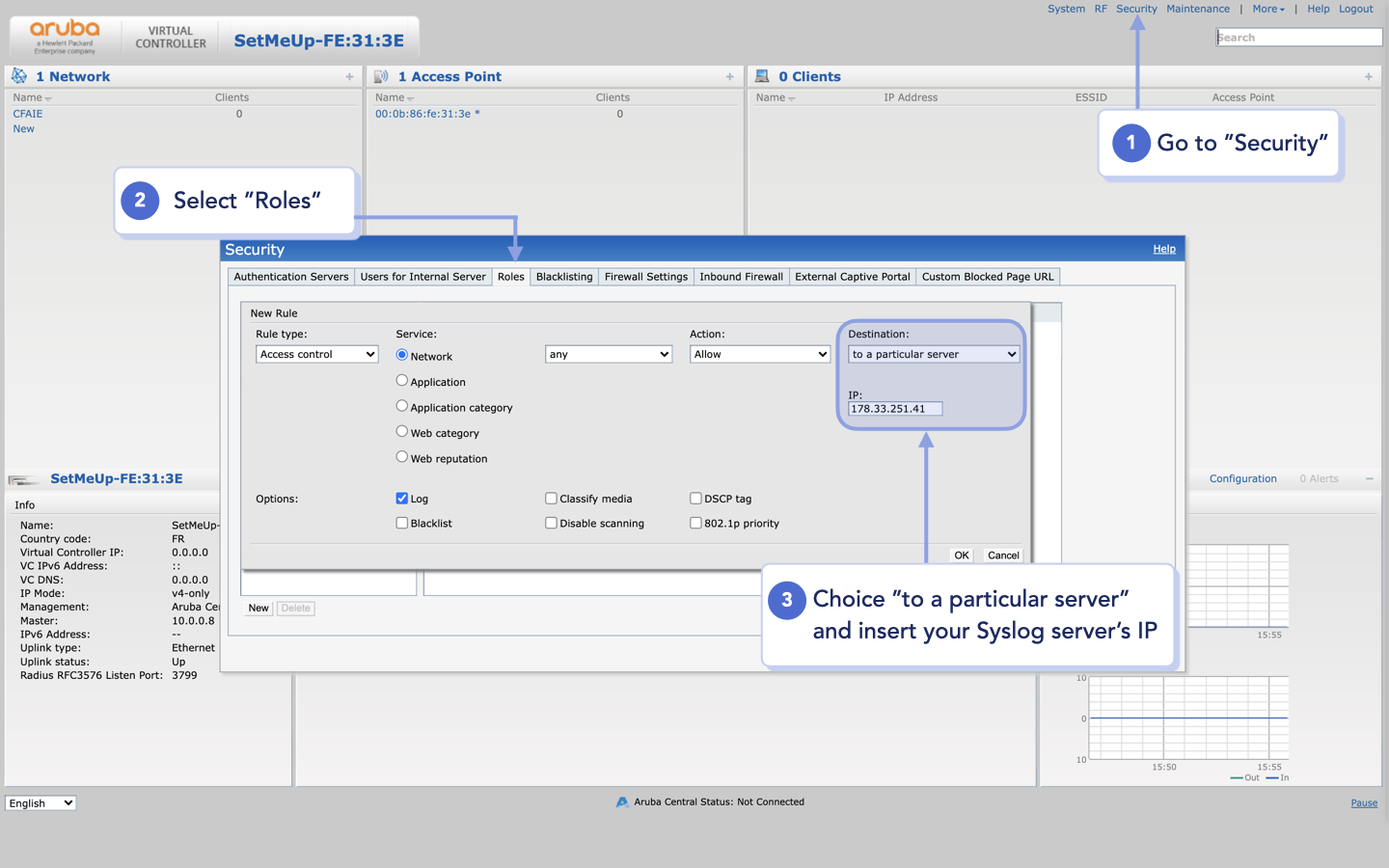

2. Edit the rule for PreAuth
Go to Security Roles
Rule type: Access control
Service: Network
Destination: to a particular server
IP: your Syslog server’s IP address
Options: Log

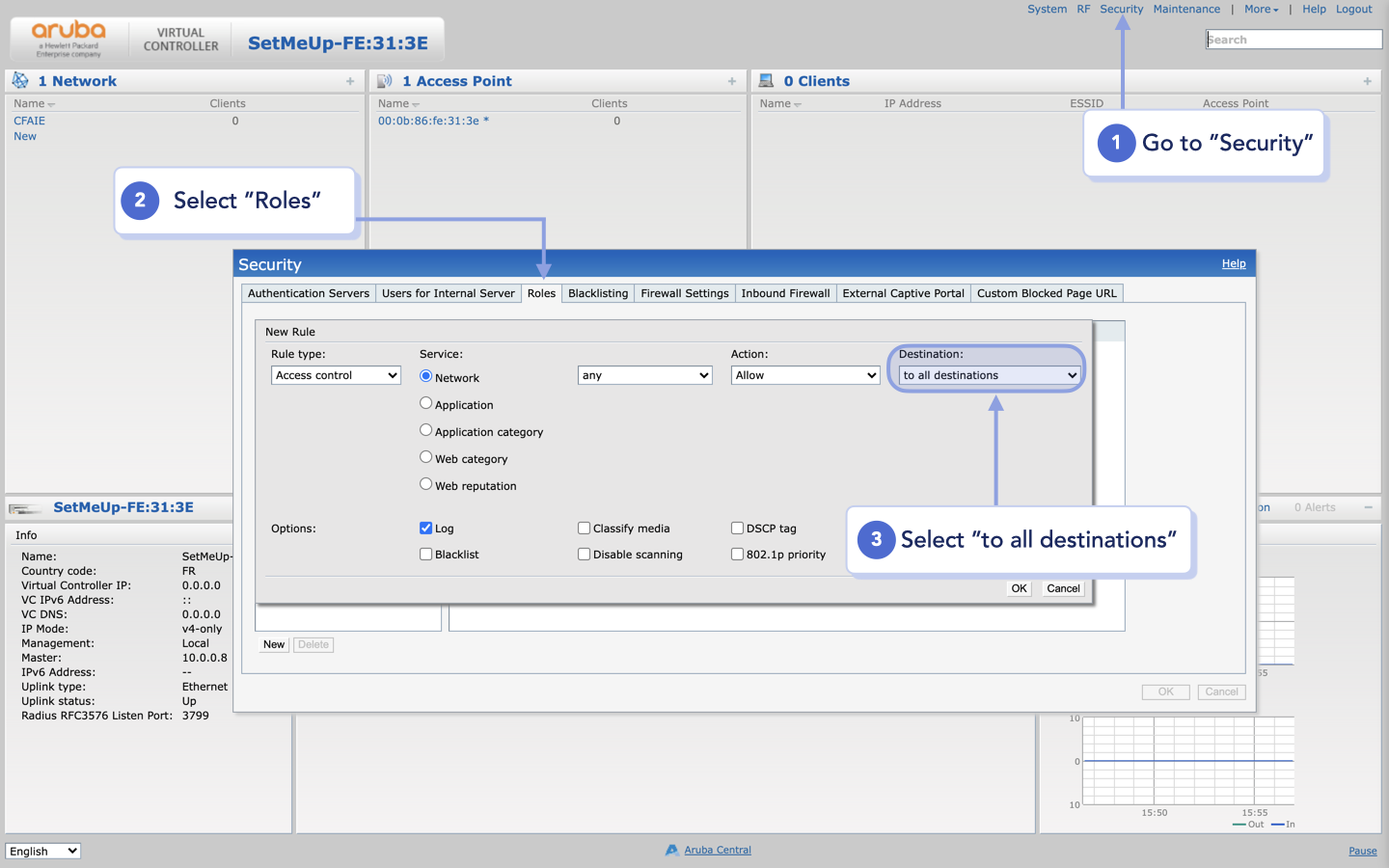

3. Edit the access role rules
Go to Security
Rule type: Access control
Service: Network
Action: Allow
Destination: to all destinations
Options: Log
Troubleshooting
If you have any issues, don't hesitate to get in touch with us - How to contact your support?
What’s next?
Please refer to this page for additional details regarding Aruba and Cloudi-Fi configurations.
