Here are step-by-step instructions for setting up SAML authentication for your Sponsors (in APAC, Australia) with Cloudi-Fi and Okta.

Use case

The following sections will provide step-by-step instructions to SAML authentication for your Sponsor (in APAC, Australia) with Cloudi-Fi and Okta.

Prerequisites

SAML URLs

Navigate to the Cloudi-Fi Admin user interface (UI)
Go to Configuration > Auth modes > Sponsor for China
Collect the necessary information

Linkback URL

https://portal-cn.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/************

***** is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account)

Cloudi-Fi Entity ID

https://portal-cn.cloudi-fi.net/

1. Create your Okta SAML application

Go to your Okta portal and switch to Classic UI mode.

Go to the Application section, and add a new application.

Click on Create a new Application Integration.

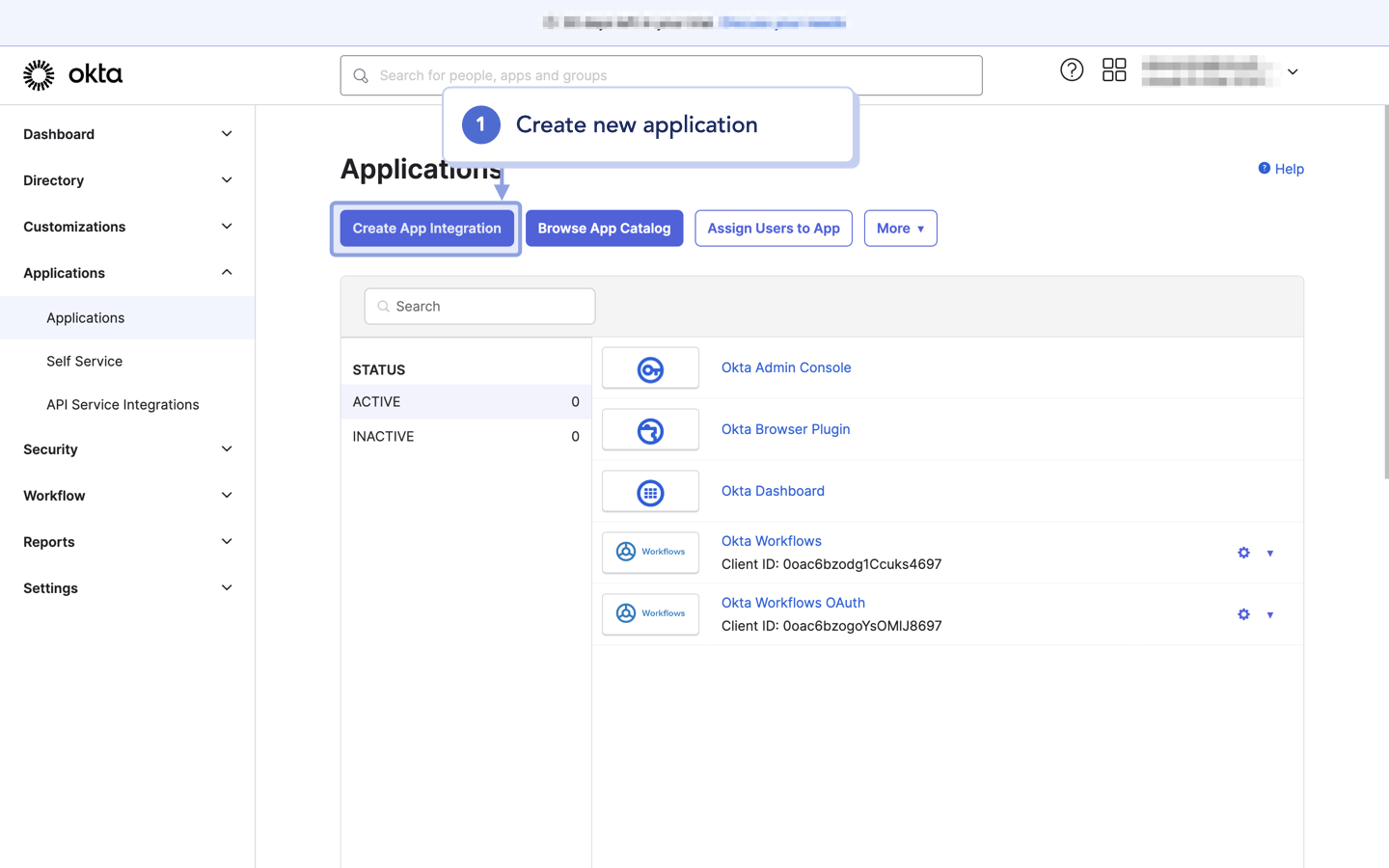

cloudi-fi_okta_saml_create a new application_1.png

Then, select SAML 2.0

cloudi-fi_okta_saml_create a new application_2.png

In the General Settings page, define your App name (for instance : Cloudi-Fi Guest SAML) and click on Next

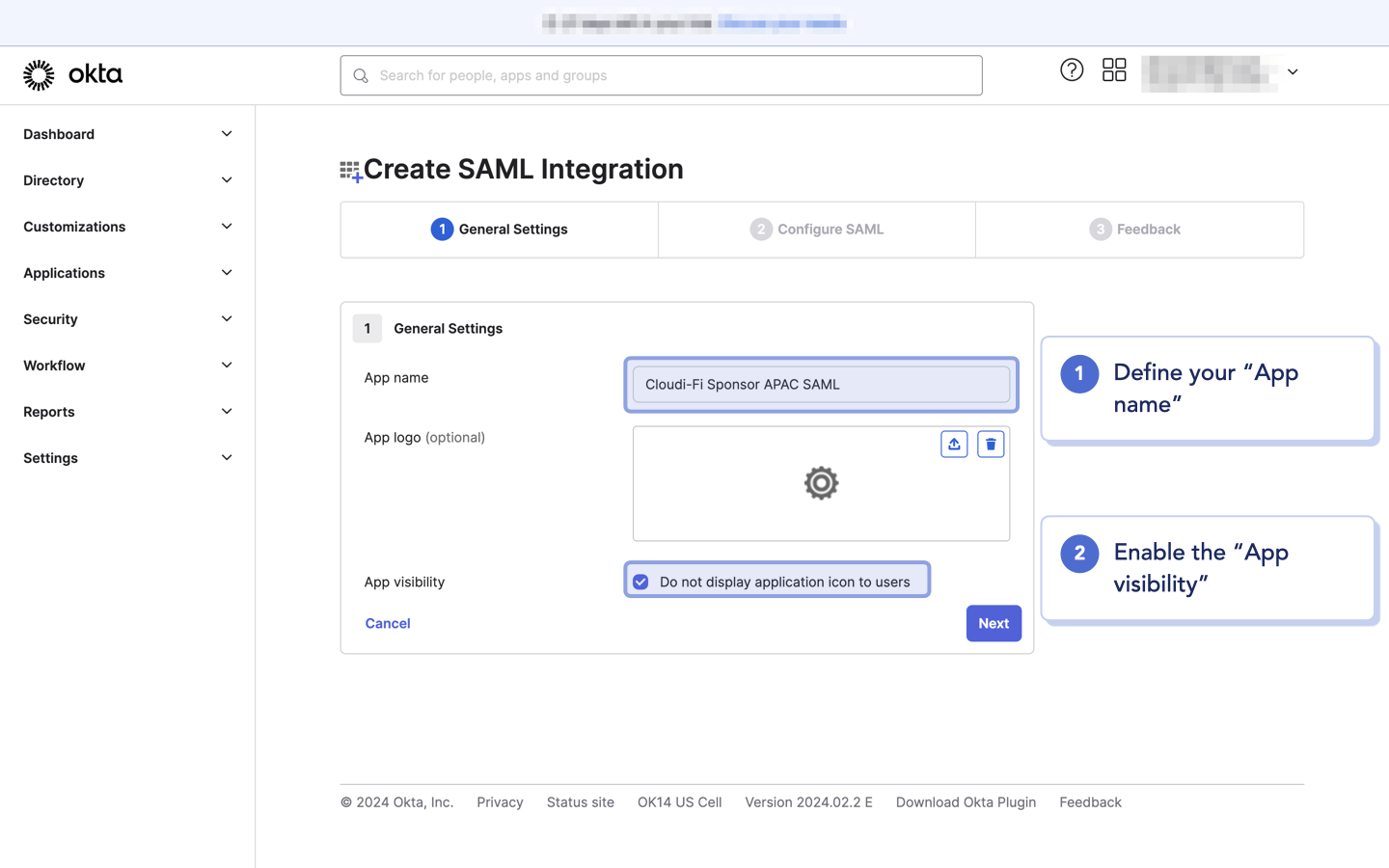

cloudi-fi_okta_saml_create a new application_general settings_sponsor_apac.png

In Configure SAML page

Linkback URL :
- ```
https://portal-cn.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>
```
- To find your <company_key> , go to the Cloudi-fi Admin interface, navigate to "Settings", then "Company Account"
Cloudi-Fi Entity ID :
- ```
https://portal-cn.cloudi-fi.net/
```

Name ID format : EmailAddress
Application username : Email
Update application username on : Create and update
Attribute Statement
- Name : mail
- Value : user.email

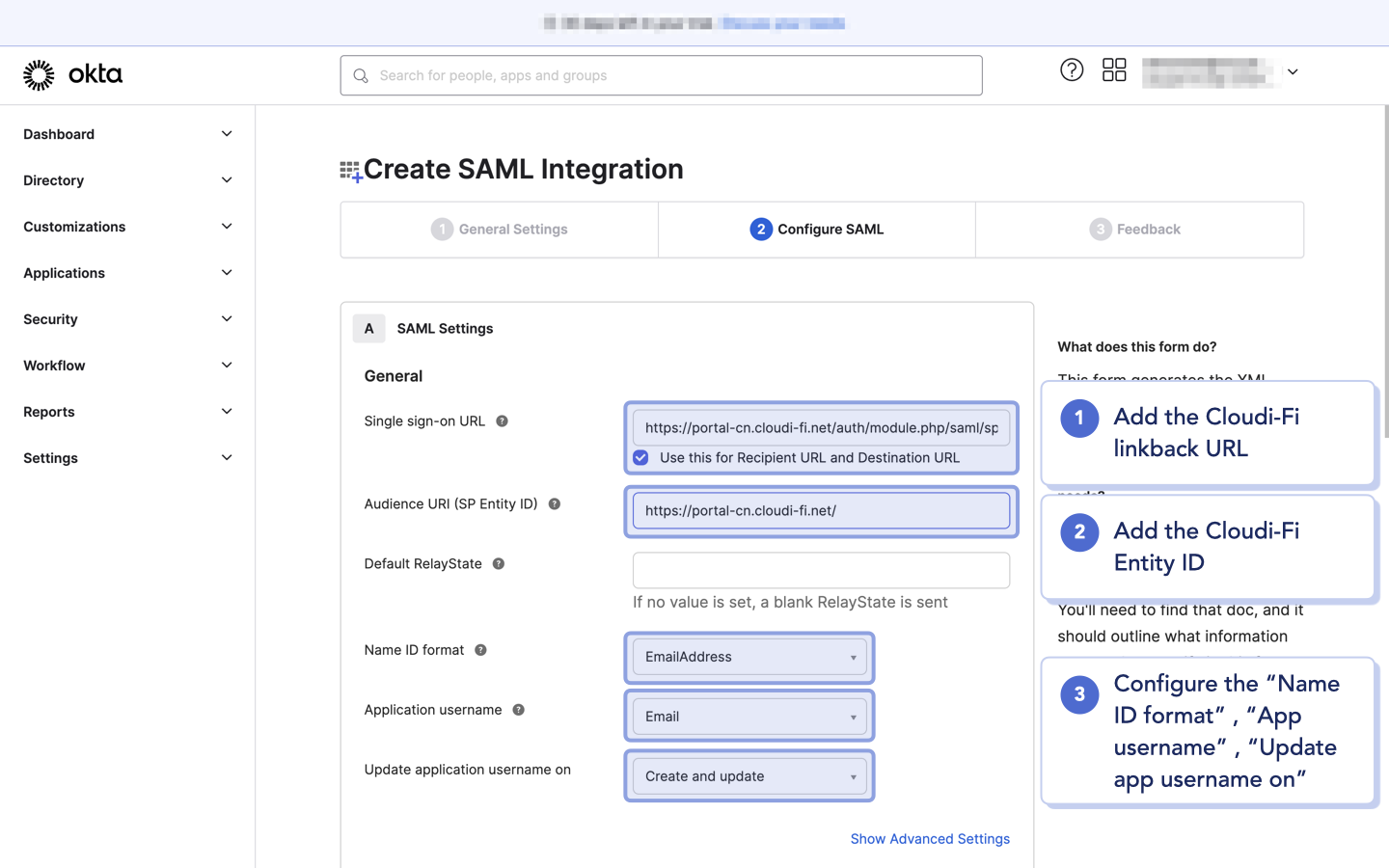

cloudi-fi_okta_saml_create a new application_sponsor_apac_configure SAML_1.png

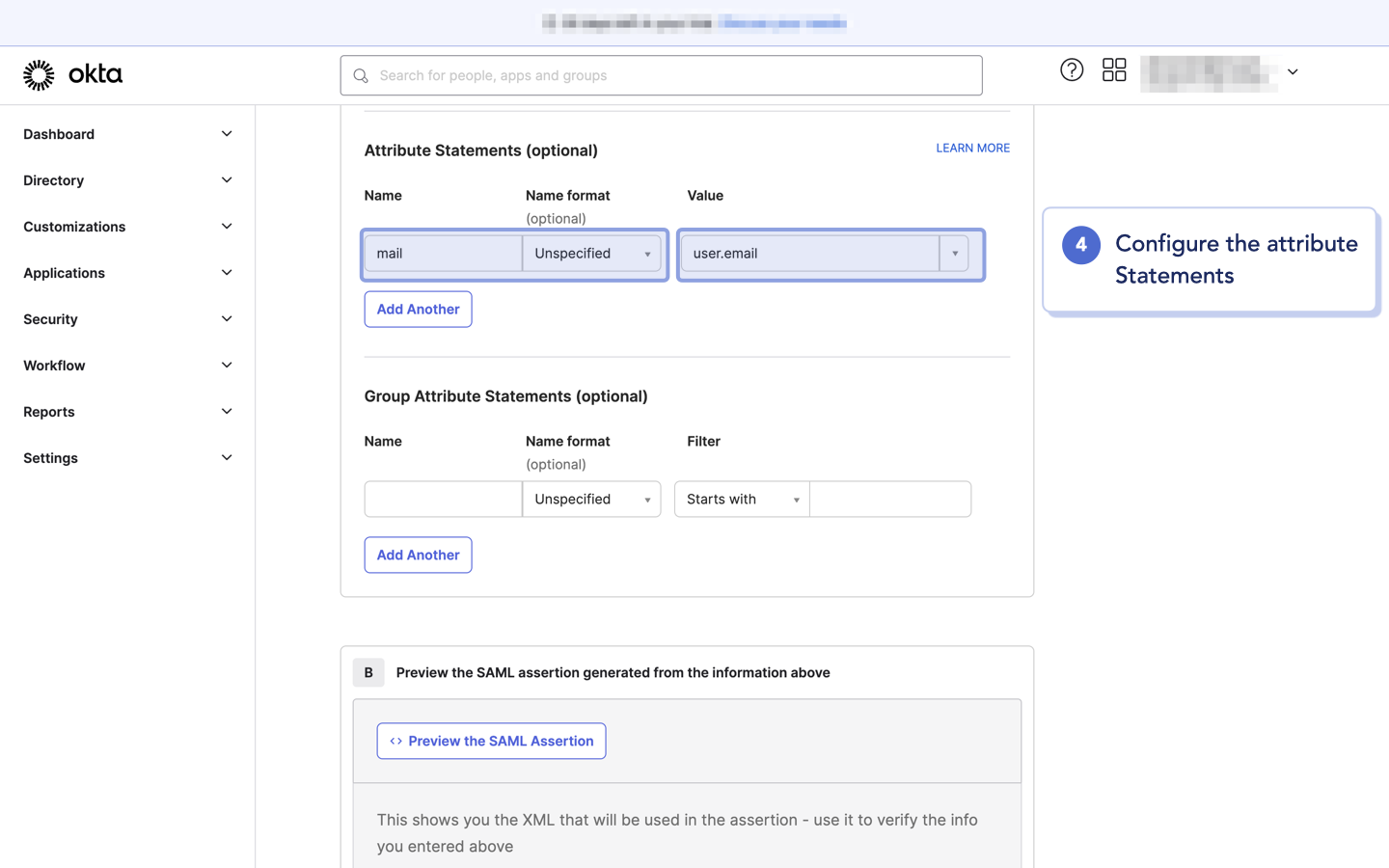

cloudi-fi_okta_saml_create a new application_configure SAML_2.png

In the Feedback page, click on Finish.

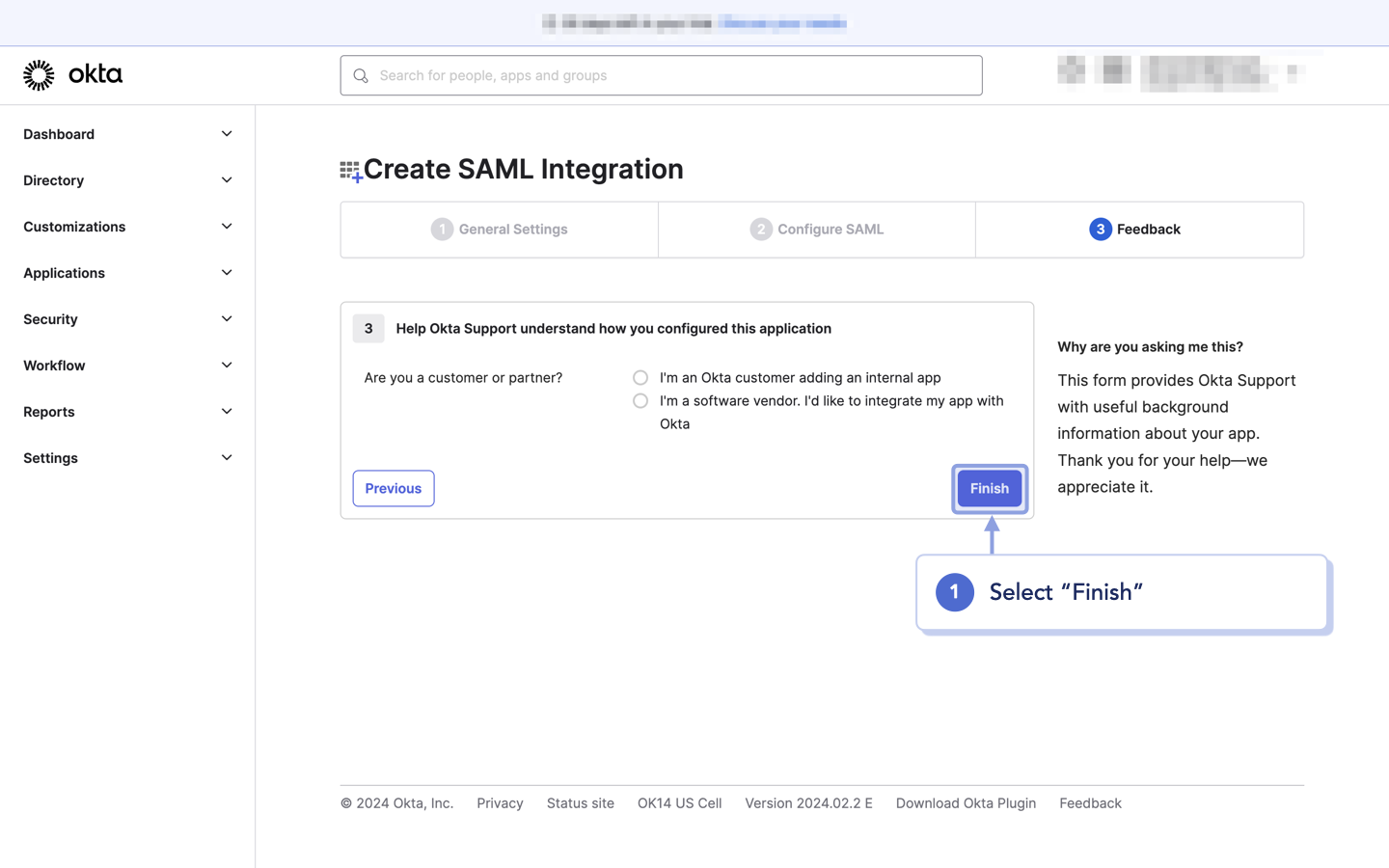

cloudi-fi_okta_saml_create a new application_feedback.png

Once the Cloudi-Fi application is created on Okta, click View SAML Setup Instructions to retrieve technical information for configuring the Cloudi-Fi portal.

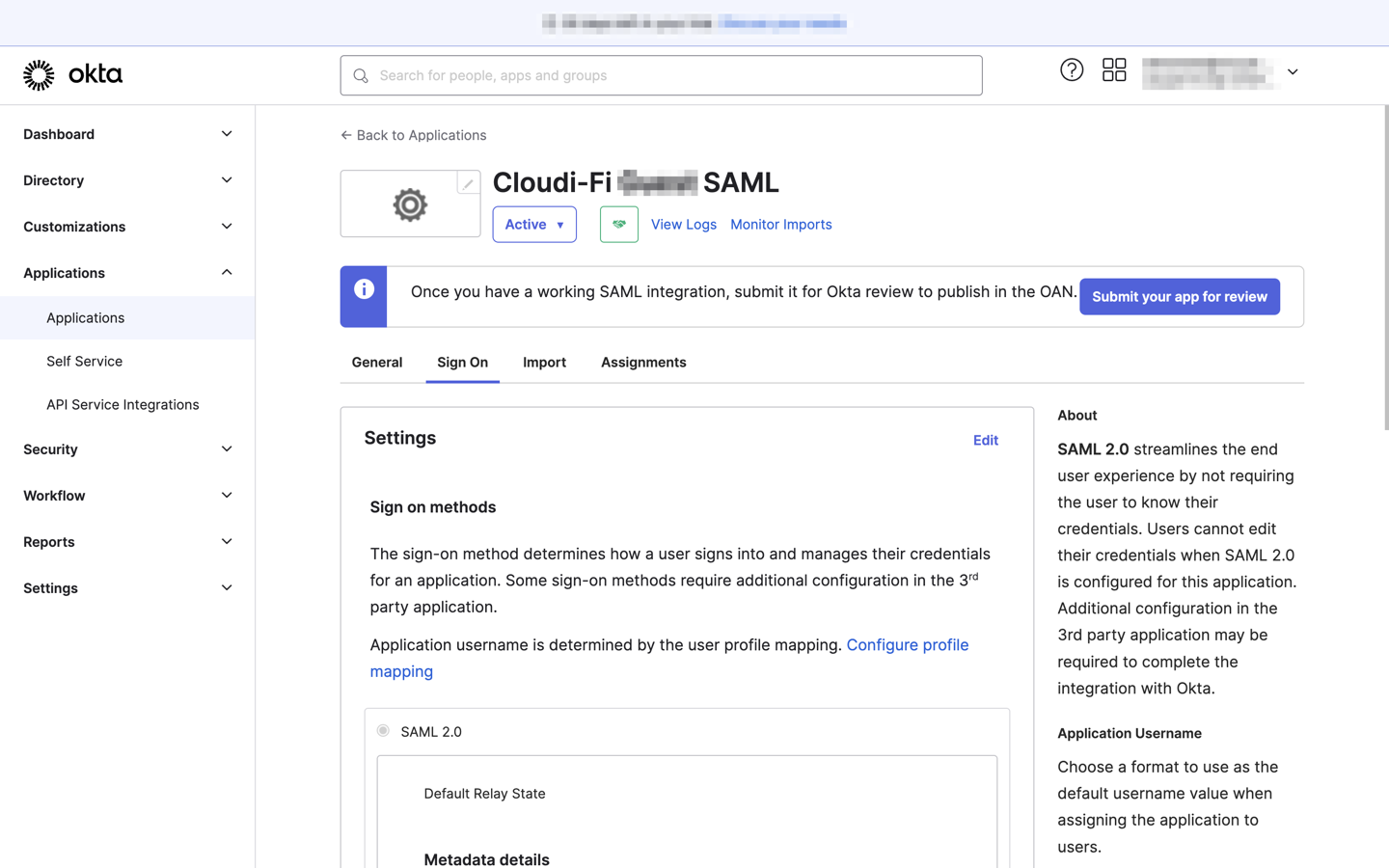

cloudi-fi_okta_saml_create a new application_end.png

cloudi-fi_okta_saml_create a new application_view SAML instructions_1.png

Here is the needed information :

Identity Provider Single Sign-On URL
Identity Provider Issuer
X.509 Certificate

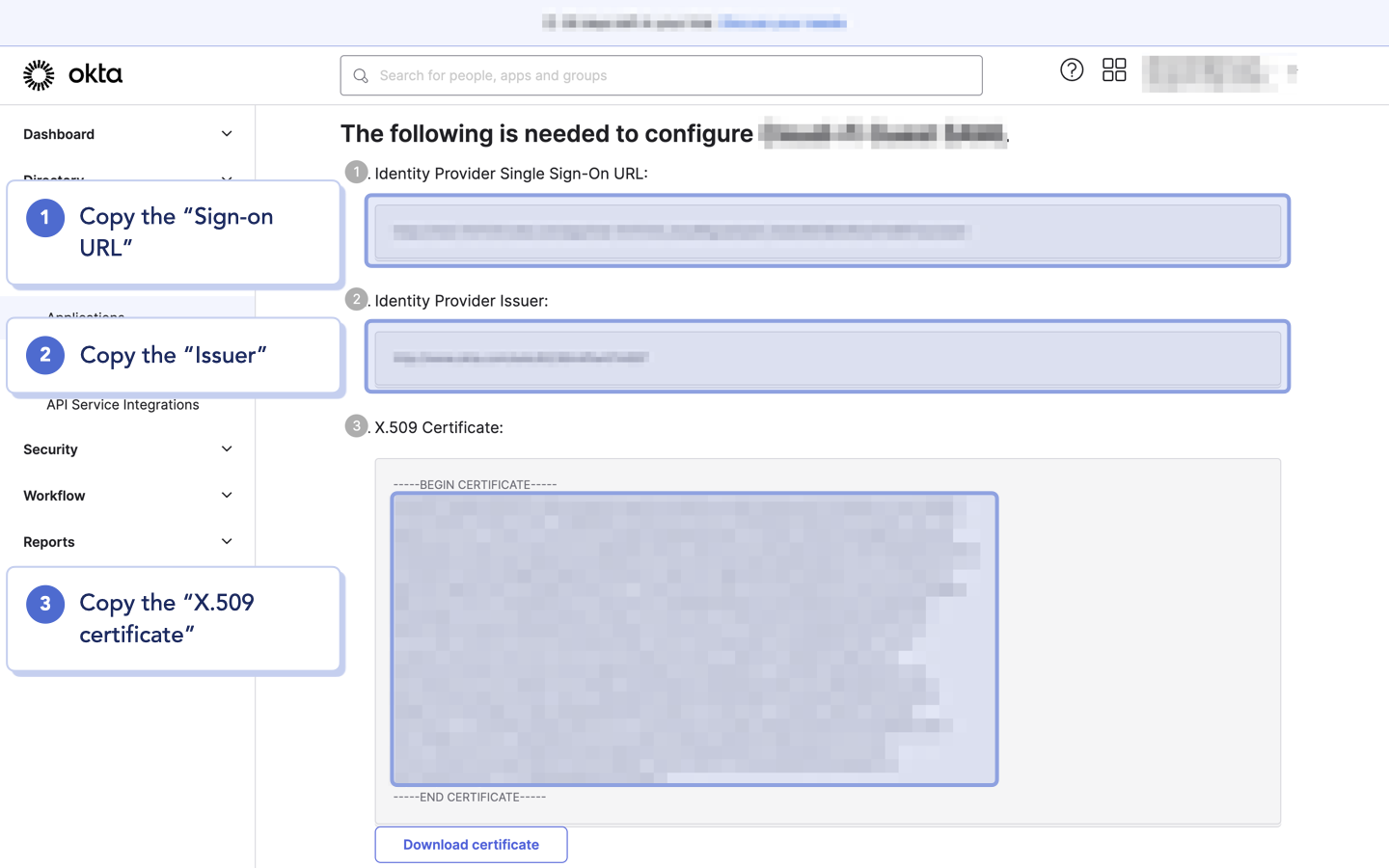

cloudi-fi_okta_saml_create a new application_view SAML instructions_2.png

2. Cloudi-Fi configuration

To start step 2, make sure you have all of this information

Attributes_name (in Okta)	Attributes_name (in Cloudi-Fi)	Details
Single sign-on URL	Linkback URL	https://portal-cn.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>
SP Entity ID	Cloudi-Fi Entity ID	https://portal-cn.cloudi-fi.net/
Identity Provider Issuer	IdP EntityID	http://www.okta.com/*********
Identity Provider Signle Sign-On URL	IdP Endpoint	https://****/app//***/sso/saml
X.509 Certificate	IDP Signing Certificate (X509 (Base64)
Attribute Statements / Name	Email_address Claims	mail

Navigate to the Cloudi-Fi Admin user interface (UI)

Access Configuration > Auth modes > Sponsor for China

Enter the required values into the respective fields

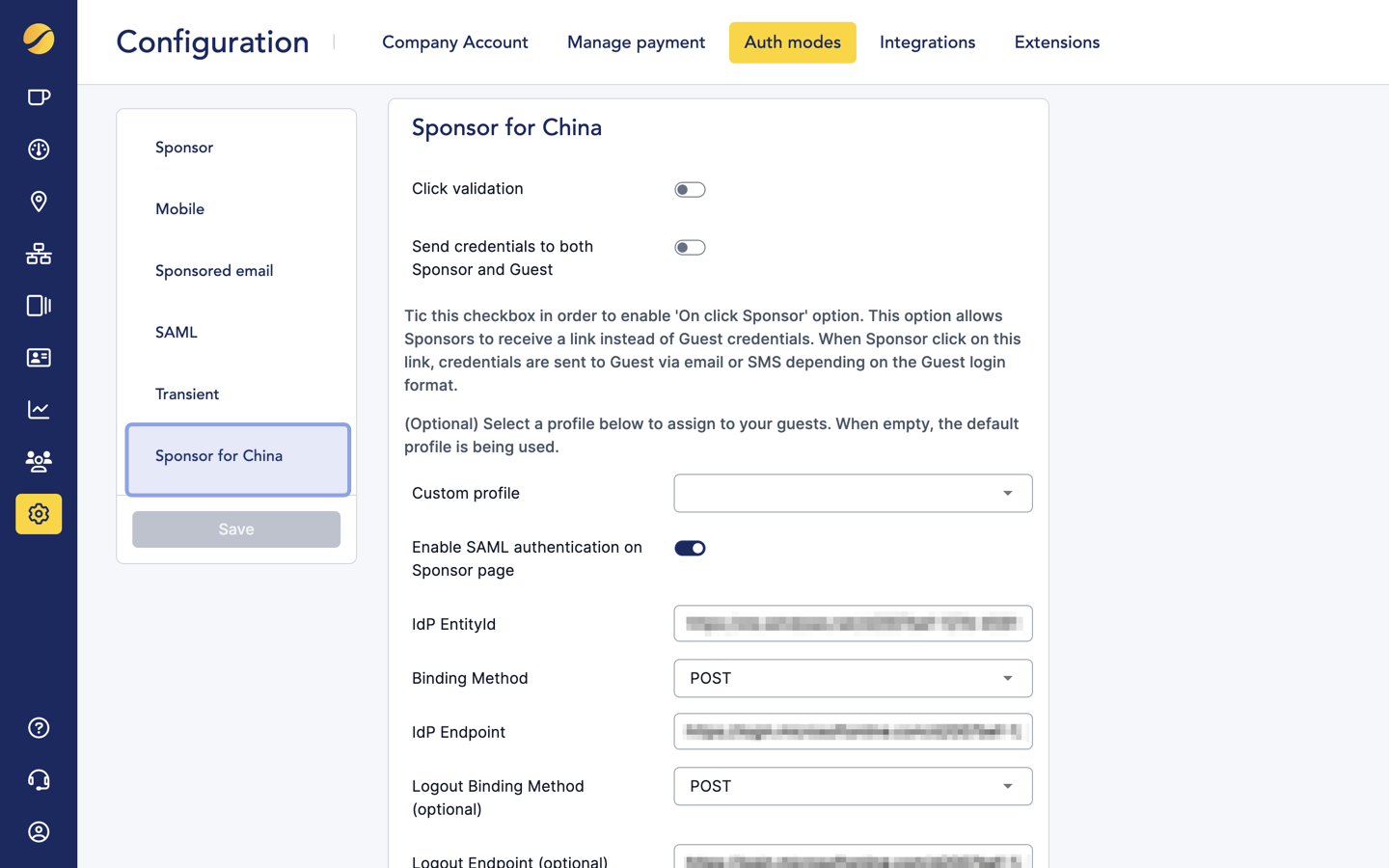

cloudi-fi_admin_saml for sponsor_APAC_okta_configuration_1.png

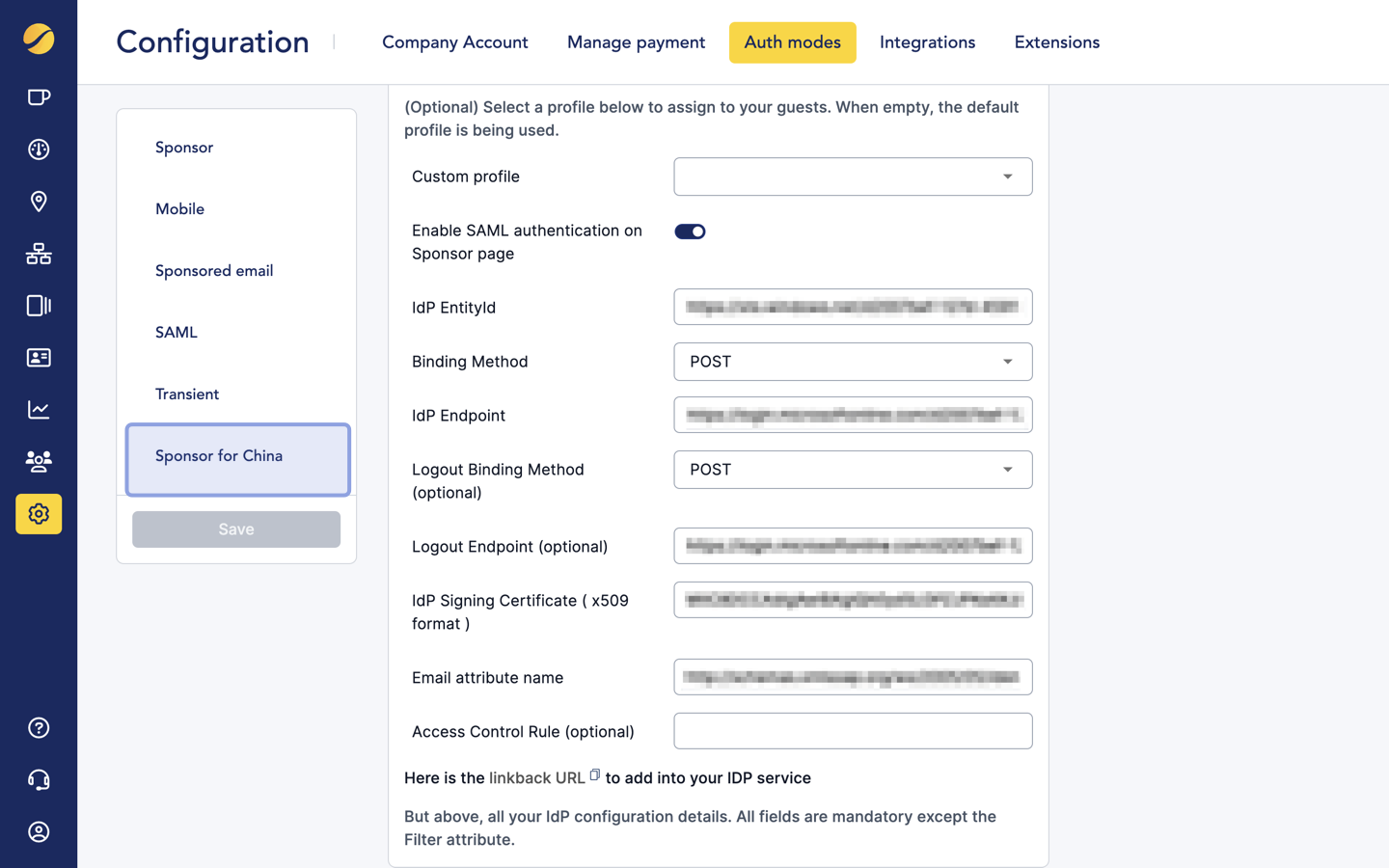

Fill out the form as described below with details previously retrieved on Okta :

IdP EntityId : Identity Provider Issuer
Binding Method : POST
IdP Endpoint : Identity Provider Single Sign-On URL
Logout Binding Method : POST
IdP Signing Certificate : X.509 Certificate without "Begin Certificate" and "End certificate" markers
Email attribute name : mail

Finally, click on Save

Troubleshooting

Okta error message

A Sponsor_administrator has access to the application, and is redirected to Okta authentication Page. He fills out his (address and password) and Signs. Then, he is redirected to an Okta Error Page.

Please replay the process and perform an HTTP capture (Perform a Web Request capture in the web browser) and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?)

What's Next ?

Congratulations on enabling SAML authentication with Okta for your Sponsor_administrators located in (APAC, Australia).
