How to set up SAML authentication for your Sponsors with Okta – Cloudi-Fi Knowledge Base

Step-by-step instructions to set up a SAML authentication for your Sponsors with Cloudi-Fi and Okta.

Use case

The following sections will provide step-by-step instructions to SAML authentication for your Sponsor with Cloudi-Fi and Okta.

Prerequisites

SAML URLs

Navigate to the Cloudi-Fi Admin user interface (UI)
Go to Configuration > Auth modes > Sponsor
Collect the necessary information

Linkback URL

https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/************

***** is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account)

Cloudi-Fi Entity ID

https://portal.cloudi-fi.net/

1. Create your Okta SAML application

Go to your Okta portal and switch to "Classic UI" mode.

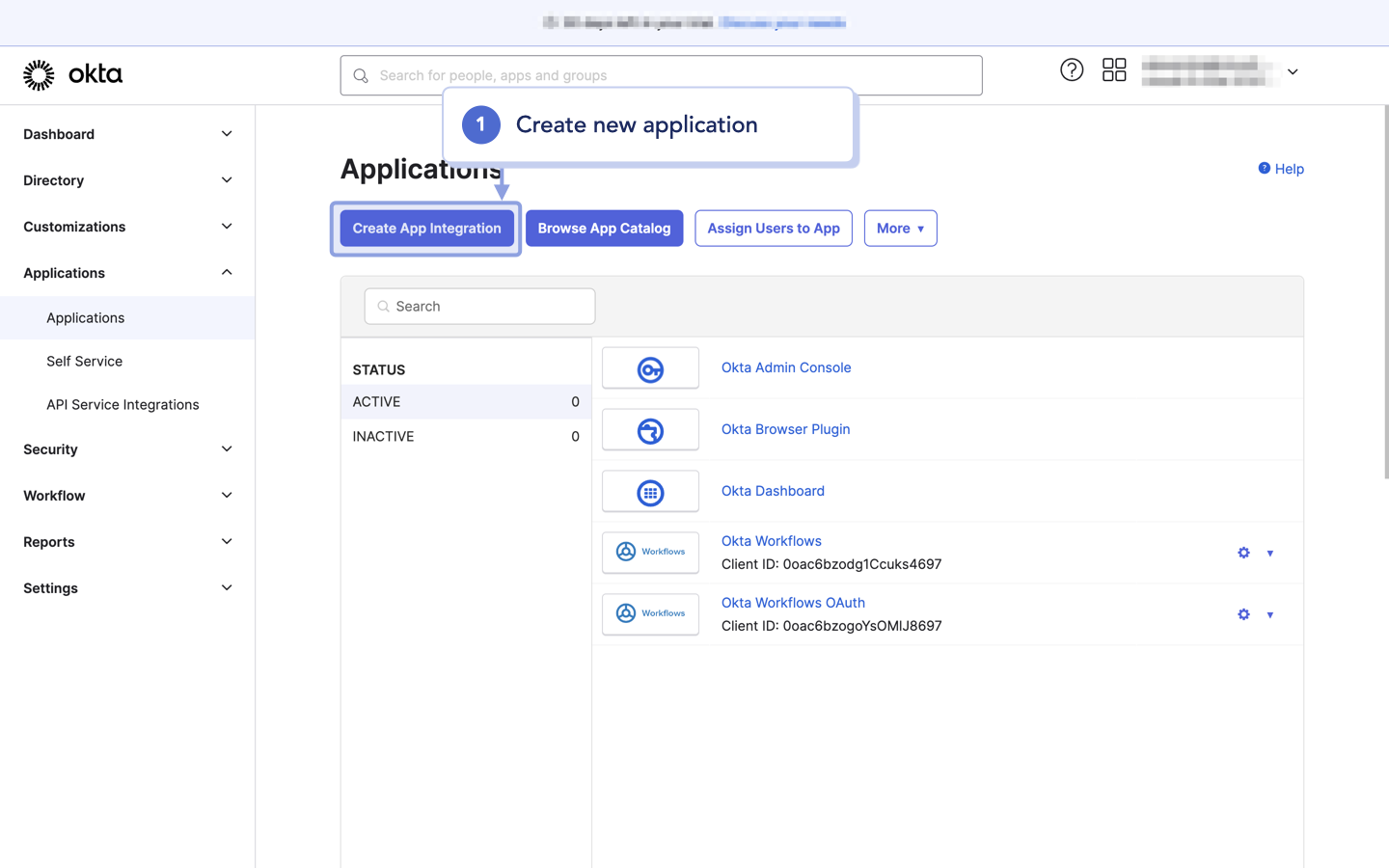

Go to the Application section, and add a new application.

Click on Create a new Application Integration.

cloudi-fi_okta_saml_create a new application_1.png

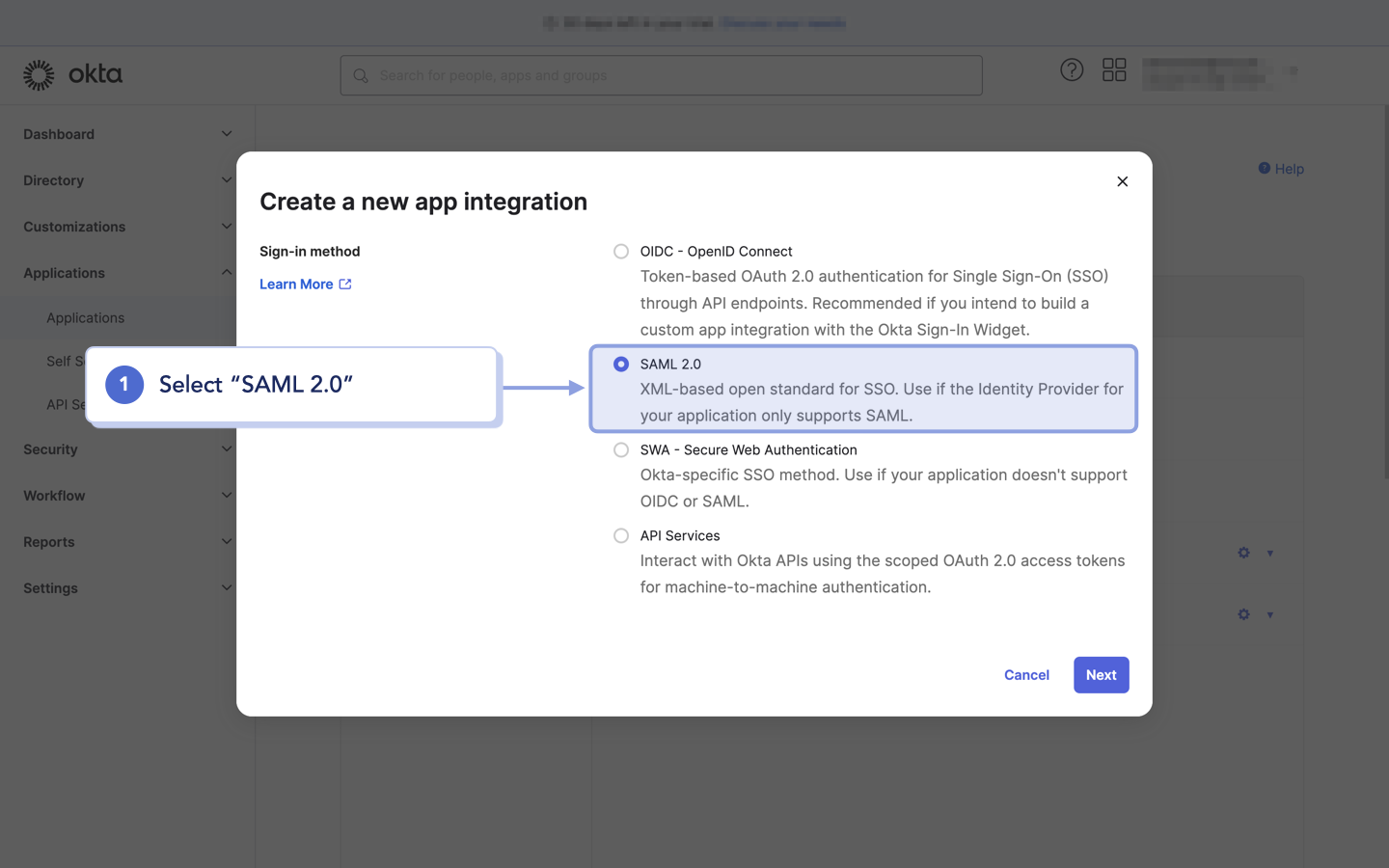

Then, select SAML 2.0

cloudi-fi_okta_saml_create a new application_2.png

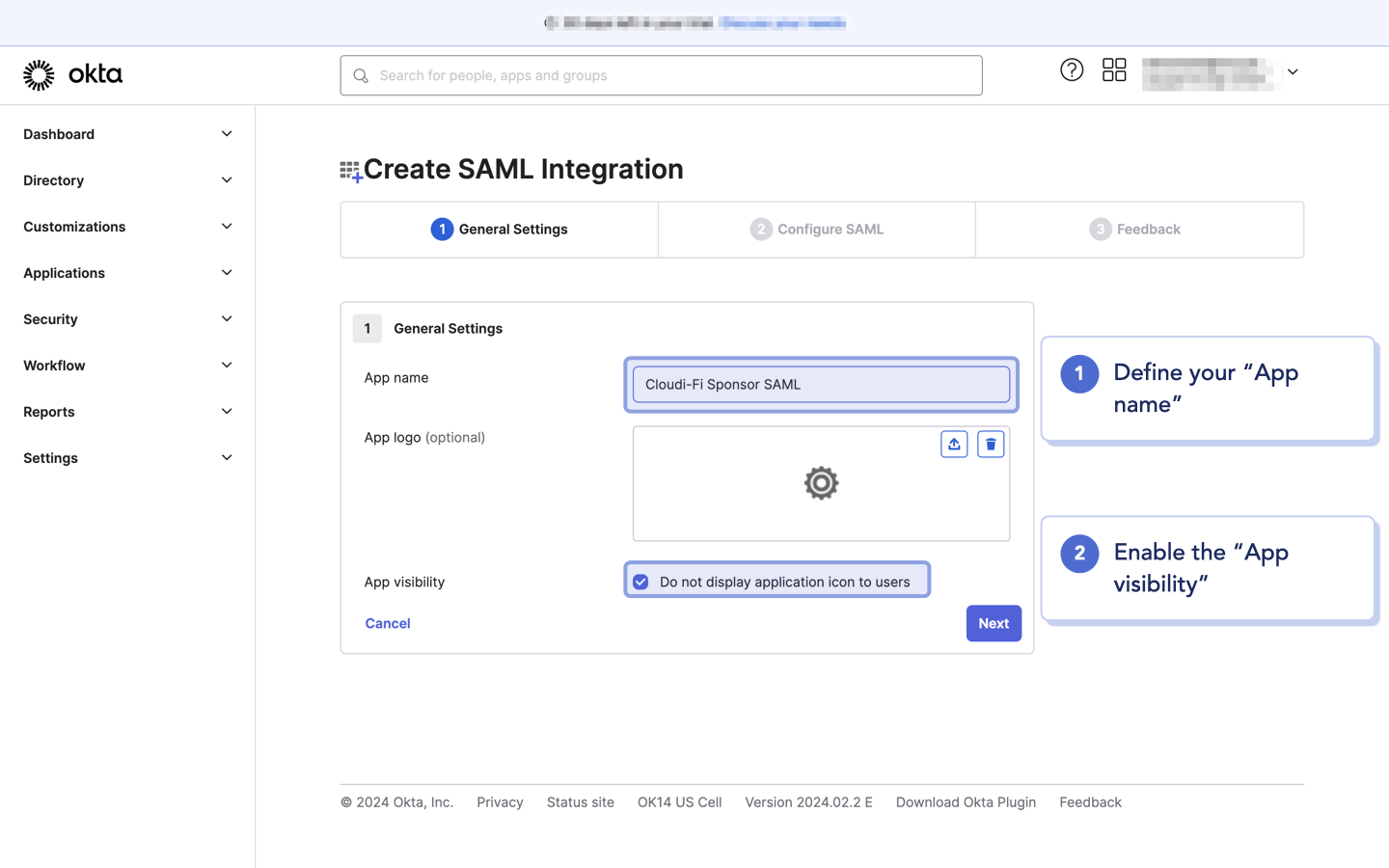

In the General Settings page, define your App name (for instance : Cloudi-Fi Guest SAML) and click on Next

cloudi-fi_okta_saml_create a new application_general settings_sponsor.png

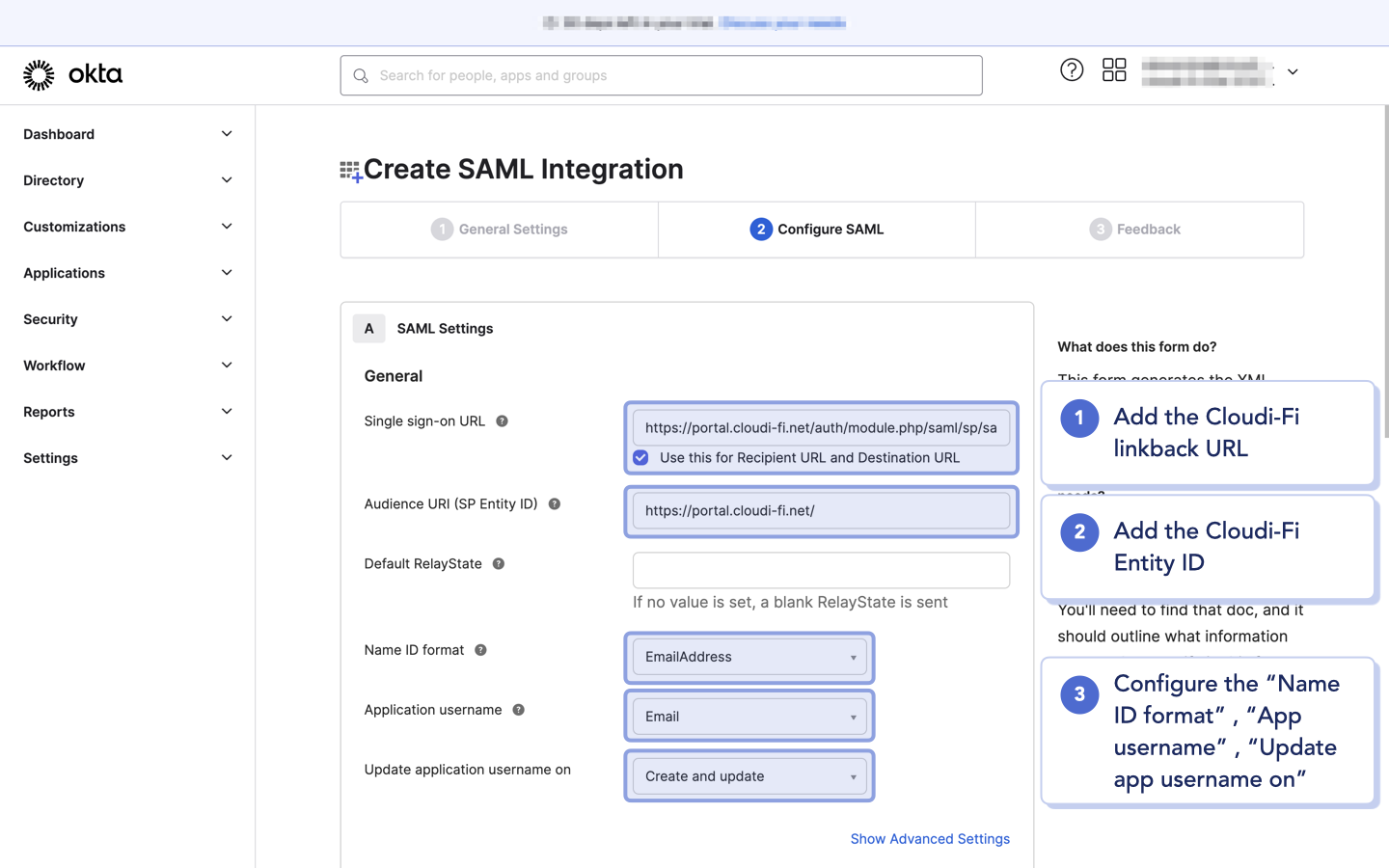

In Configure SAML page

Linkback URL :
- ```
https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>
```
- To find your <company_key> , go to the Cloudi-fi Admin interface > Settings > Company Account.
Cloudi-Fi Entity ID :
- ```
https://portal.cloudi-fi.net/
```

Name ID format : EmailAddress
Application username : Email
Update application username on : Create and update

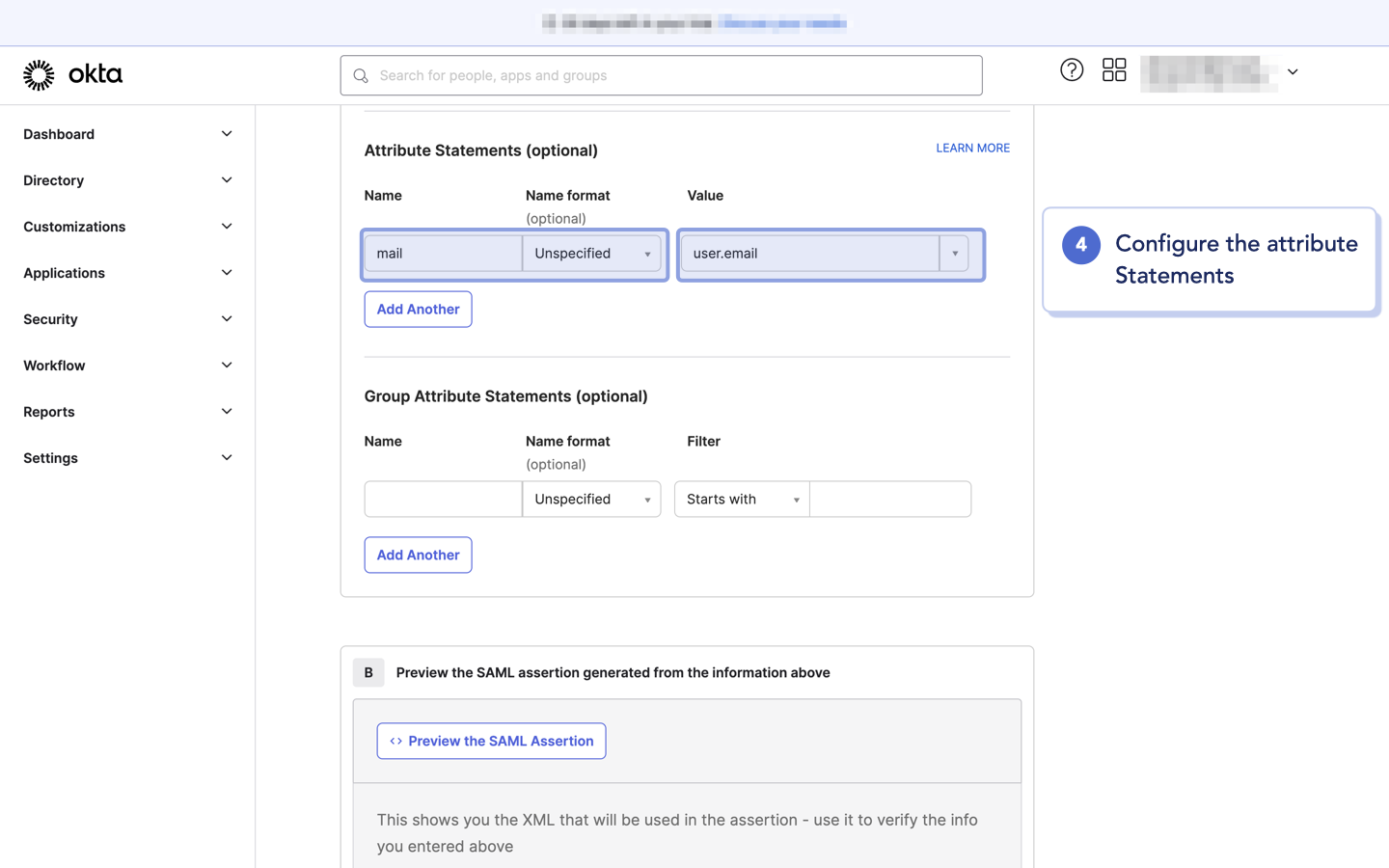

Attribute Statement
- Name : mail
- Value : user.email

cloudi-fi_okta_saml_create a new application_sponsor_configure SAML_1.png

cloudi-fi_okta_saml_create a new application_configure SAML_2.png

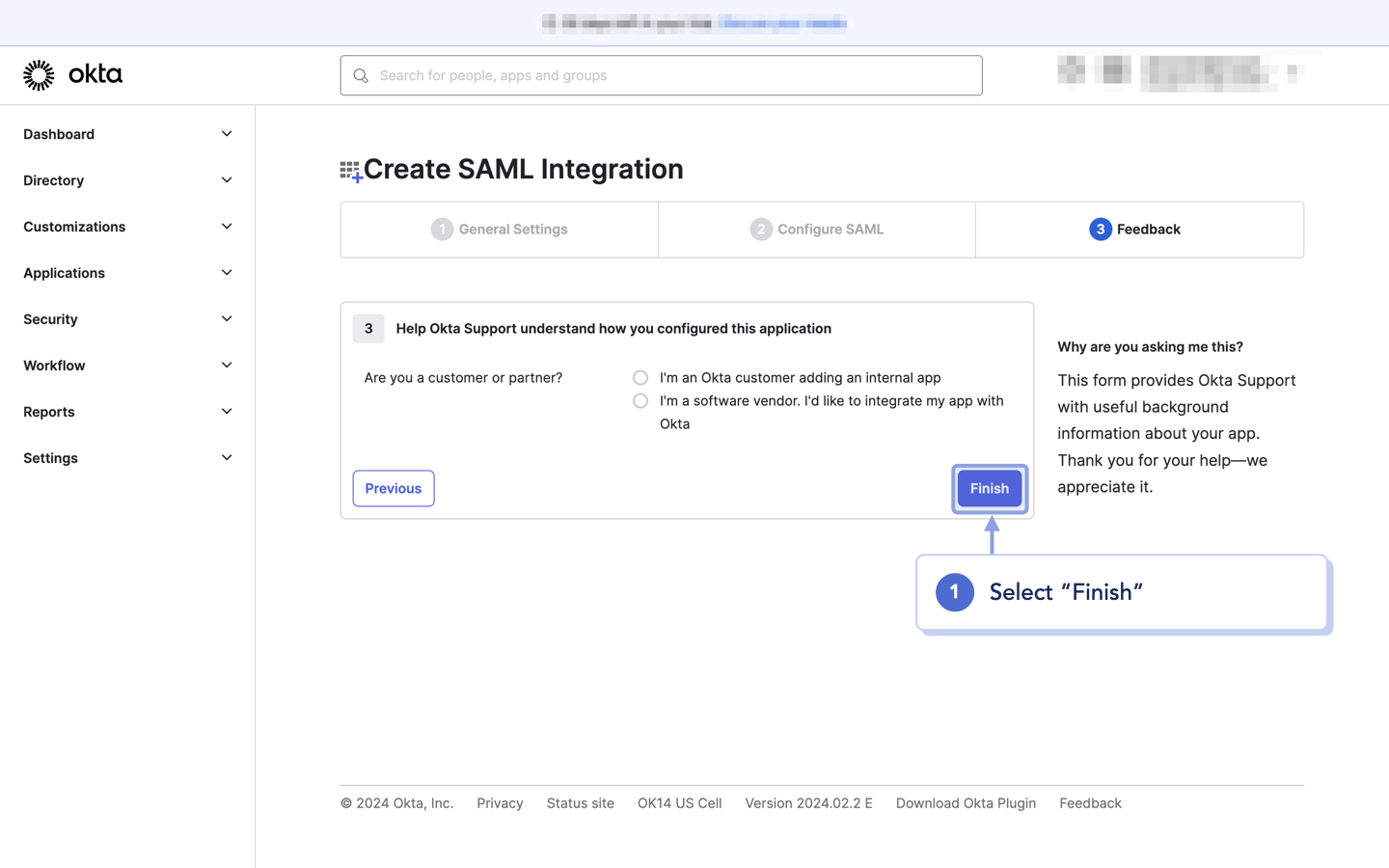

In Feedback page, click on Finish

cloudi-fi_okta_saml_create a new application_feedback.png

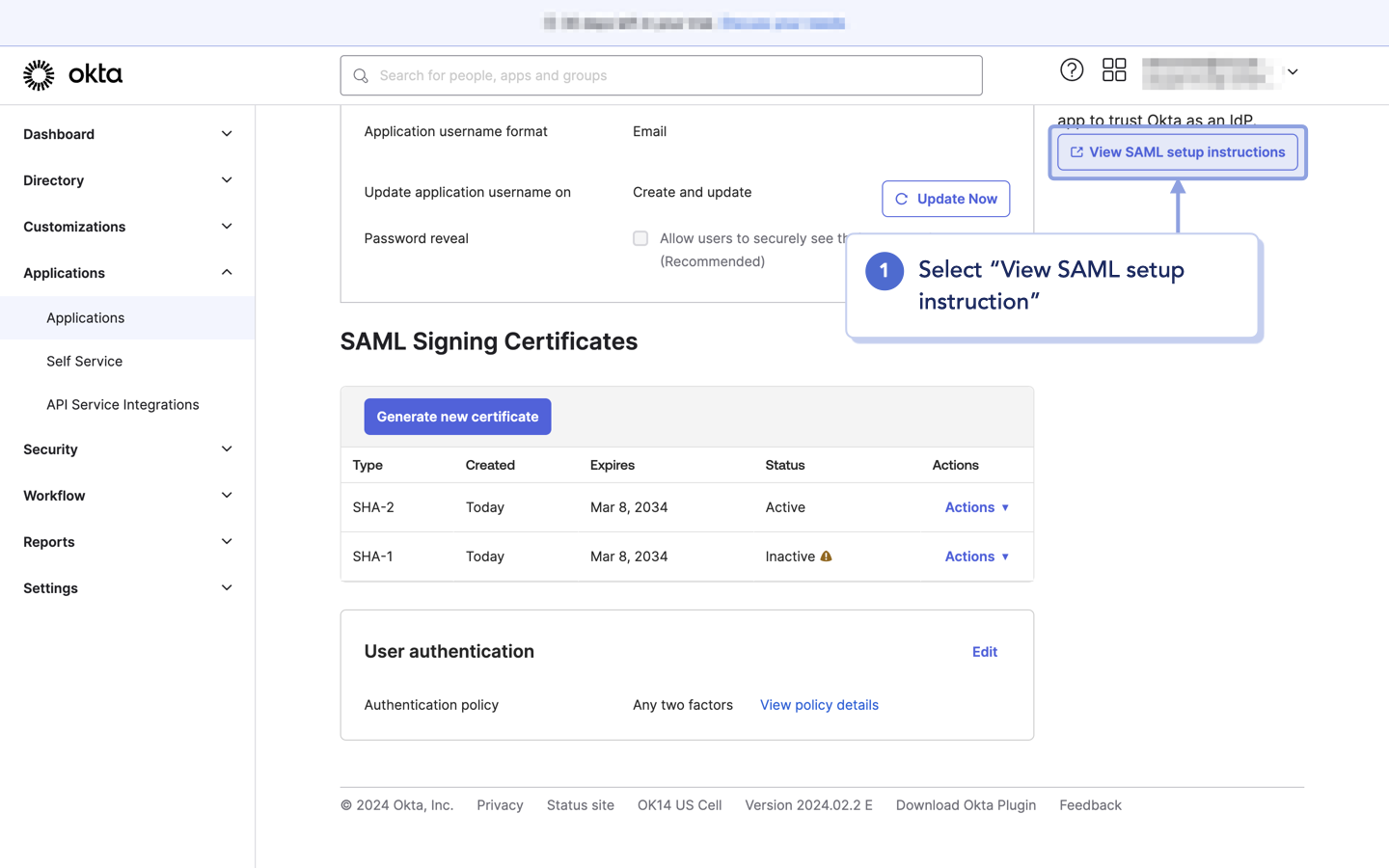

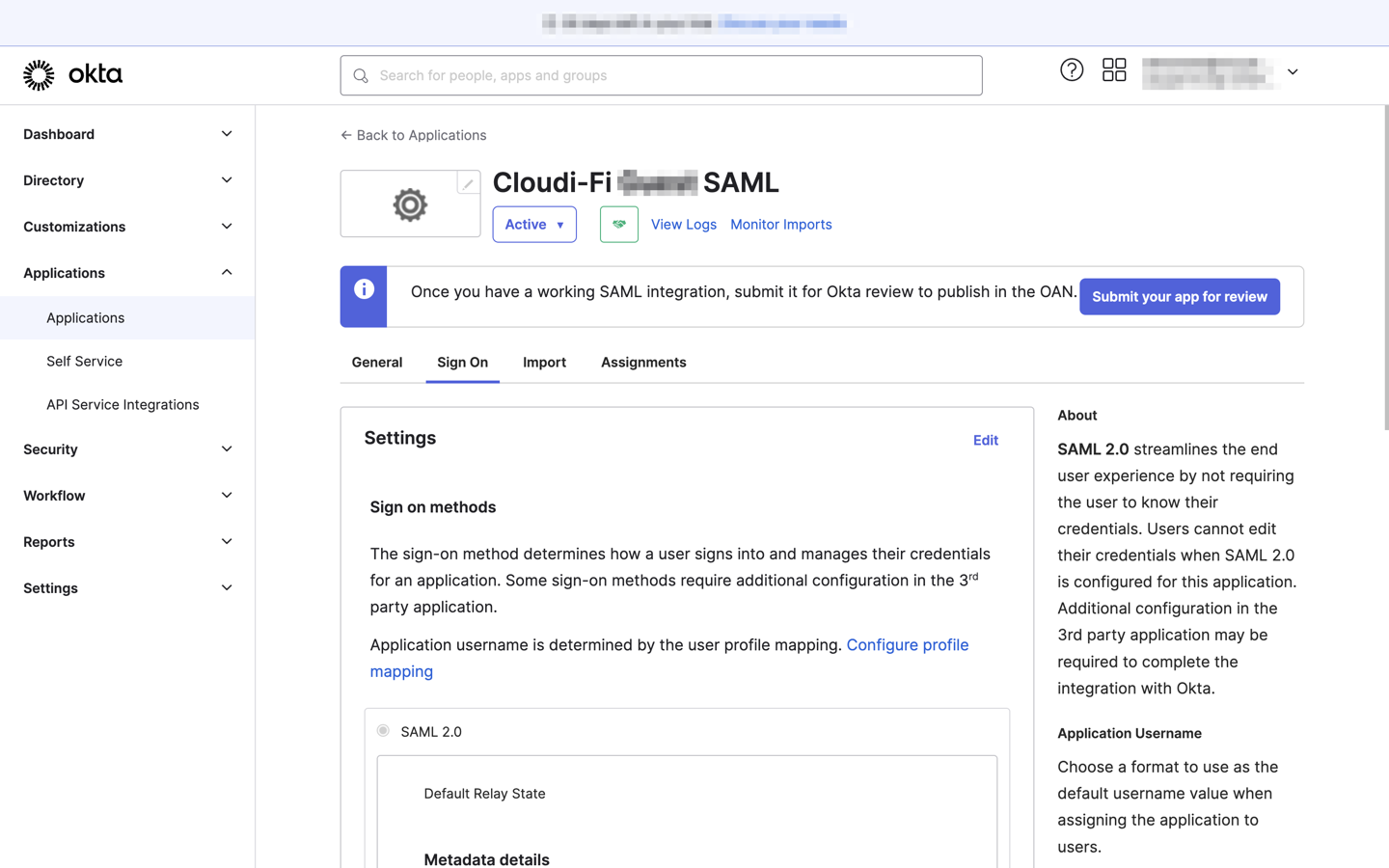

Once the Cloudi-Fi application is created on Okta, click View SAML Setup Instructions to retrieve technical information to be configured on the Cloudi-Fi portal.

cloudi-fi_okta_saml_create a new application_end.png

cloudi-fi_okta_saml_create a new application_view SAML instructions_1.png

Here are needed information :

Identity Provider Single Sign-On URL
Identity Provider Issuer
X.509 Certificate

cloudi-fi_okta_saml_create a new application_view SAML instructions_2.png

2. Cloudi-Fi configuration

To start step 2, make ensure you have all of these information

Attributes_name (in Okta)	Attributes_name (in Cloudi-Fi)	Details
Single sign-on URL	Linkback URL	https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>
SP Entity ID	Cloudi-Fi Entity ID	https://portal.cloudi-fi.net/
Identity Provider Issuer	IdP EntityID	http://www.okta.com/*********
Identity Provider Signle Sign-On URL	IdP Endpoint	https://****/app//***/sso/saml
X.509 Certificate	IDP Signing Certificate (X509 (Base64)
Attribute Statements / Name	Email_address Claims	mail

Navigate to the Cloudi-Fi Admin user interface (UI)

Access Configuration > Auth modes > Sponsor

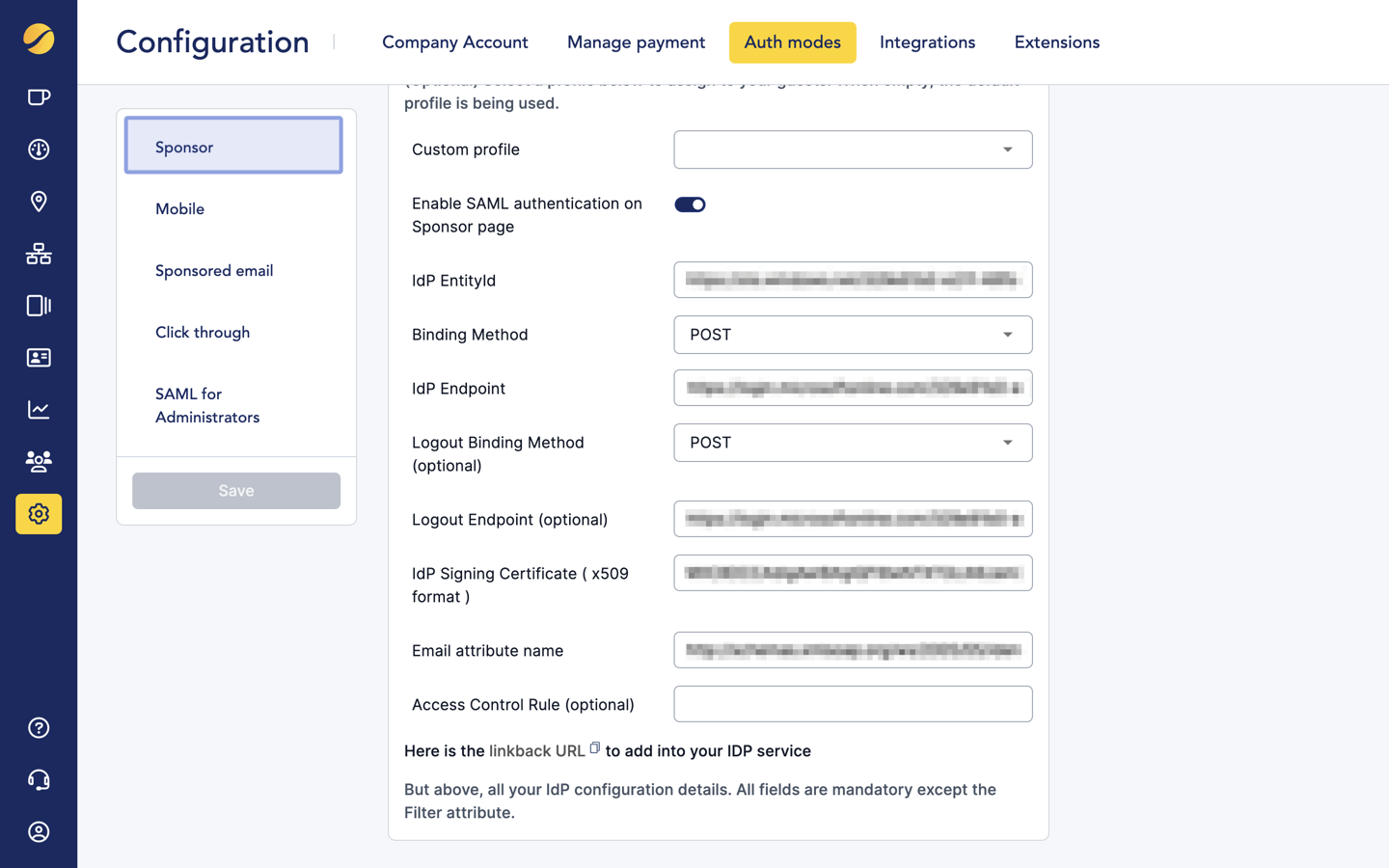

Enter the required values into the respective fields

cloudi-fi_admin_saml for sponsor_okta_configuration_1.png

Fill out the form as described below with details previously retrieved on Okta:

IdP EntityId : Identity Provider Issuer
Binding Method : POST
IdP Endpoint : Identity Provider Single Sign-On URL
Logout Binding Method : POST
IdP Signing Certificate : X.509 Certificate without "Begin Certificate" and "End certificate" markers
Email attribute name : mail

Finally, click on Save

Troubleshooting

Okta error message

A Sponsor_administrator access to the application and he is redirected to Okta authentication Page. He fills out his (email_address, password) and Sign-in. Then he is redirected to an Okta Error Page.

Please replay the process and perform a HTTP capture (Perform a Web Request capture in the web browser) and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?)

What's Next ?

Congratulations on enabling SAML authentication with Okta for your Sponsor_administrators.
