This article describes how to install a custom Certificate SSL on your FortiGate firewall to avoid HTTPS warnings

Prerequisites

Before starting, ensure that you have the following prerequisites:

Your Cloudi-FI Guest SSID/Subnet should already be configured to apply the following procedure. If you haven’t configured your Cloudi-FI Guest SSID yet, please follow this article: FortiGate integration.
A dedicated SSL certificate has to be issued

1. Install the public certificate

Go to System > Certificate > Create/Import > Certificate > Import Certificate > Certificate:

Add the certificate file
Add the private key file
Provide a password to protect your certificate (for instance: cloudifi)
Provide a Name for this object

Then select this certificate and click Apply.

Sometimes, you will have to import the intermediate certificate(s).

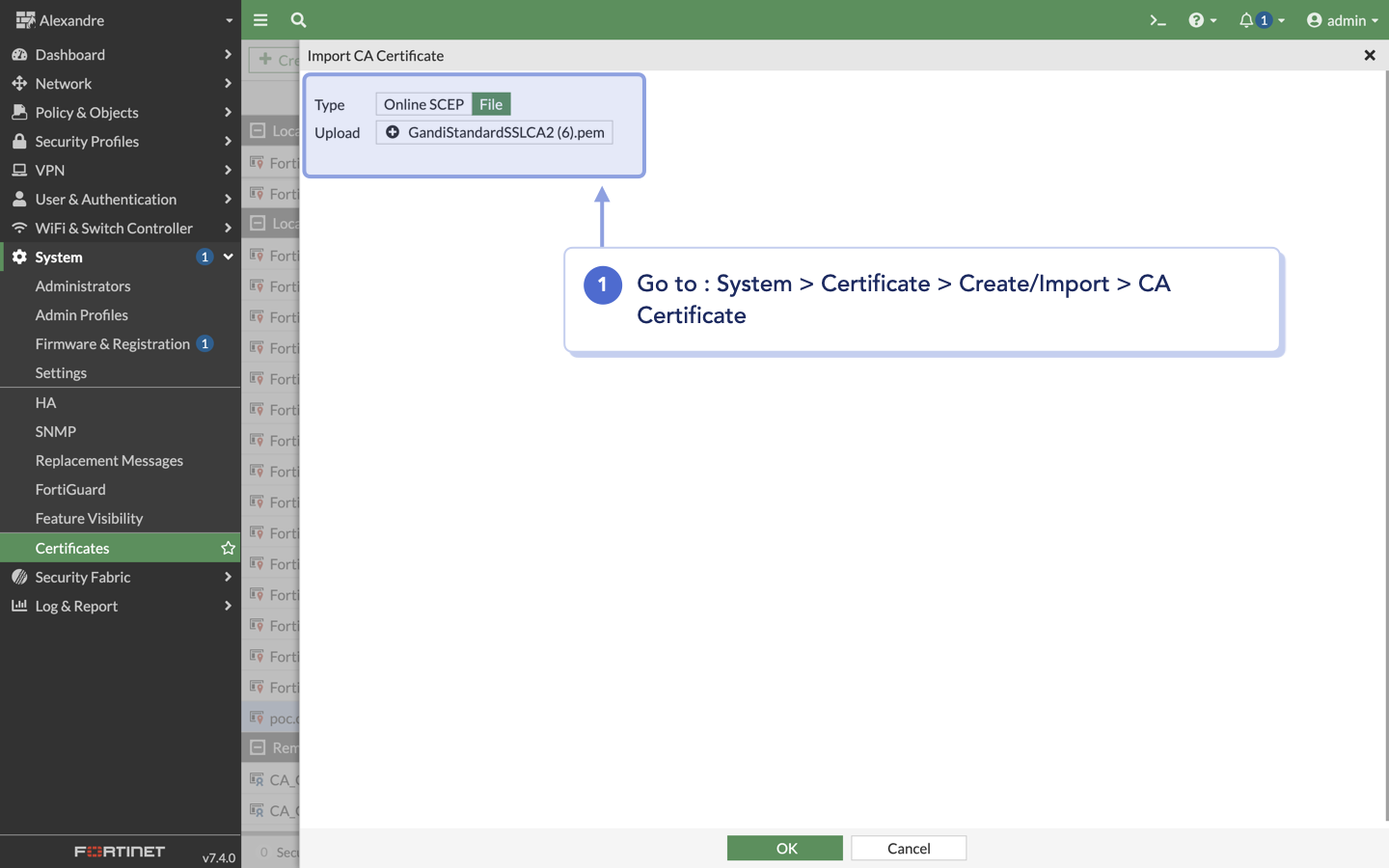

Go to System > Certificate > Create/Import > CA Certificate and add the certificate file

Then click on "OK"

fortigate_intermediate certificate_installation.png

2. Enable HTTPS Redirection

Connect to the Fortigate GUI, open the CLI console and run the following commands:

config user setting
   set auth-secure-http enable
   set auth-cert "your certificate_name"
end

fortigate_cli_user settings.png

3. Configure an FQDN for your FortiGate

Connect to the Fortigate GUI > Policy & Objects > Addresses > Create New Addresse

Name
Interface: any
Type: FQDN
FQDN (for instance guest.poc.cloudi-fi.net)

This will result in the guest user being redirected to this FQDN instead of the Fortigate IP Address.

This also implies that you must provide/purchase a public certificate for this FQDN to avoid a certificate warning on the guest’s device.

Then, connect to the Fortigate GUI, open the CLI console and run the following commands:

config firewall auth-portal
    set portal-addr "your_fqdn"
end

fortigate_cli_firewall auth portal_setting.png

Then, go to "User & Authentication > Authentication Settings"

Captive portal type: FQDN
Captive portal (Enabled): select your FQDN
Authenticated timeout: 5 minutes
Protocol support: HTTP, HTTPS
HTTP redirect: Enabled
Certificate: select the certificate imported in Step 1 : Install the public certificate

fortigate_users_authentication settings.png

Note that guest.poc.cloudi-fi.net is a domain name owned by Cloudi-Fi. You could use this FQDN if you use the Cloudi-Fi public certificate. If you prefer to use your domain and certificate, replace them with your domain.

4. Local DNS Record

Go to Network > DNS Servers to configure the DNS database server with static DNS entries.

You may need to activate the feature in:
System > Feature Visibility > Additional Features > DNS Database.

First, create DNS Service on Interface

Interface: interface where the guest users will be connecting
Mode: Recursive

fortigate_dns servers_dns service.png

Then, create a DNS Database

DNZ Zone

DNS Zone: name one your Zone
Domaine name: same as FQDN configured in Step 3 : Configure an FQDN for your FortiGate
Hostname of Primary DNS: dns

Within this DNS database, create the DNS static entry as shown below

Type: Address (A)
Hostname (for instance guest)
IP Address: IP of internal interface where the guest users will be connecting

Save the settings in DNS

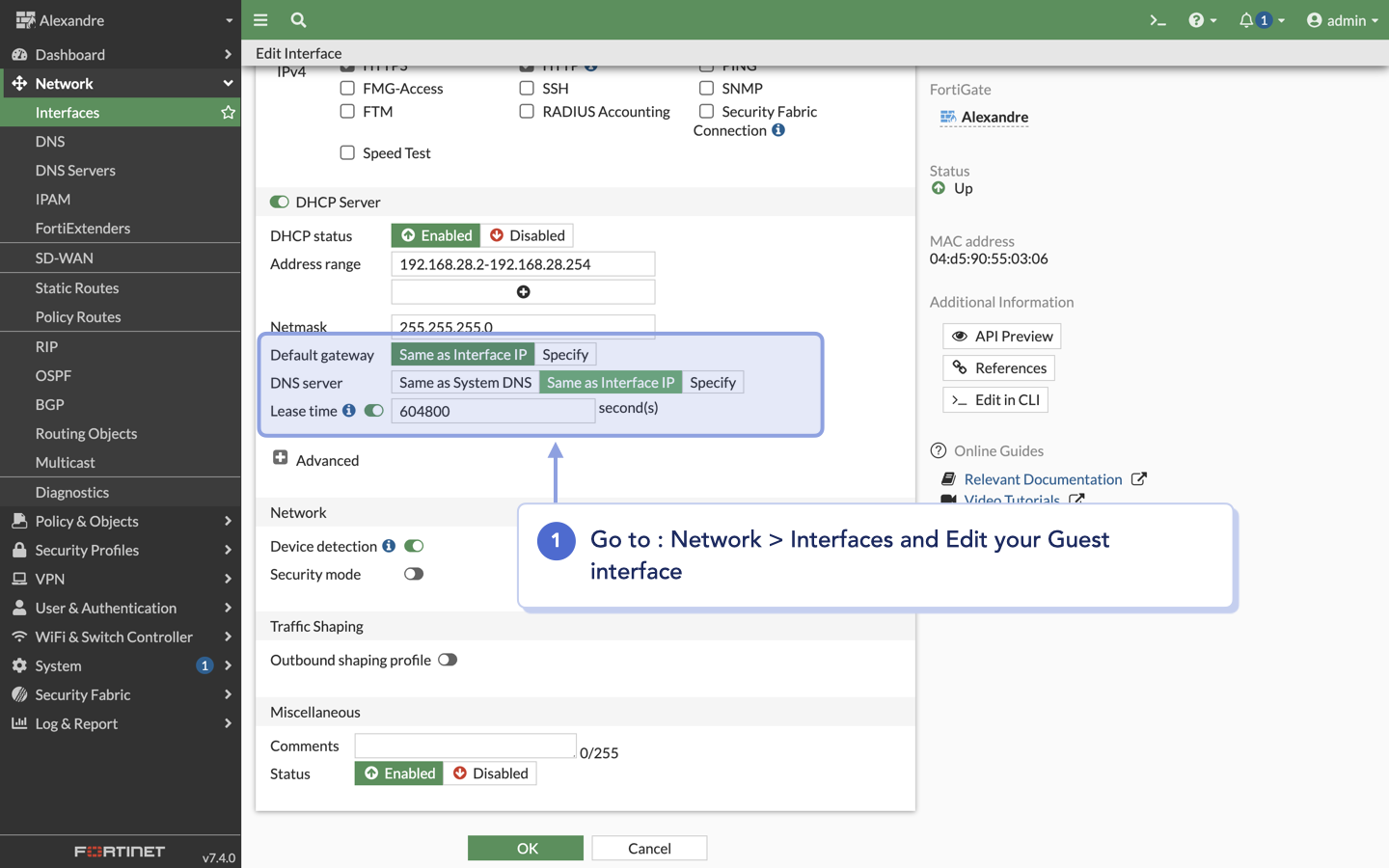

The next step is to edit your DHCP configuration on the Guest interface. You can choose between the IP address of your interface

fortigate_interface_DNS_same as interface IP.png

Or Specify a public IP address

The users behind this Guest SSID will get IP from this DHCP range and will be able to resolve the static DNS entry in the DNS database as below.

For instance

nslookup guest.poc.cloudi-fi.net
Server: Unknown
Address: 192.168.28.1
