How to enable Cloudi-Fi with Huawei iMaster NCE-Campus (API Based)

Alexandre de THOMASSON
  • Updated

Follow our step-by-step guide to enable Cloudi-Fi connectivity with Huawei iMaster NCE, which can help enhance your campus network.

Prerequisites

Before starting, ensure that you have the following prerequisites:

  • Access to the Huawei iMaster NCE-Campus.
  • Access to Cloudi-Fi’s admin console
  • Knowledge of your network’s IP addressing scheme.
  • Firewall ports allowed:
    • HTTP, HTTPS
    • DNS

1. Get the Cloudi-Fi required URL

To create a new location in the Cloudi-fi Admin interface if it doesn't already exist, follow these instructions: Go to the "Location" section in the Cloudi-fi Admin interface.
Create New Location and enter the required details for the new location:

  • Location Name
  • Type (Redirect URL)
  • Portal template
  • Country

Location URL: this URL will be used to configure an External Captive Portal

  • Access the Cloudi-Fi administration console
  • Select the location
  • Click on the menu button for the location
  • Select "Copy Splash page URL"

Cloudi-Fi Get captive portal url

Transform the URL as follows:

Cloudi-Fi

https://login.cloudi-fi.net/start/ch/ebd2egzrfgrg/lh/qgrzqrgegs/sp/spsomething.com

Huawei iMaster NCE-Master

https://login.cloudi-fi.net/start/ch/ebd2egzrfgrg/lh/qgrzqrgegs/sp/sphuaweicloud.com



2. Create API User

The following describes how to create a tenant administrator account with the Open API Operator, which will be used to obtain tokens.

Login to iMaster NCE-Campus as an administrator

Go to System > User Management > User Management, click the Users tab, and click Create.

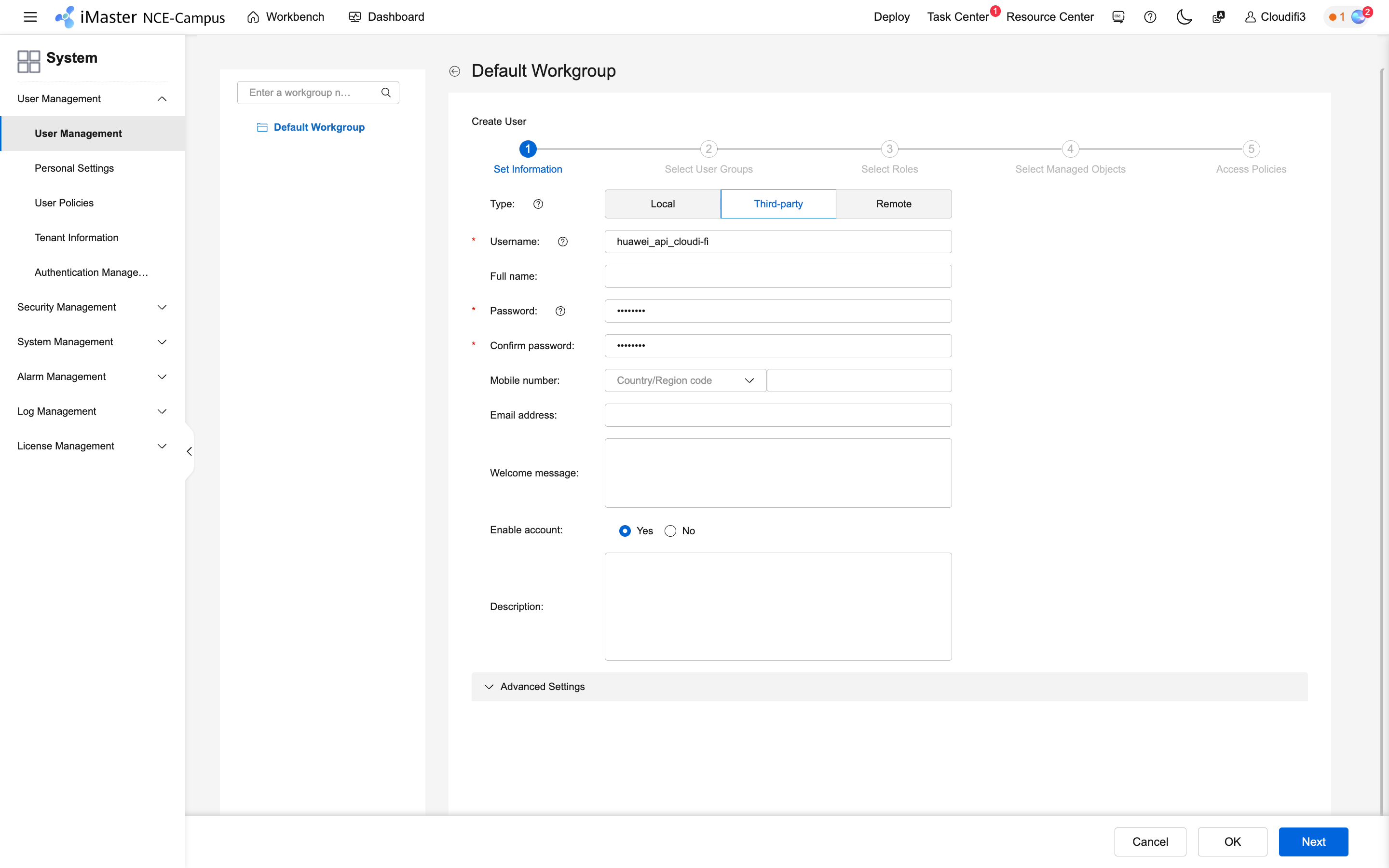

In Set information page, edit the following information and click Next.

  • Type : Third Party
  • Username : for instance huawei_api_cloudifi
  • Password creation mode : Manual
  • Password
  • Confirm password
  • Two-factor authentication : System setting(Disabled)
  • Enable account: Yes

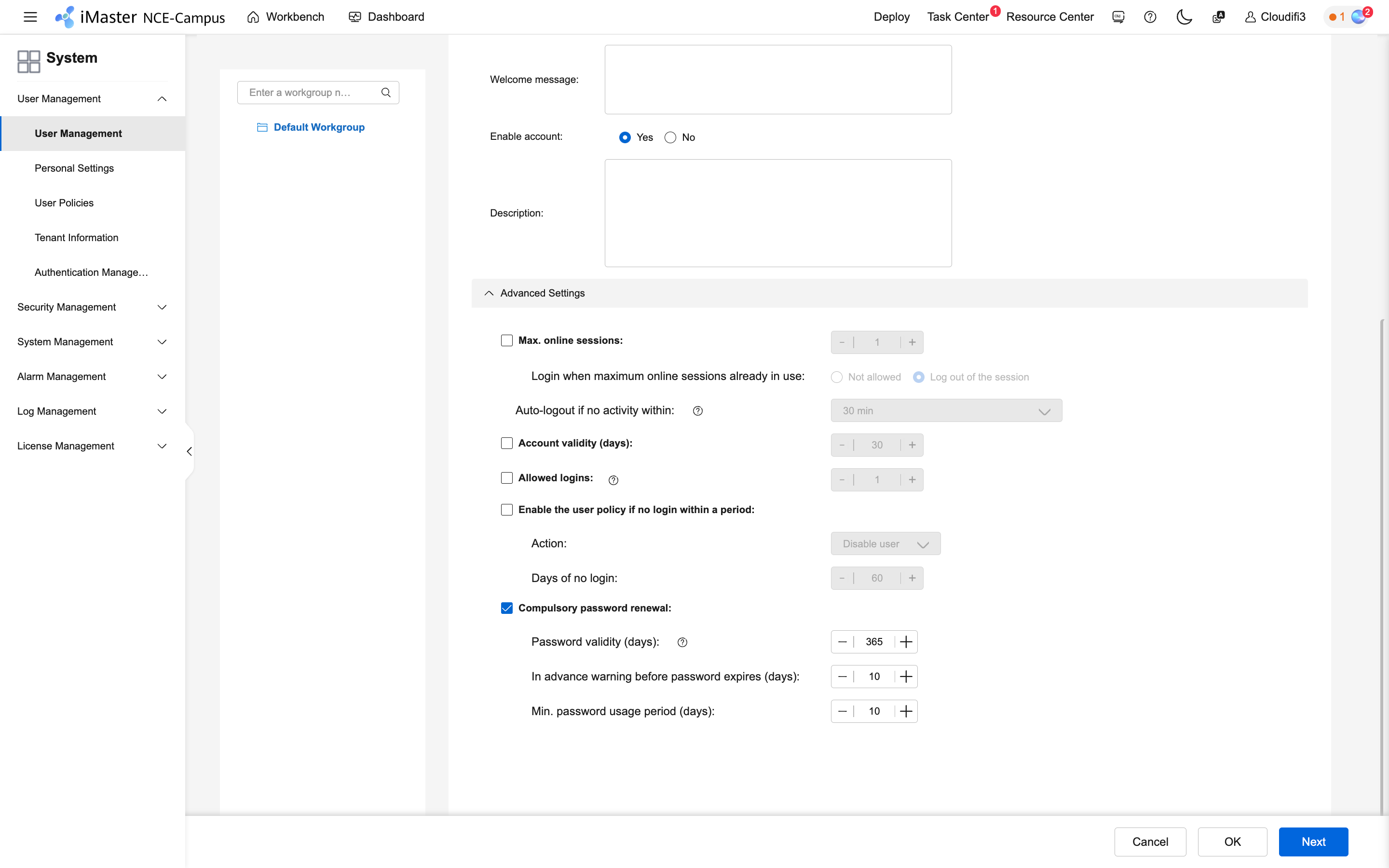

  • Advanced setting/Password validity : duration of your Cloudi-Fi subscription

huawei_cloudi-fi_usermanagement__set information.png

huawei_cloudi-fi_usermanagement__set information_2.png

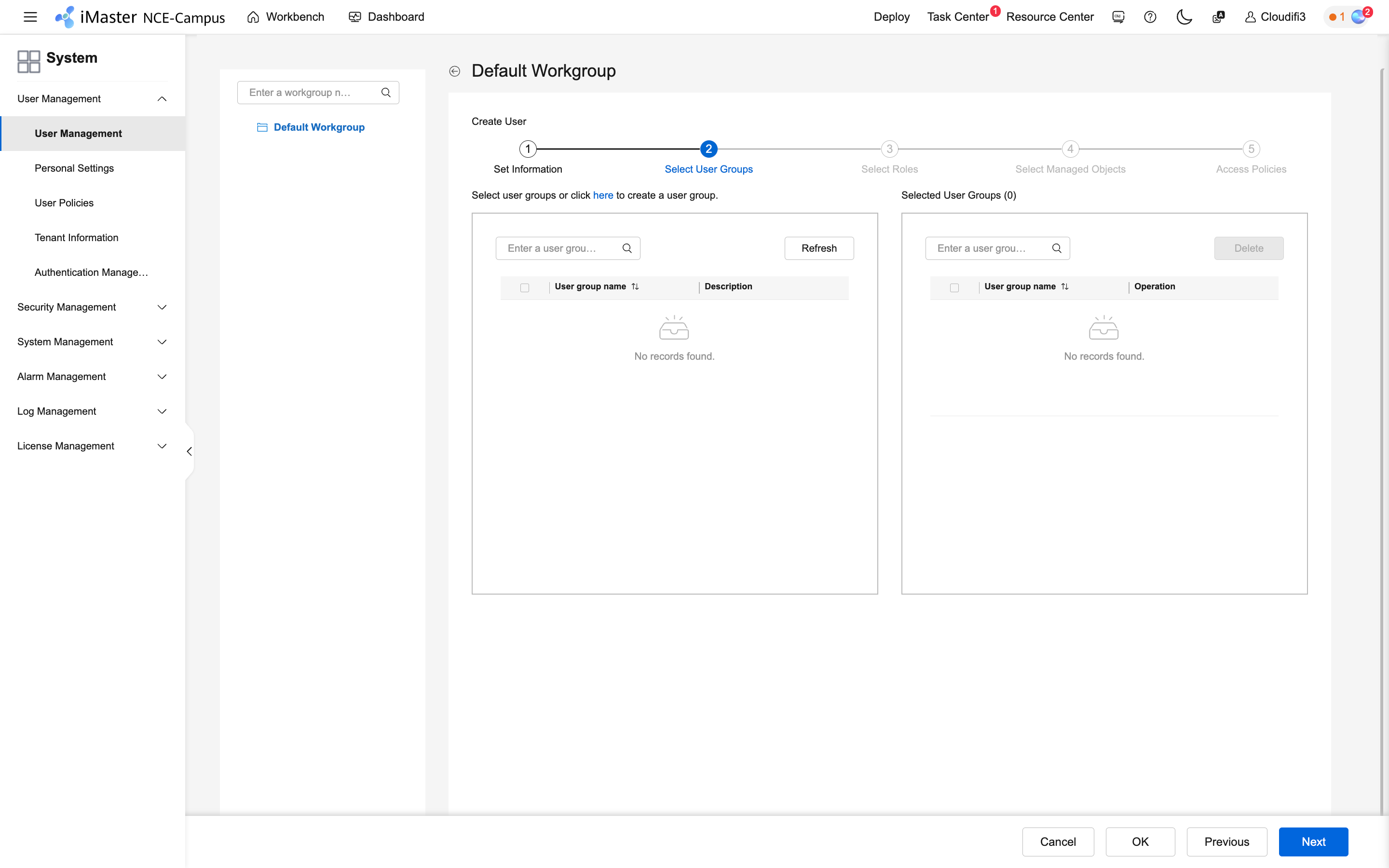

In Select User Groups page, you can add the user to a specific user group and click Next.

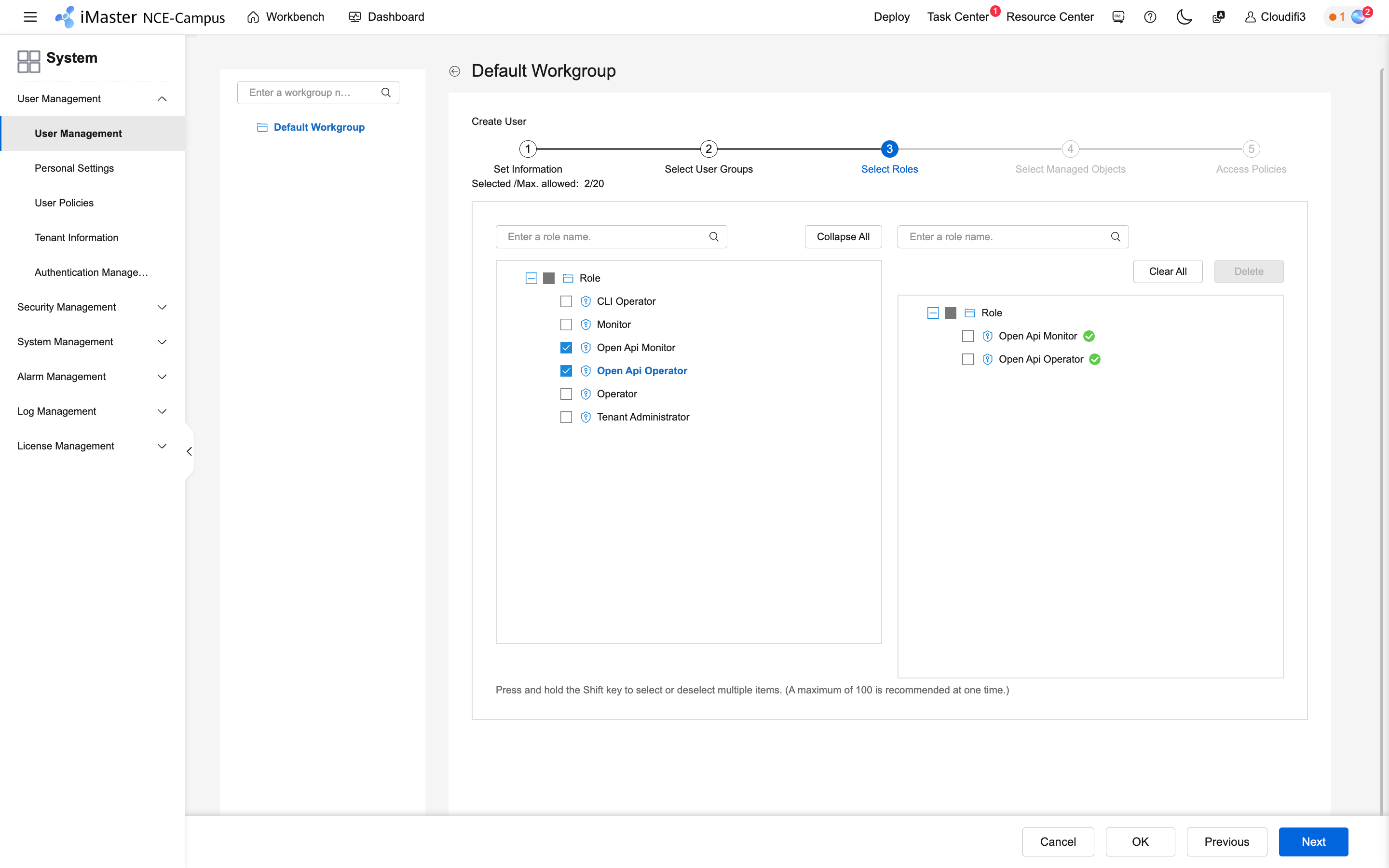

In Select Roles page, add Open API Operator and Open API Monitor and click Next.

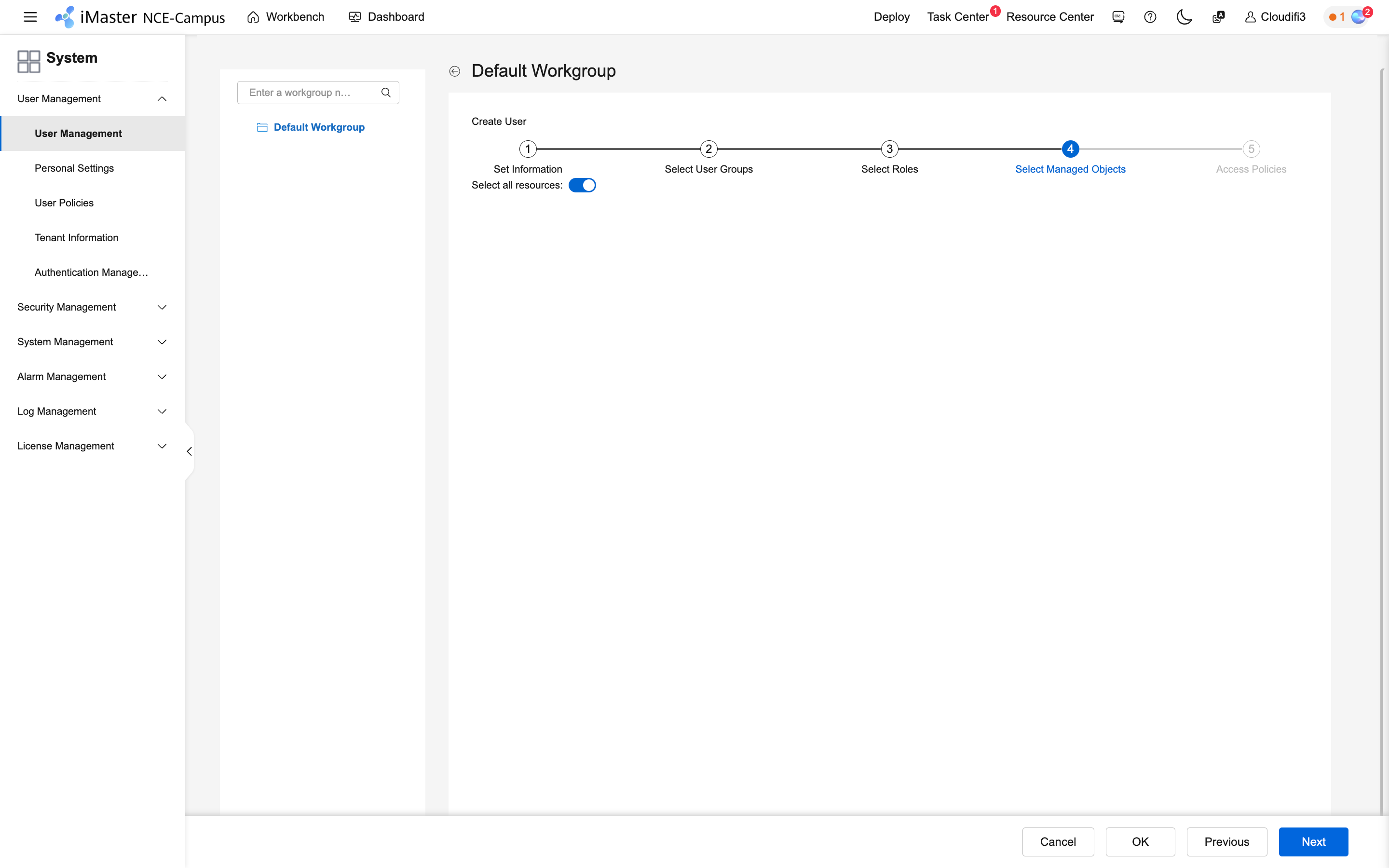

In the Select Managed Object, select Select all resources, and click Next.

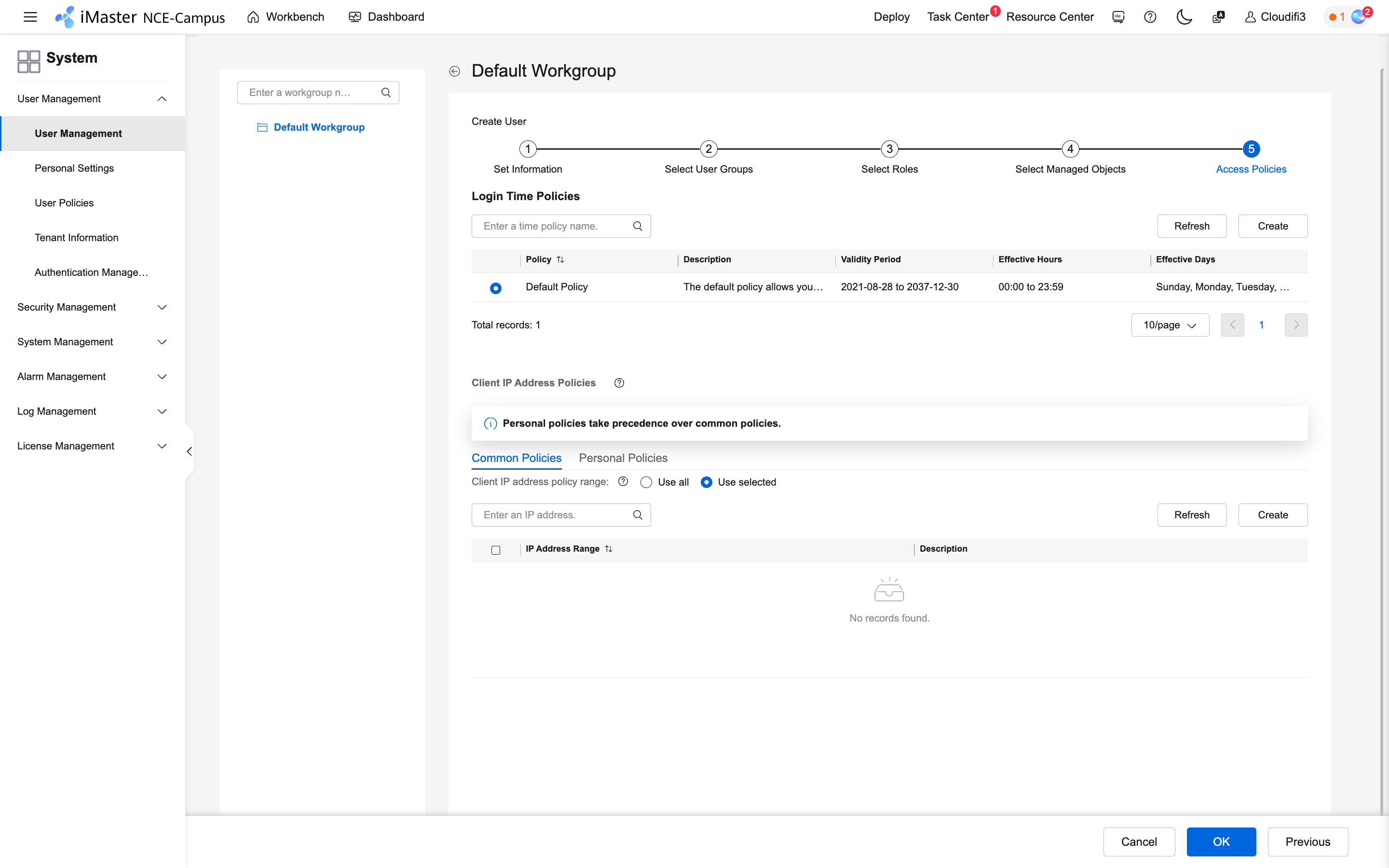

In the Select Access Policies page, click Next.


Click OK  and share the username/password with the Cloudi-Fi support team.



3. Create the SSID

This section describes how to configure an SSID.

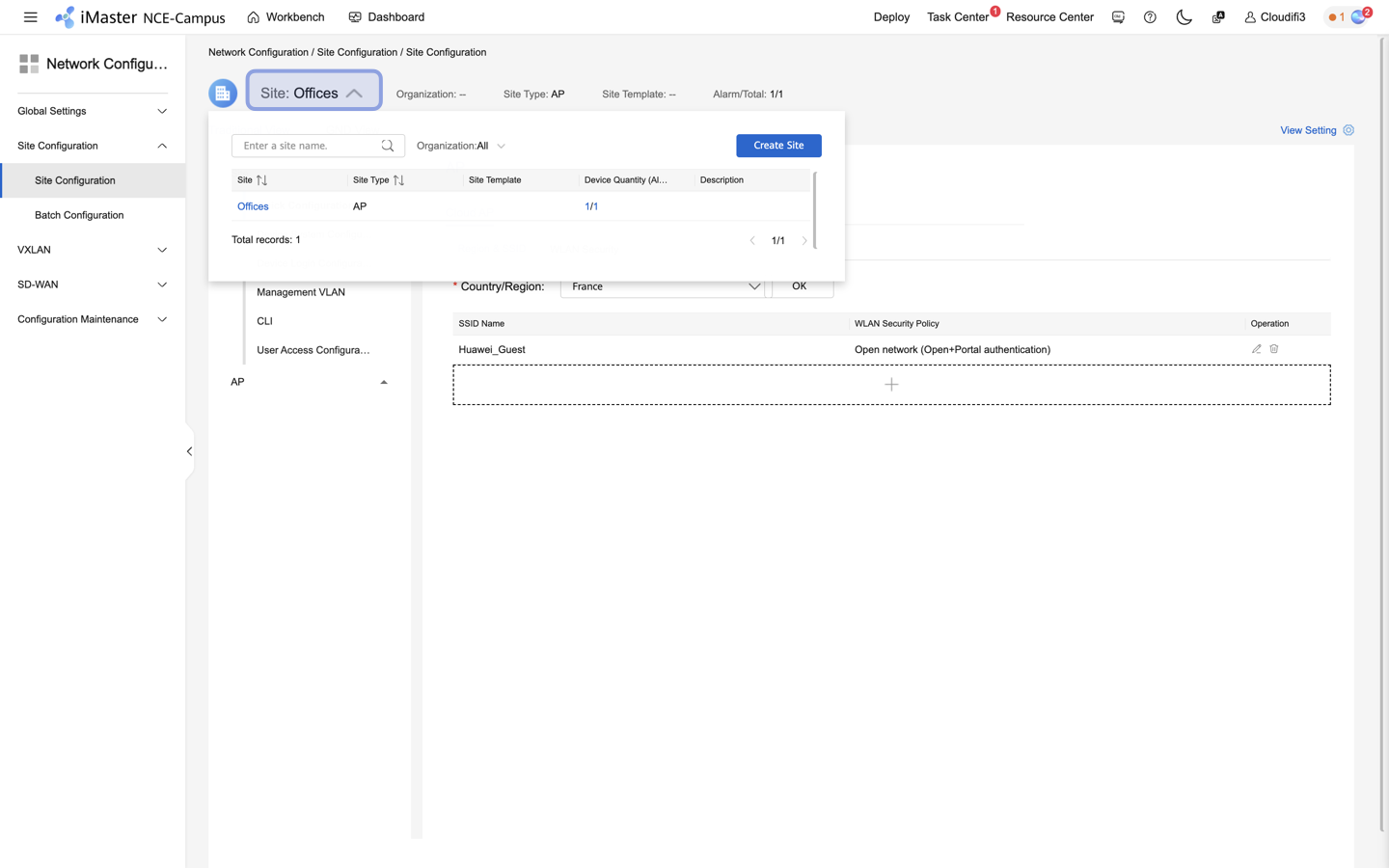

Go to Network Configuration > Network Configuration > Site Configuration.

Then select a site from the Site drop-down list in the upper left corner.


Then go to AP > Wi-FI, click Create, and configure SSID information.



In the Basic Settings page, edit the following information and click Next.

  • SSID name : for instance Huawei_Guest
  • Enabled

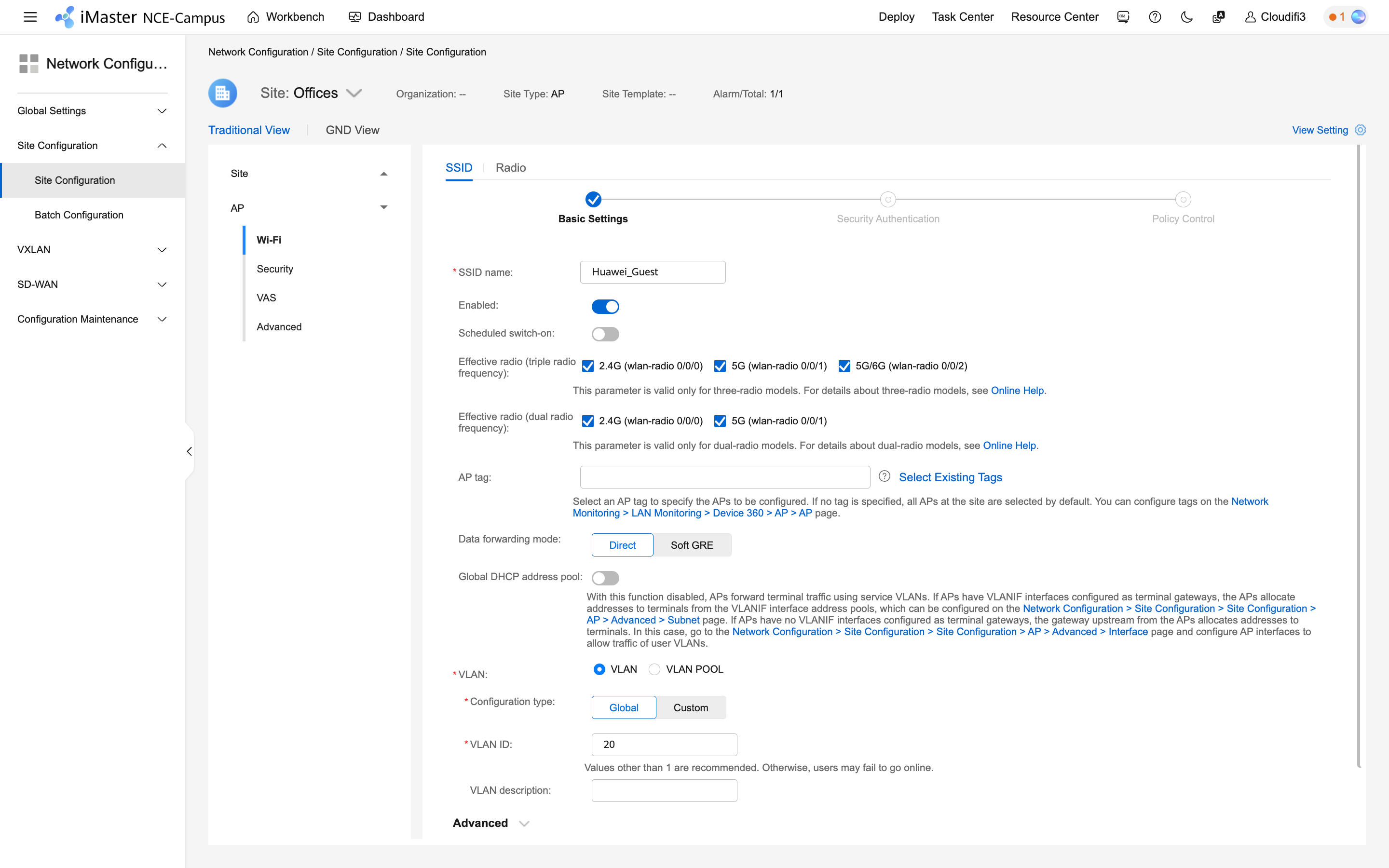

huawei_cloudi-fi_network-configuration_site-configuration_SSID_basic settings.png

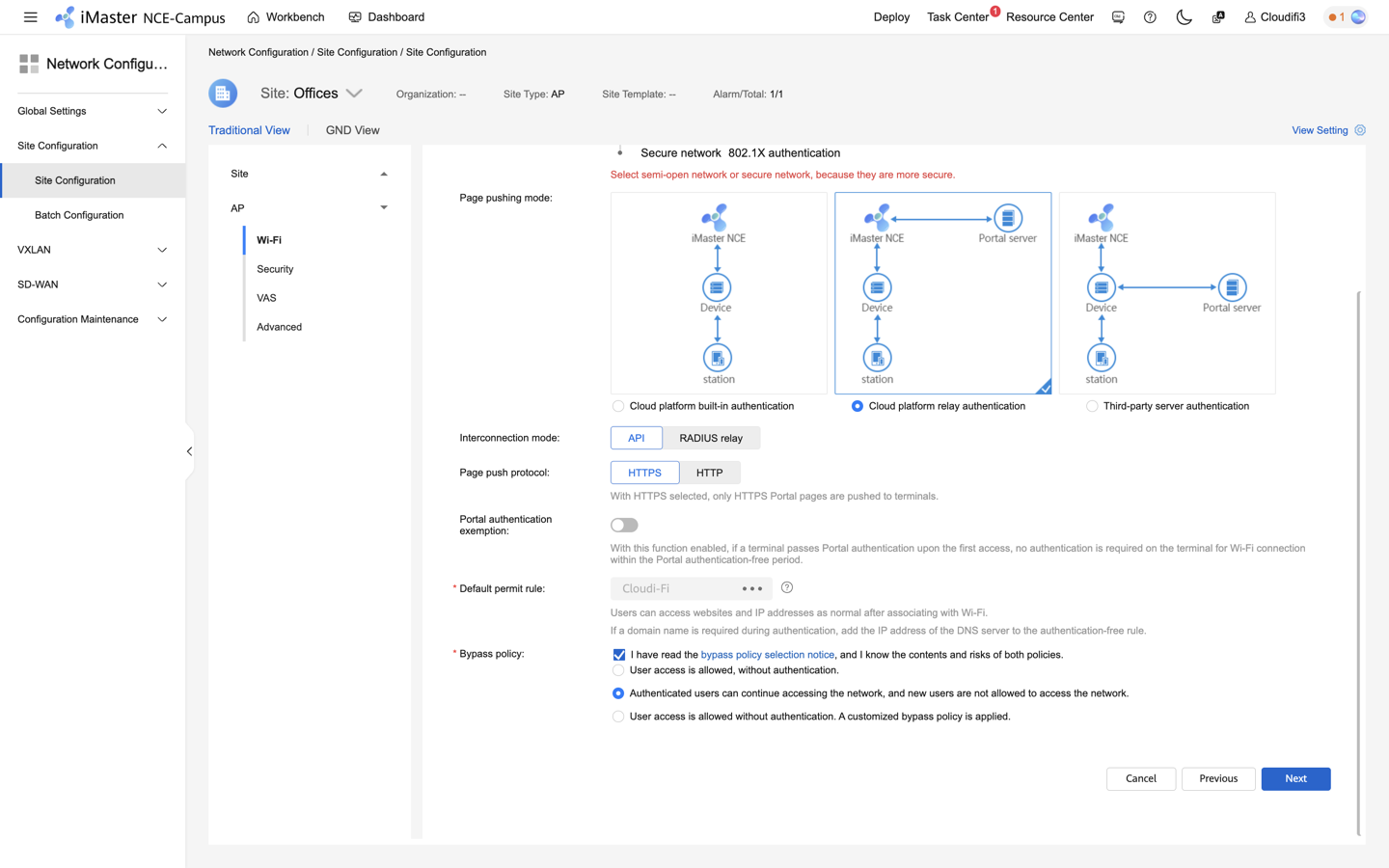

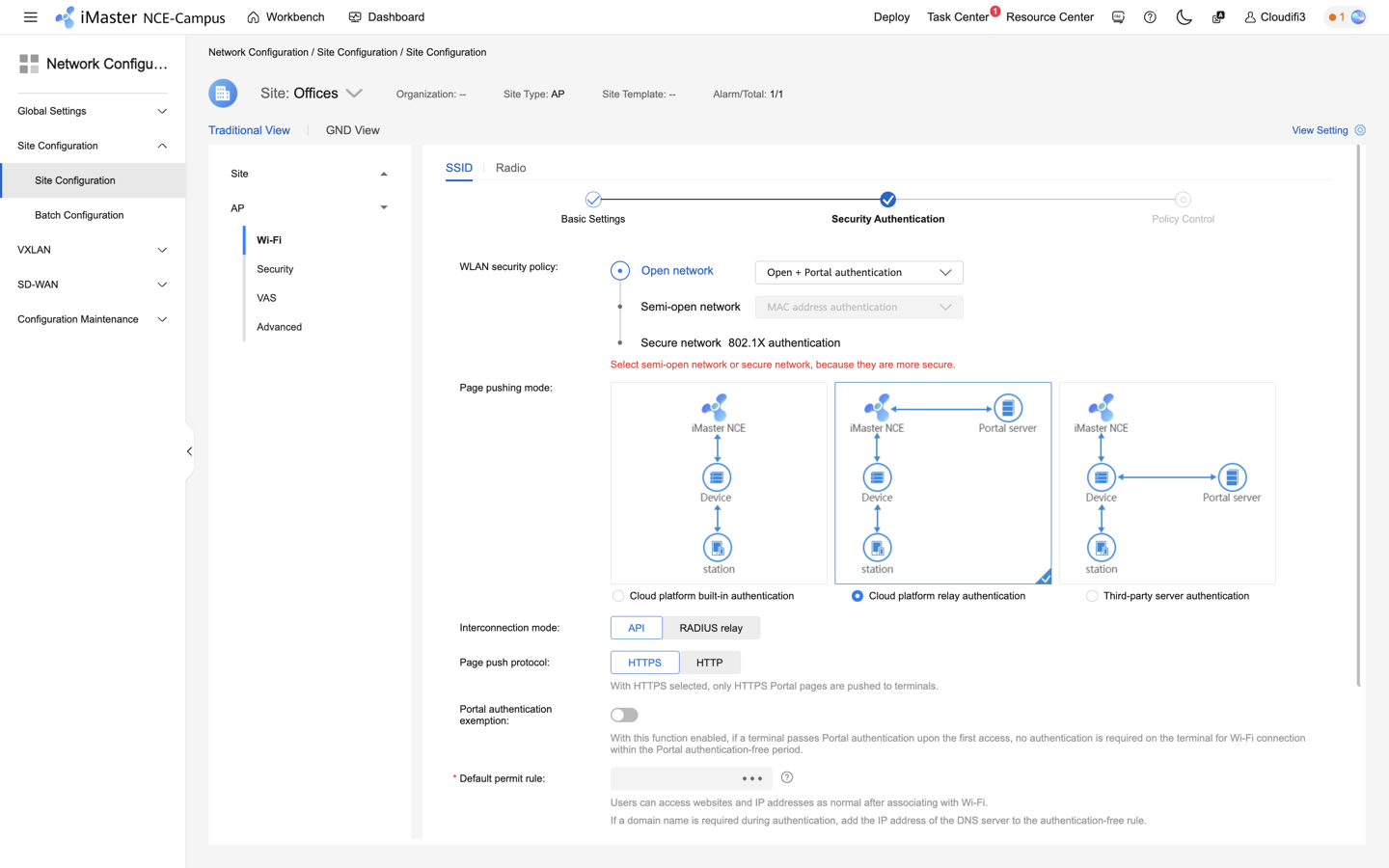

In Security Authentication page, edit the following information and click Next.

  • WLAN security policy : Open Network (Open + Portal authentication)
  • Page pushing mode : Cloud platform relay authentication
  • Interconnection mode : API
  • Page push protocol : HTTPS

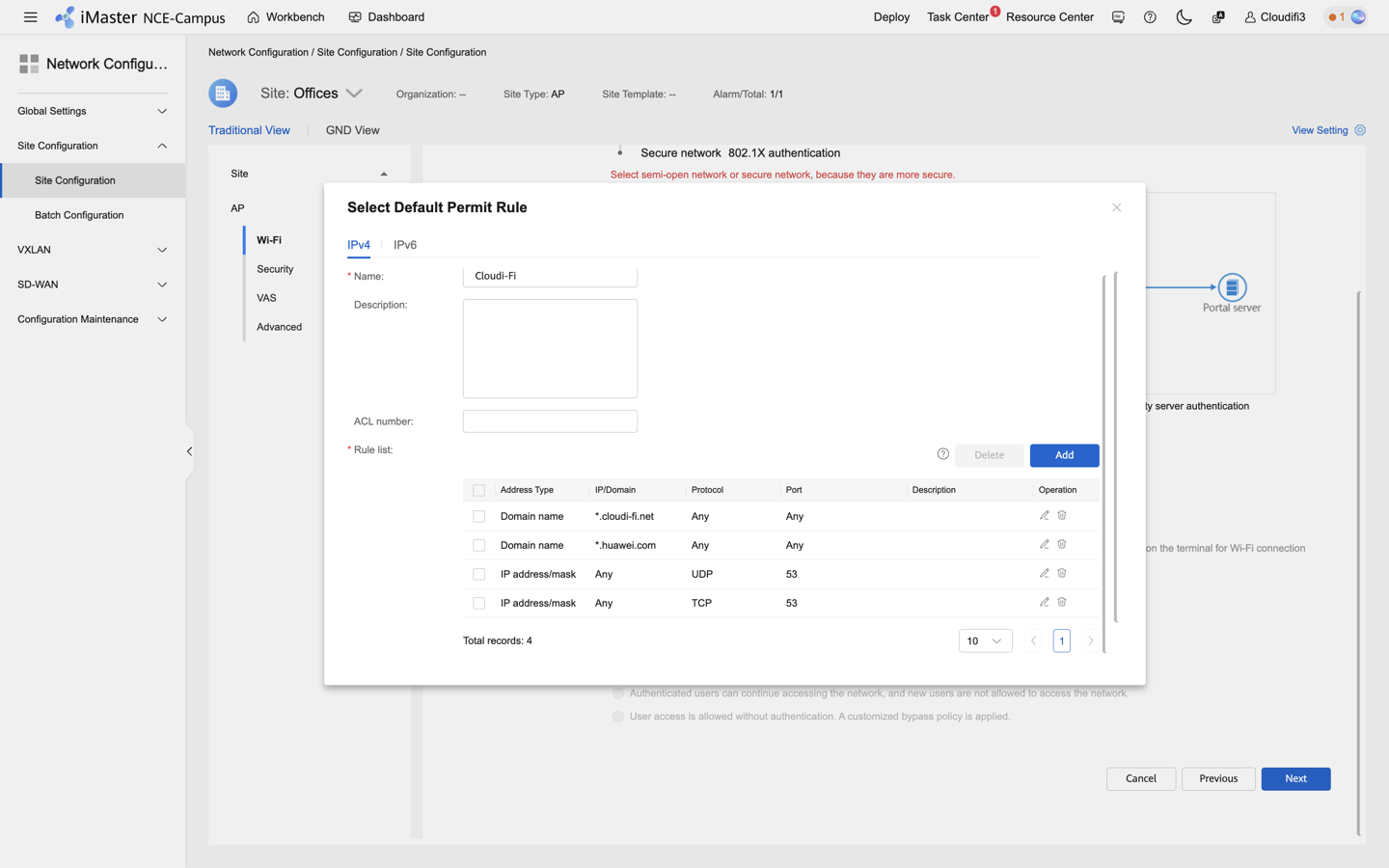

  • Default permit rule : create ACL Rules
  • Bypass policy : Authenticated users can continue accessing the network, and new users are not allowed to access the network.

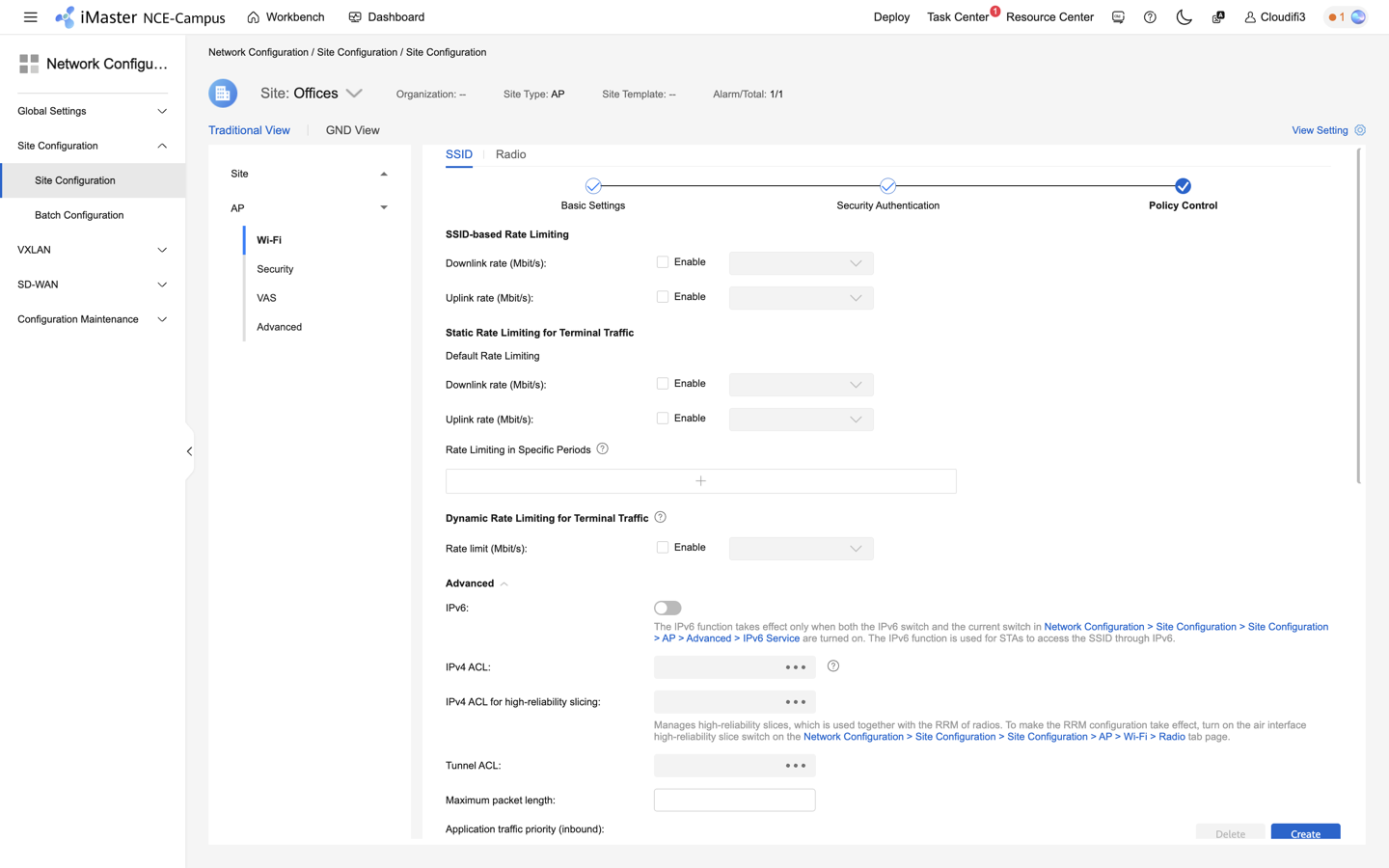

huawei_cloudi-fi_network-configuration_site-configuration_SSID_security_3.pngIn Policy Control page, you can enable the bandwidth limitation per SSID and Enable Application / URL filtering.




Click Create.



4. Configure Portal Page Push Policy

This section describes how to configure a portal push policy based on which the specified portal will be pushed to the terminals associated with Wi-Fi.

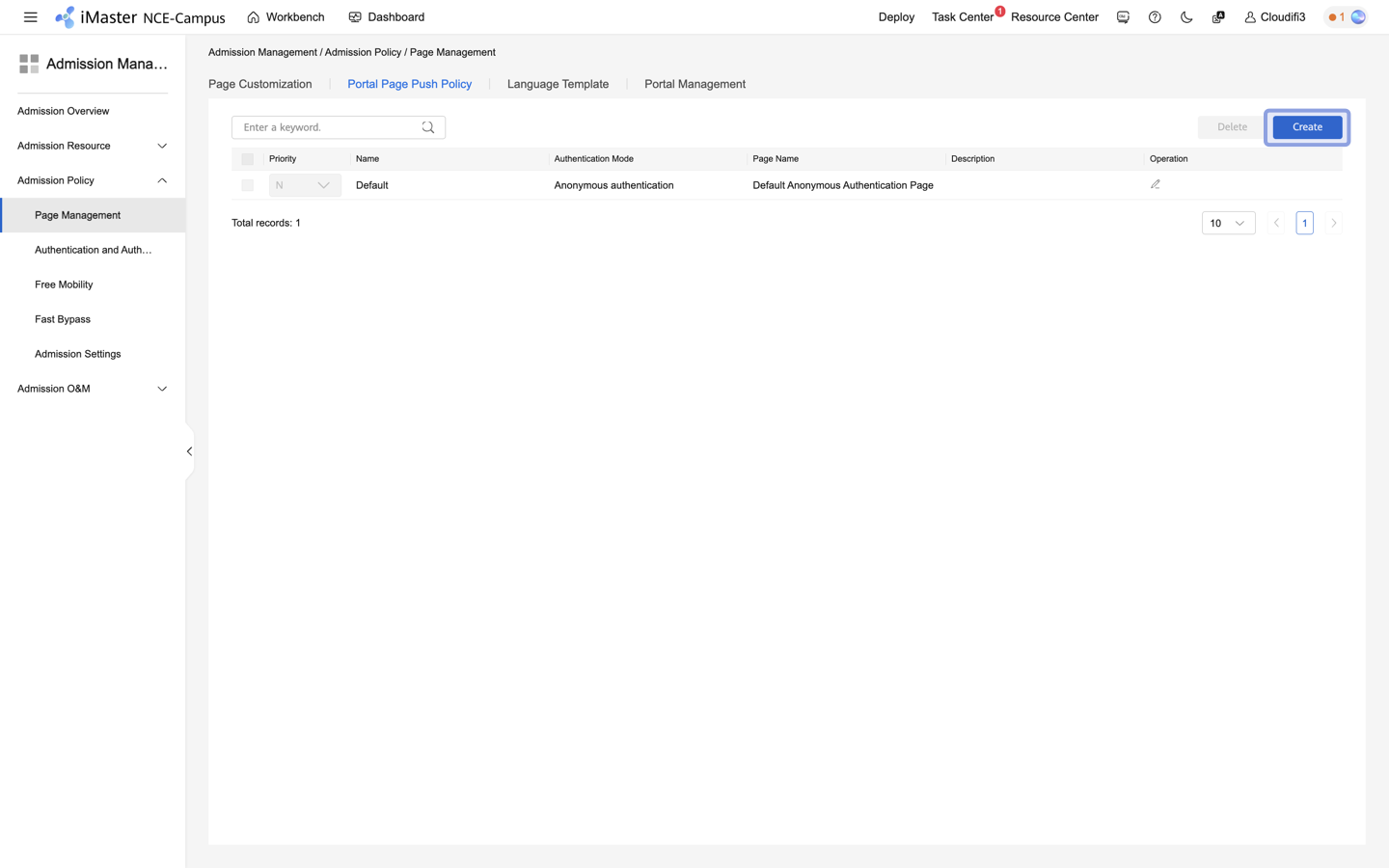

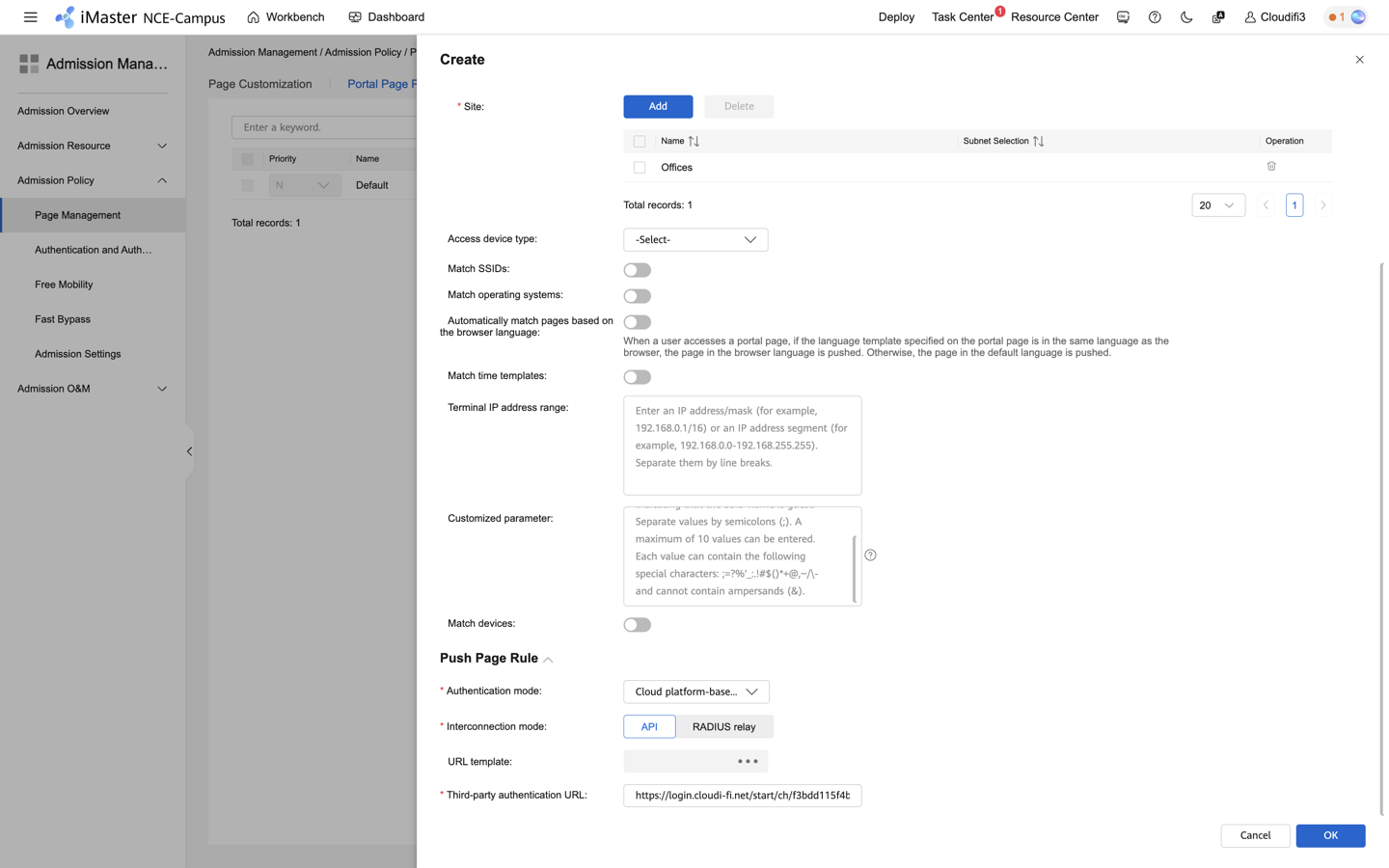

Navigate to the Admission Management > Admission policy > Page management > Portal Page Push Policy

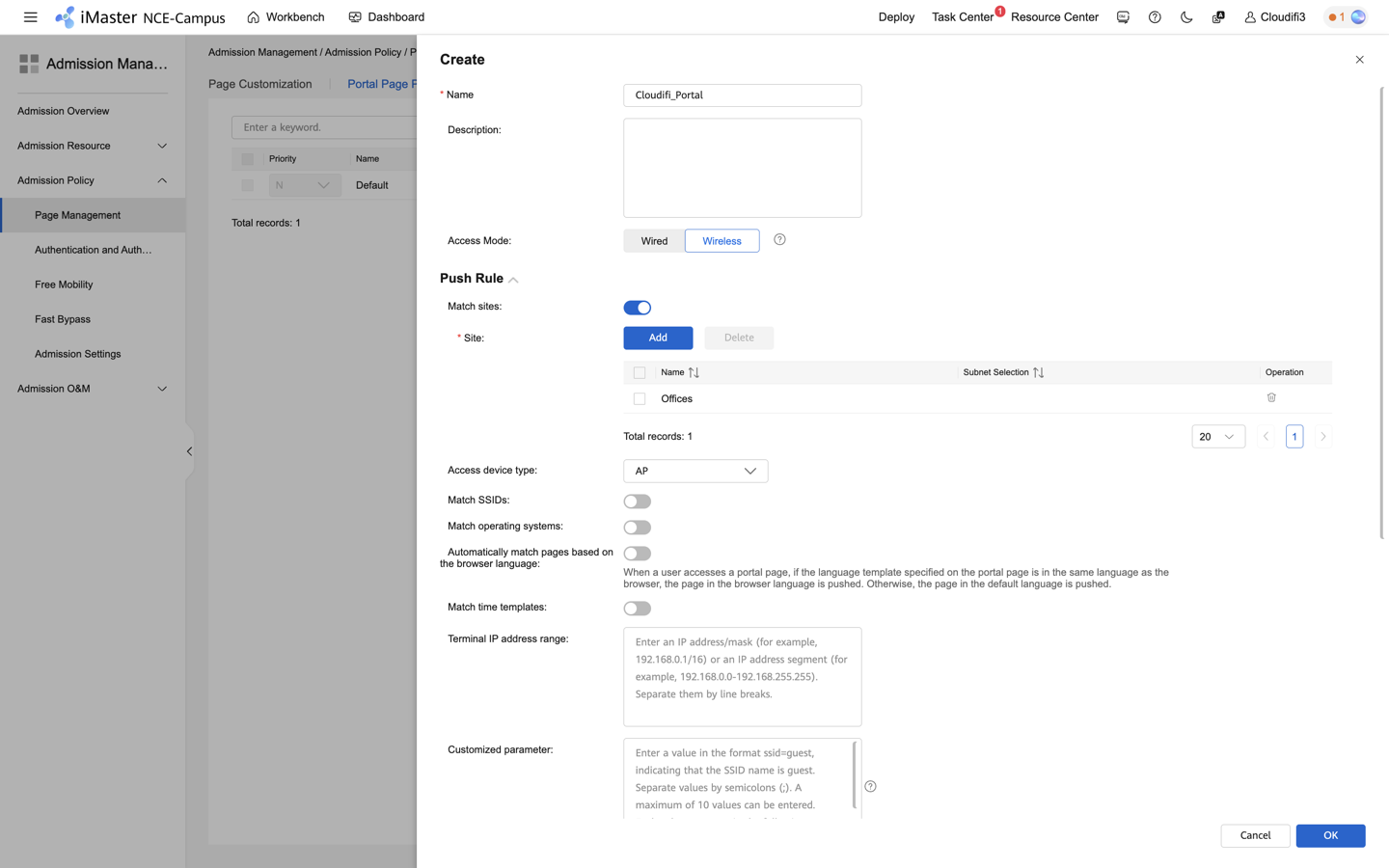

Click on the option to create a new policy.

  • Name : for instance Cloudifi_Portal
  • Access mode : Wireless
  • Match sites : enable
  • Site : click on Add and select your site
  • Authentication mode : Cloud platform-based relay authentication
  • Interconnection mode : API
  • Third-party authentication URL : copy/past the URL you get in 1. Get the Cloudi-Fi required URL

huawei_cloudi-fi_admission management_page management_create.png

huawei_cloudi-fi_admission management_page management_create_2.png

huawei_cloudi-fi_admission management_page management_create_3.png

Click OK.



5. Configure Authorization Result (Optional)

This section describes configuring the ACL, rate limit policy, and other permissions granted to successfully authenticated users.



Go to Admission Management > Admission Policy > Authentication and Authorization.



Go to Authentication Rule and select Create

  • Name : for instance AuthenticatedUsers
  • Authentication mode : User access authentication
  • Access mode : Wireless
  • Match site : select your site
  • Data source : local data source
  • Authentication protocol : All
  • Access permission for non-existent accounts : Continue processing
  • Access permission after an identity authentication failure : Deny access

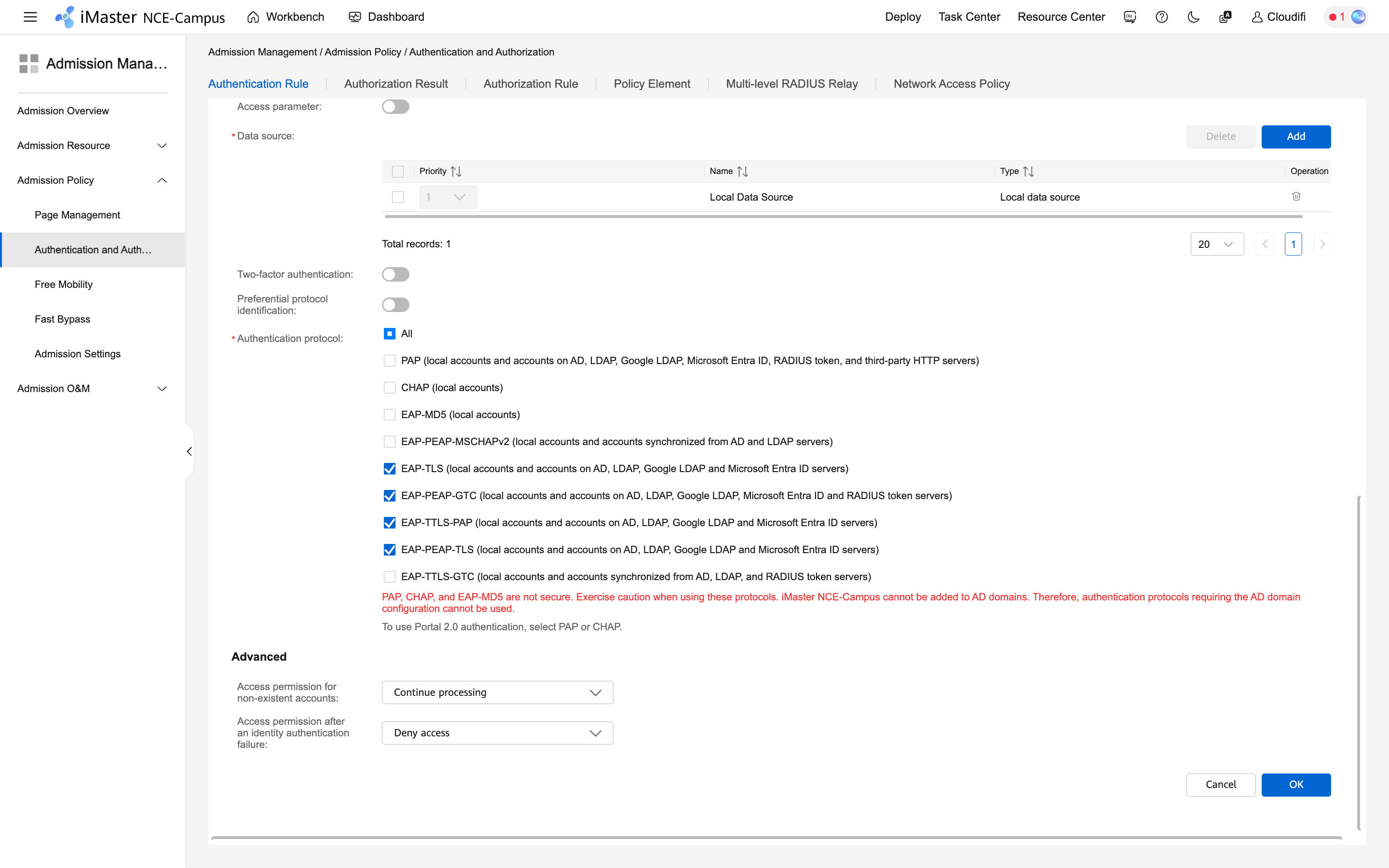

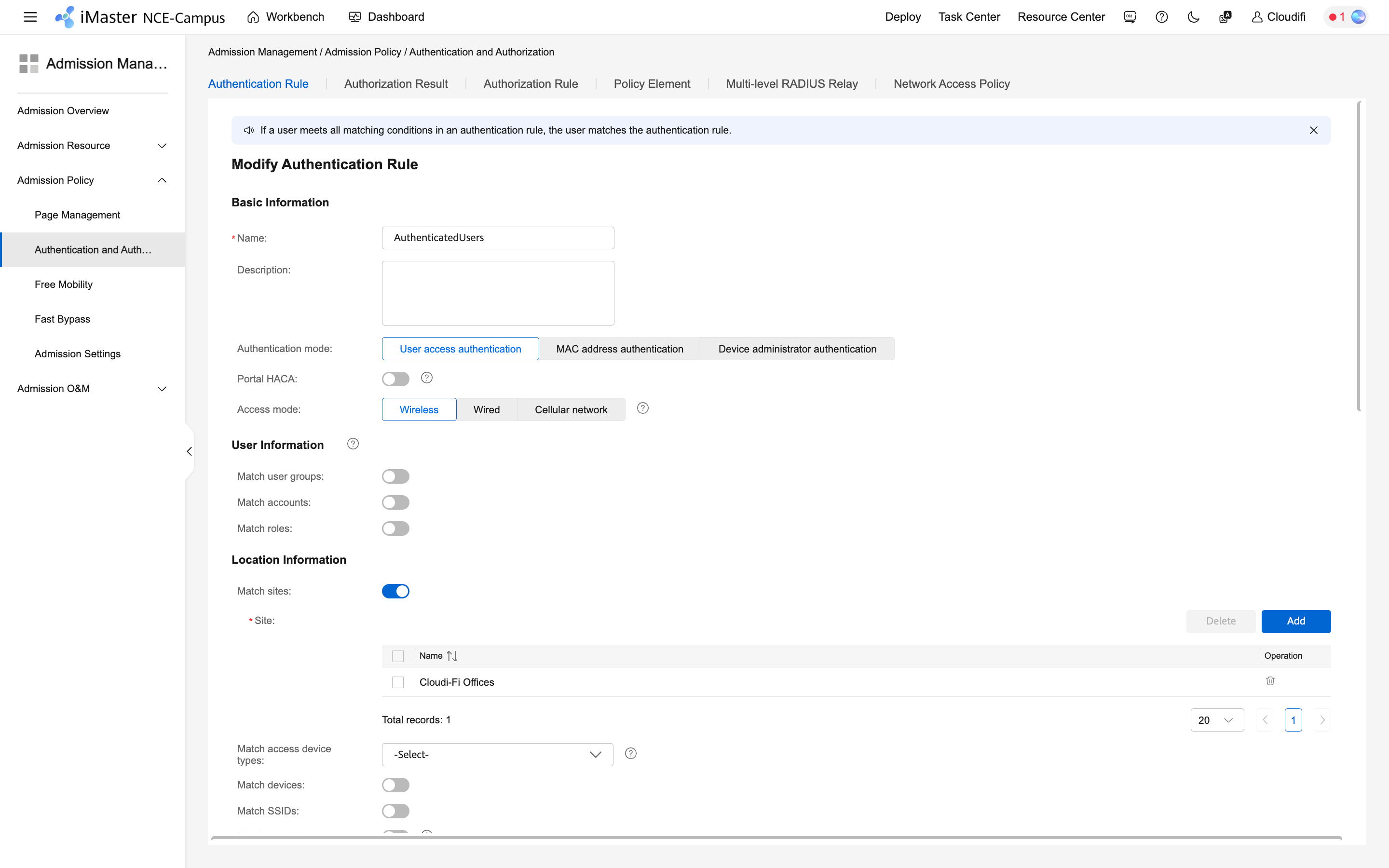

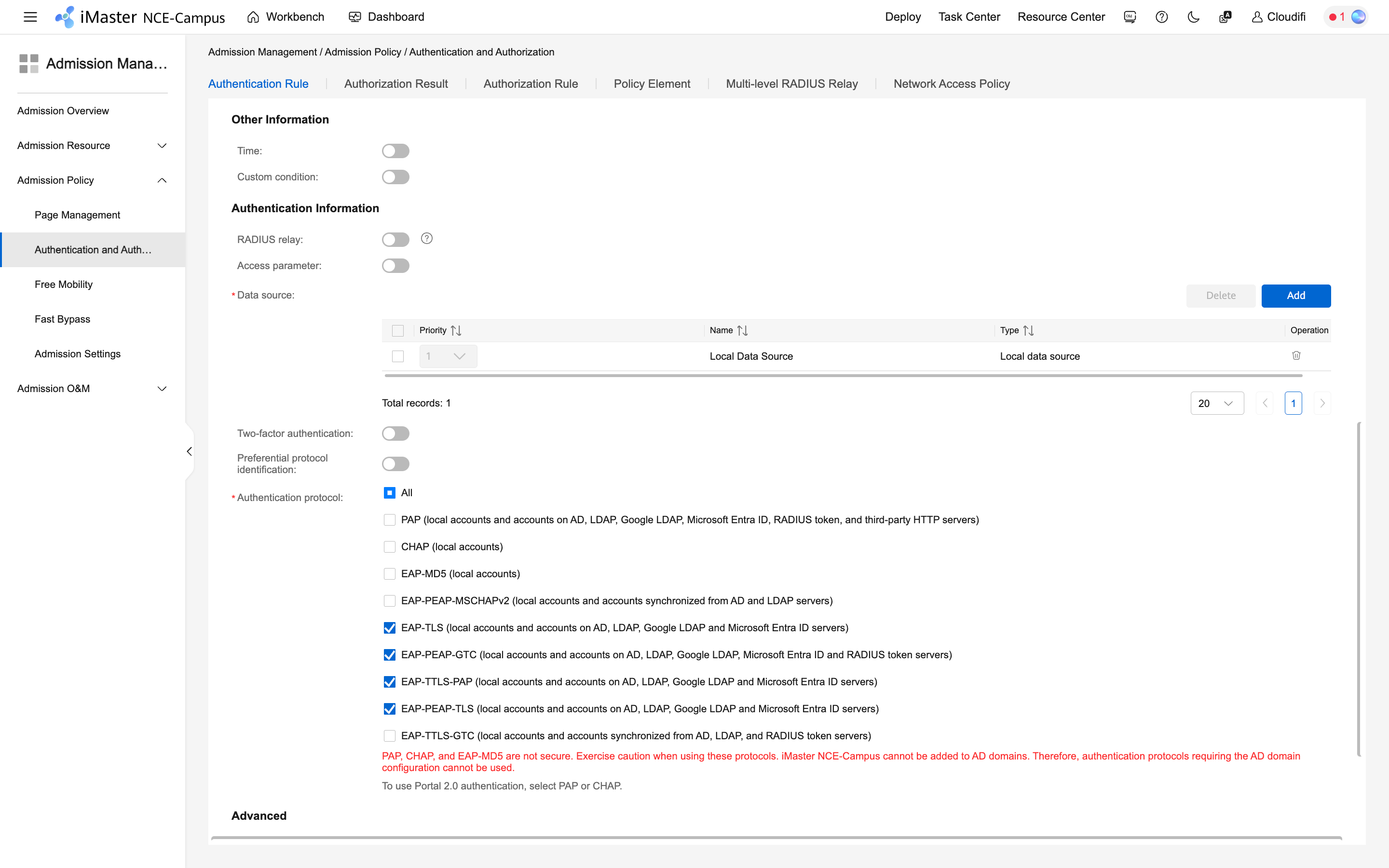

huawei_cloudi-fi_admission management_authentication and authorization_authentication rule_1.png

huawei_cloudi-fi_admission management_authentication and authorization_authentication rule_2.png

huawei_cloudi-fi_admission management_authentication and authorization_authentication rule_3.png

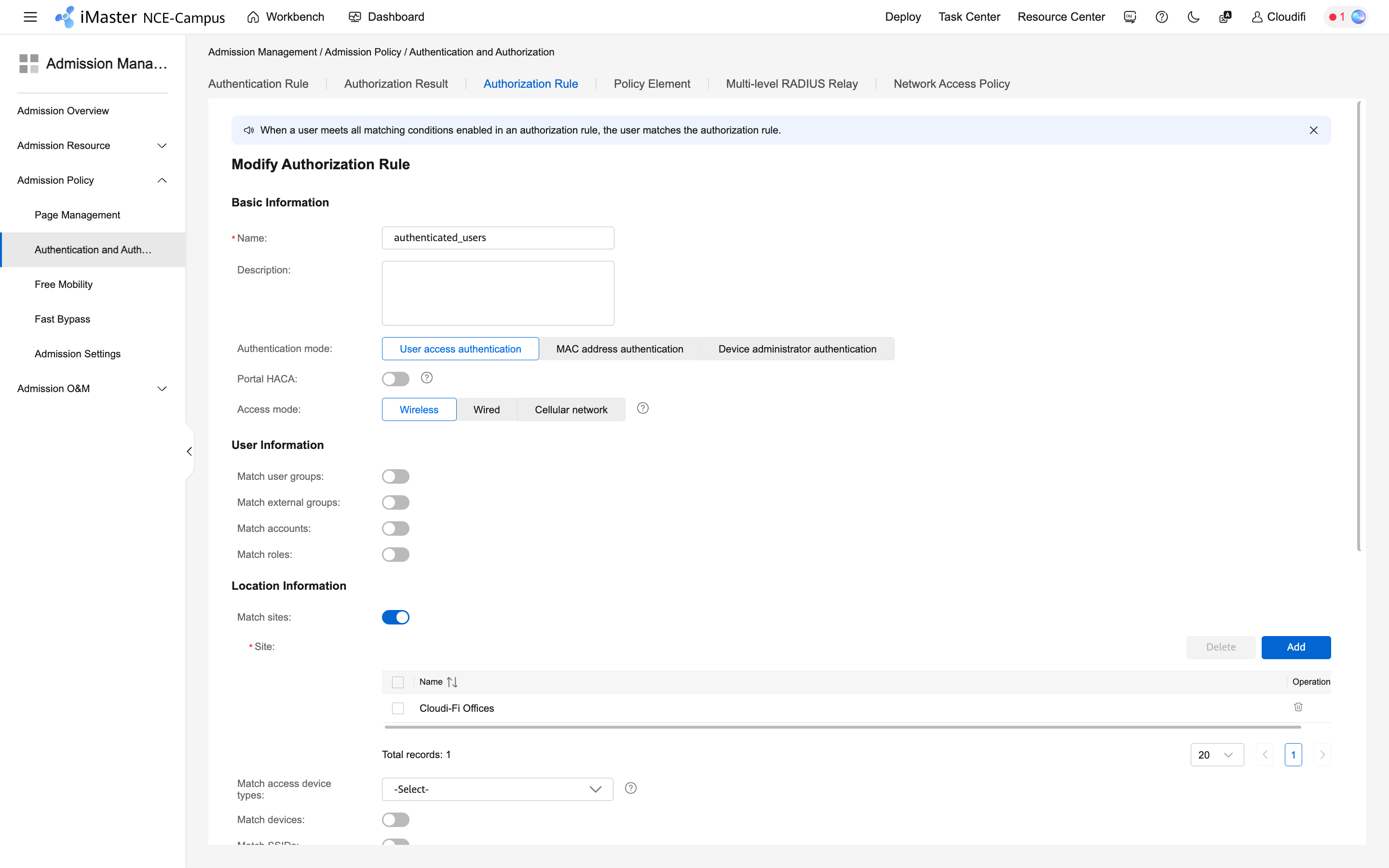

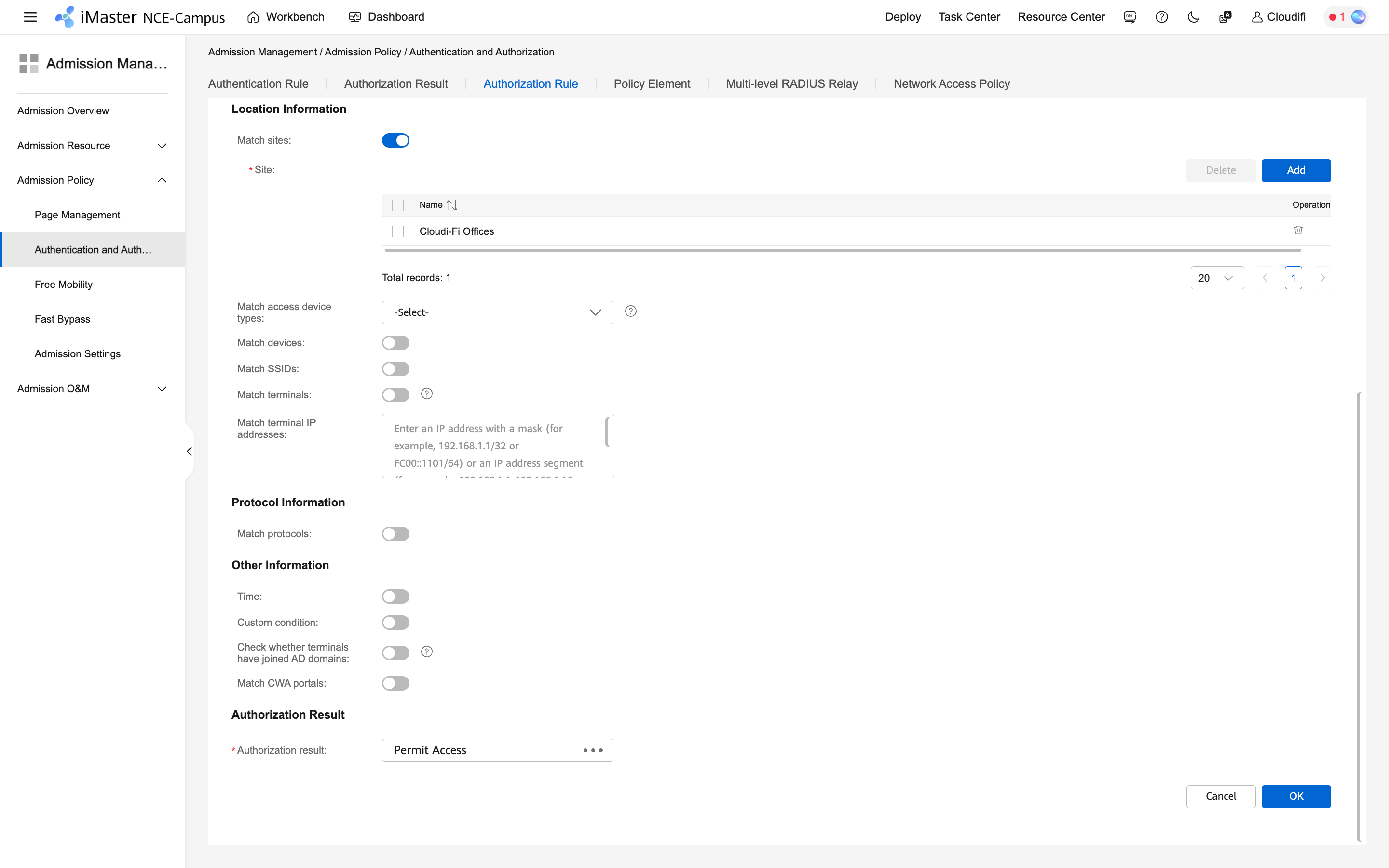

Then go to Authorization Rule and select Create

  • Name : for instance authenticated_users
  • Authentication mode : User access authentication
  • Access mode : Wireless
  • Match site : select your site
  • Authorization result : Permit access

huawei_cloudi-fi_admission management_authentication and authorization_authorization rule_1.png

huawei_cloudi-fi_admission management_authentication and authorization_authorization rule_2.png

Click OK.



What's next?

Following these actions, you can enable the Cloudi-Fi captive portal into your Huawei iMaster NCE-Campus environment and provide a seamless and hassle-free experience for your network users when connecting to the SSID.

Don't hesitate to contact our team (How to contact your support? ) to make the necessary changes to your captive portal or consult the articles in our online knowledge base.
