Overview
When using Cloudi-Fi integrated with Zscaler ZIA, you may notice a virtual location named "Other" listed in the Cloudi-Fi admin console. This article explains what it means, where it comes from, and under what circumstances it appears.
In short: Zscaler automatically creates an "Other" sub-location to catch unmatched traffic. With properly configured Cloudi-Fi DHCP or virtual locations, this "Other" location usually exists but doesn’t handle any traffic and remains unused.
How Cloudi-Fi integrates with Zscaler: The basics
When Cloudi-Fi is deployed alongside Zscaler Internet Access (ZIA), a synchronization process aligns locations between both platforms. Depending on your setup — either using a Zscaler tenant provided by Cloudi-Fi or your own existing Zscaler tenant — virtual locations in Cloudi-Fi appear as sub-locations within a main Zscaler location and vice versa.

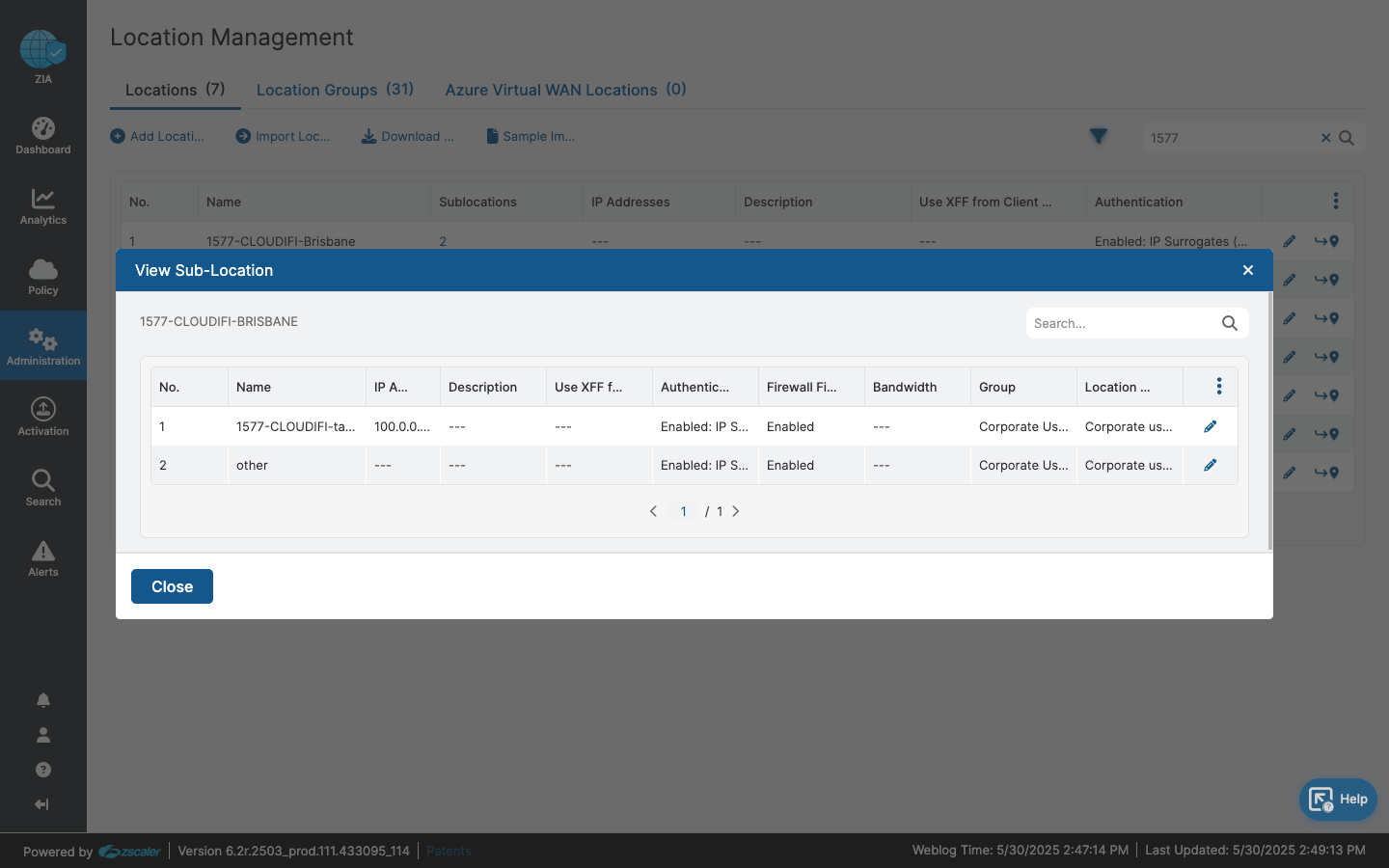

What is the "Other" location in Zscaler?
Zscaler automatically creates a default sub-location called "Other" the moment the first custom sub-location is configured under a main location.
- It acts as a catch-all for any traffic coming from IP addresses not explicitly assigned to a defined sub-location.
- This ensures all traffic is subject to ZIA policies, even if misconfigured or unassigned.
If no custom sub-locations exist, all traffic is handled by the main location, and the "Other" sub-location doesn't appear.
Note: This is a built-in behavior of Zscaler, not specific to Cloudi-Fi.
You may find more information about this behavior from Zscaler's documentation.

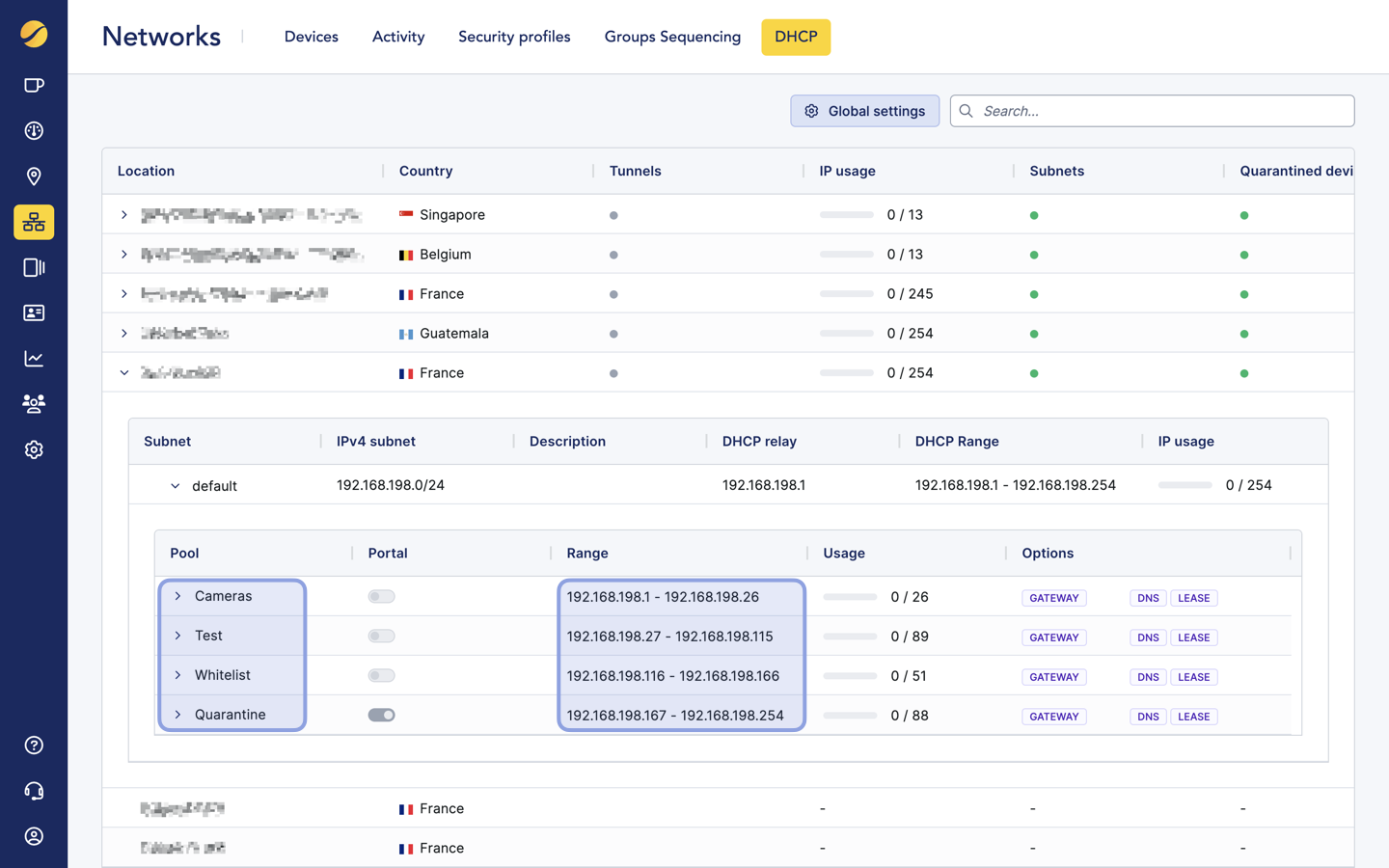

Cloudi-Fi DHCP pools and sub-location mapping
In Cloudi-Fi, a DHCP pool is used to assign IP addresses to specific groups of devices. Each pool maps to a sub-location in Zscaler, which corresponds to a virtual location in Cloudi-Fi.
This means:
- Each security profile you configure in Cloudi-Fi becomes a separate DHCP pool with its own IP range.
- These pools are automatically synced with Zscaler, creating matching sub-locations tied to those IPs.
When does the "Other" virtual location appear?
As explained earlier, the "Other" virtual location may appear on Cloudi-Fi following its automatic creation by Zscaler, after a sub-location is created under a main Zscaler location. In Cloudi-Fi, there are two options where such sub-location can be created, which mean the "other" location will be created as well:
1. When utilizing Cloudi-Fi's Cloud-DHCP service:
In a correctly configured Cloudi-Fi Cloud-DHCP setup:
- All IP ranges are assigned to defined DHCP pools.
- All pools are synced to Zscaler as sub-locations.
- Therefore, no IPs should fall outside of declared sub-locations.
However, if a device has an IP outside the defined DHCP pools, then Zscaler will route that traffic through the "Other" sub-location.
- The "Other" virtual location appears when traffic doesn't match any defined sub-location in Zscaler.
- It is created automatically by Zscaler once a custom sub-location exists.
- In Cloudi-Fi DHCP configurations, where all IP ranges are explicitly defined by the admins, the "Other" sub-location remains unused.

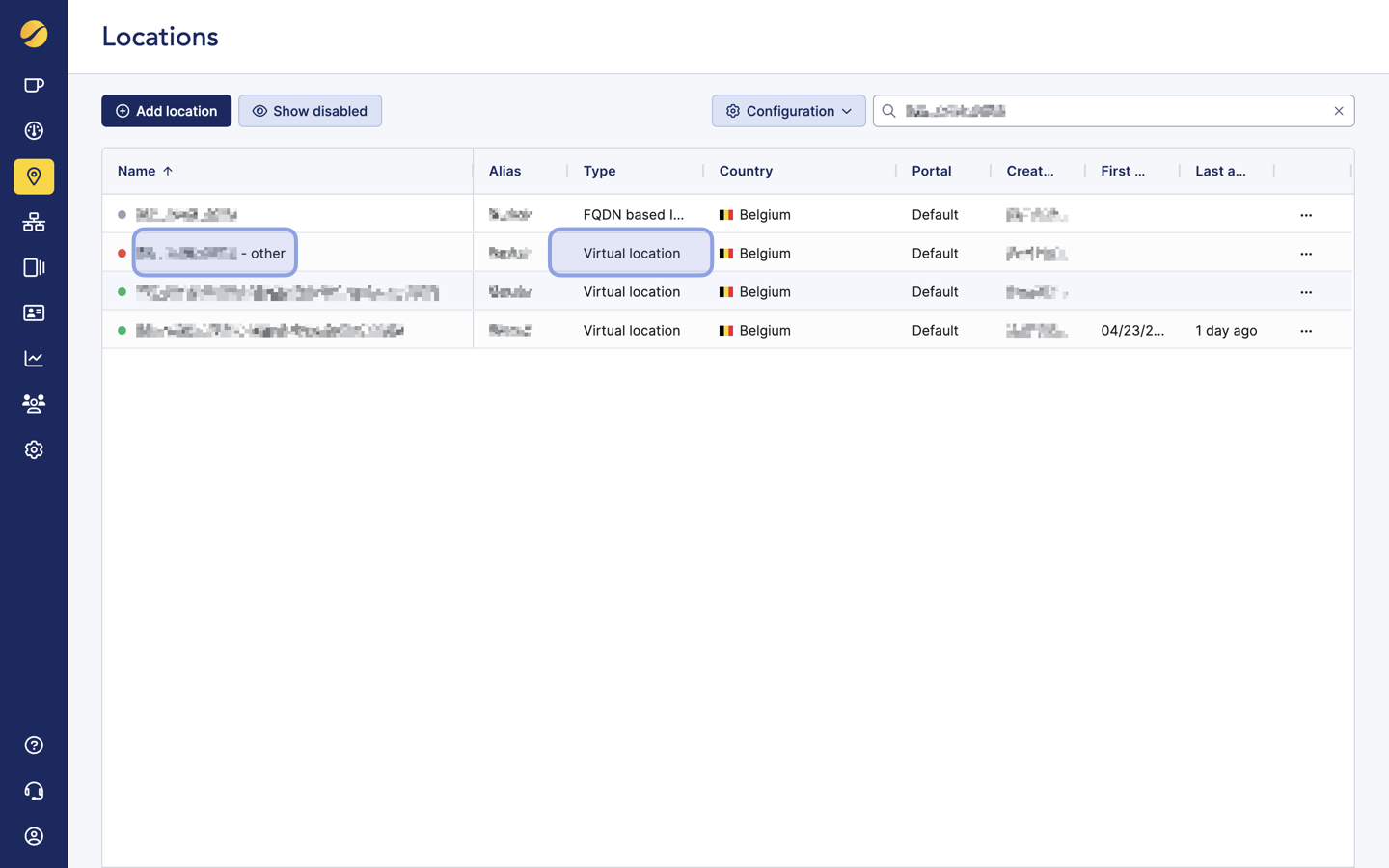

2. When utilizing Cloudi-Fi's virtual location feature:
In Cloudi-Fi, virtual locations are created to address specific situations. A virtual location on Cloudi-Fi is a sub-location within a main Zscaler location (known as a “parent location” on Cloudi-Fi). For instance, an organization may require a device to bypass the captive portal and authenticate automatically (For further information on virtual location scenarios, please refer to the provided link).
In such cases, a virtual location is created on Cloudi-Fi to bypass this traffic. This triggers a sync between Cloudi-Fi and Zscaler, which creates the virtual location as a sub-location in Zscaler. This is followed by the automatic creation of an “other” virtual location on Zscaler, which is being pulled to Cloudi-Fi as part of the integration between the systems.
Summary
When using Cloudi-Fi integrated with Zscaler, the main Zscaler location represents the full site subnet, while sub-locations—created either through DHCP pools or virtual location features—enable more granular policy enforcement. Zscaler automatically generates an "Other" sub-location as a fallback to handle any traffic from IP addresses not explicitly assigned to a defined sub-location.
In DHCP deployments, Cloudi-Fi centrally manages all IP assignments through well-defined pools, so the "Other" location typically remains unused. In virtual location scenarios—such as bypassing captive portal authentication—a sub-location is created intentionally, which also triggers Zscaler to generate the "Other" sub-location automatically.
In both cases, the appearance of the "Other" location is expected behavior from Zscaler, but with correct Cloudi-Fi configuration, it usually does not process any traffic.
