How to set up SAML authentication for your Visitors with OneLogin

Alexandre de THOMASSON
  • Updated
Step-by-step instructions to set up a SAML authentication for your Visitors with Cloudi-Fi and OneLogin.



Use case

The following sections will provide step-by-step instructions to set up a SAML authentication for your Visitors with Cloudi-Fi and OneLogin.



Prerequisites

Captive portal

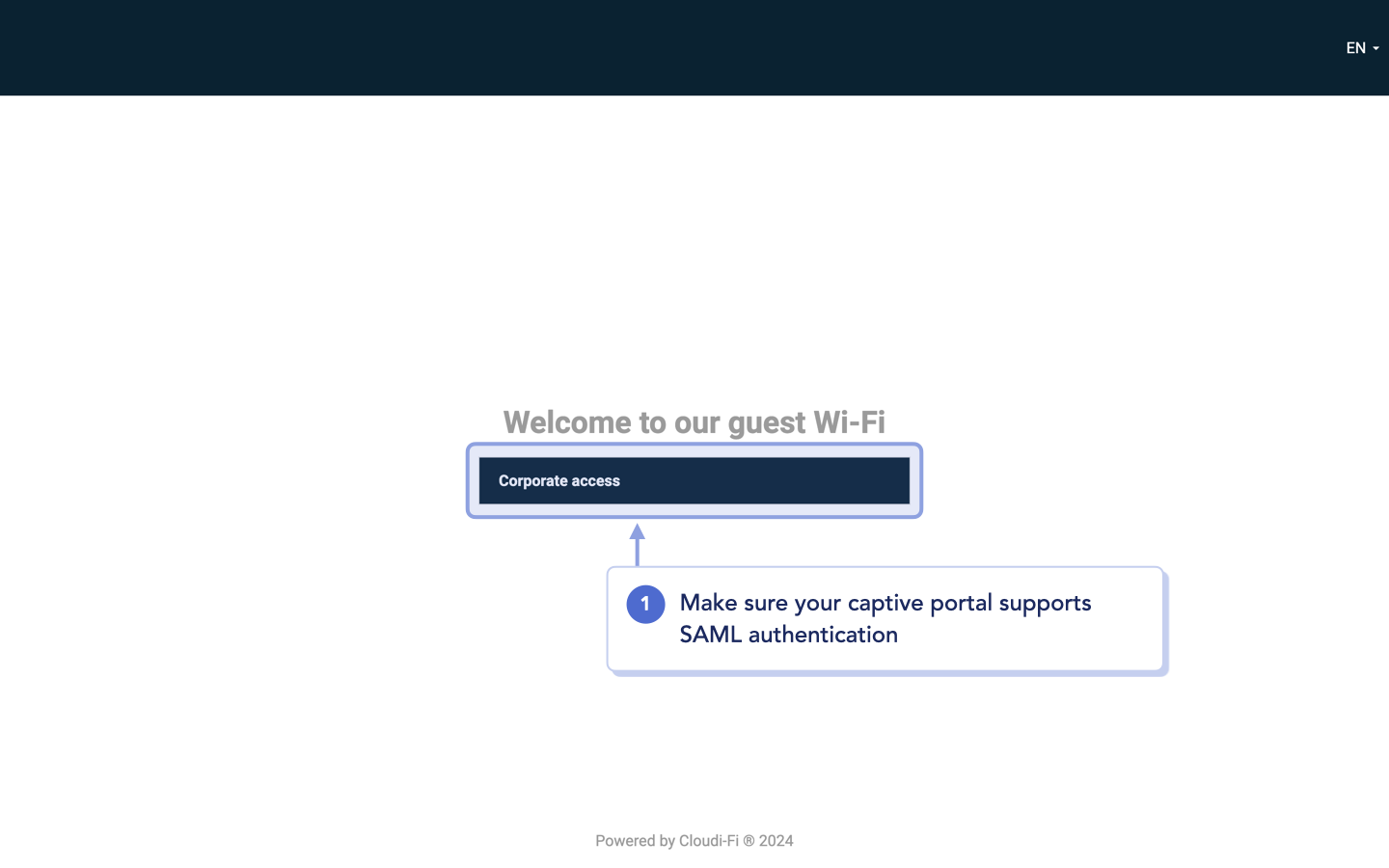

Before starting the configuration, please make sure your captive portal can support SAML authentication. If "Corporate Access" section is not available in your existing captive portal, please contact your Support team to update your captive portal (see How to contact your support?)

cloudi-fi_okta_saml_captive portal.png



Walled garden

Be sure to add the following OneLogin domains listed in Set up a walled garden for your captive portal

Warning: for Zscaler do not add the * as it does not recognise this character



SAML URL

  • Navigate to the Cloudi-Fi Admin user interface (UI)
  • Go to "Configuration" > "Auth modes" > "SAML"
  • Collect the necessary information

Linkback URL

https://login.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/************

*****  is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account).

Cloudi-Fi Entity ID

https://login.cloudi-fi.net/

If "SAML" is not available, please open a ticket to Cloudi-Fi Support (How to contact your Cloudi-Fi support ?).



1. Create your OneLogin SAML application

  • Go to your OneLogin portal

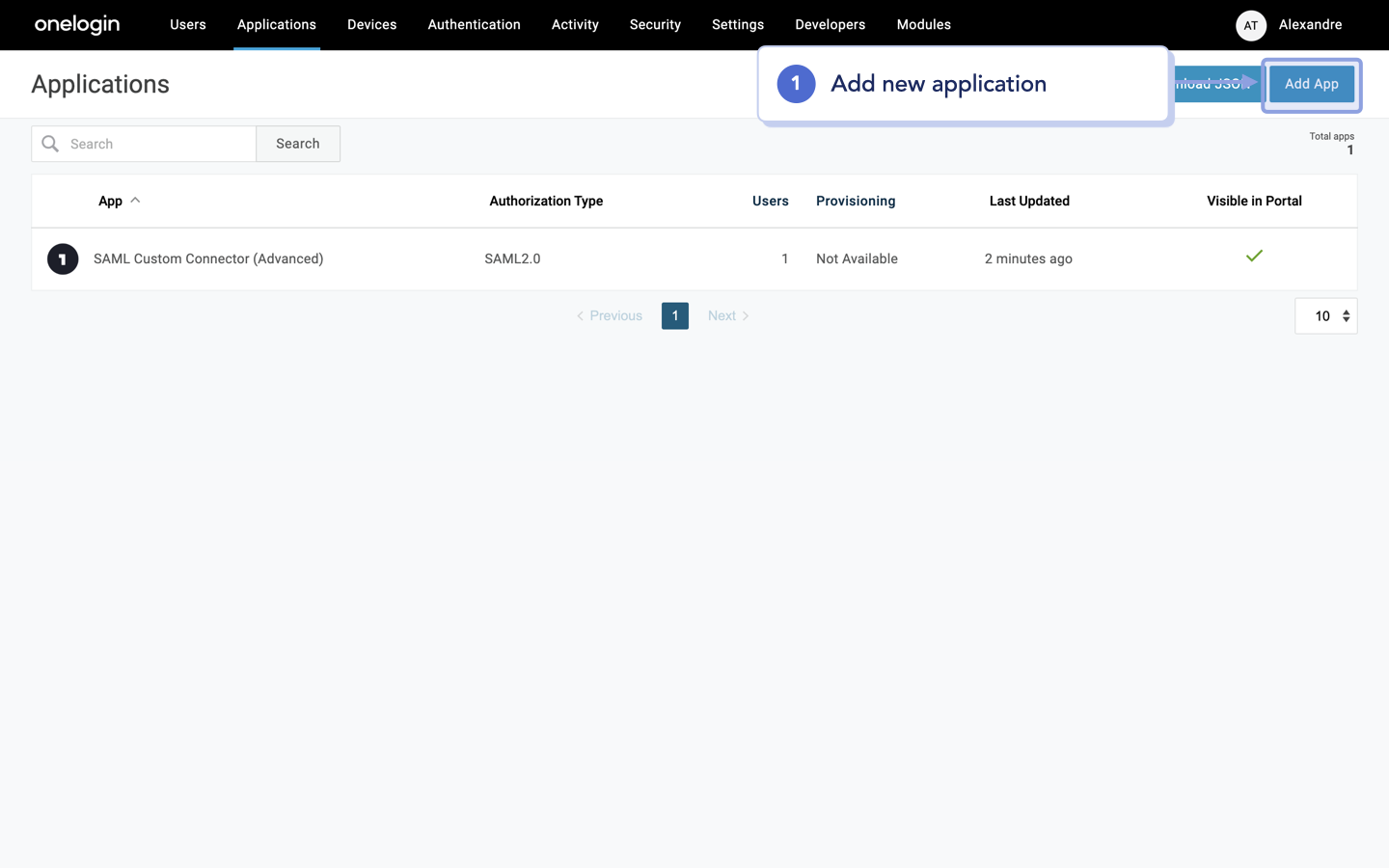

  • Go to the Application section, and add a new application.

cloudi-fi_onelogin_samI_create a new application_add.png

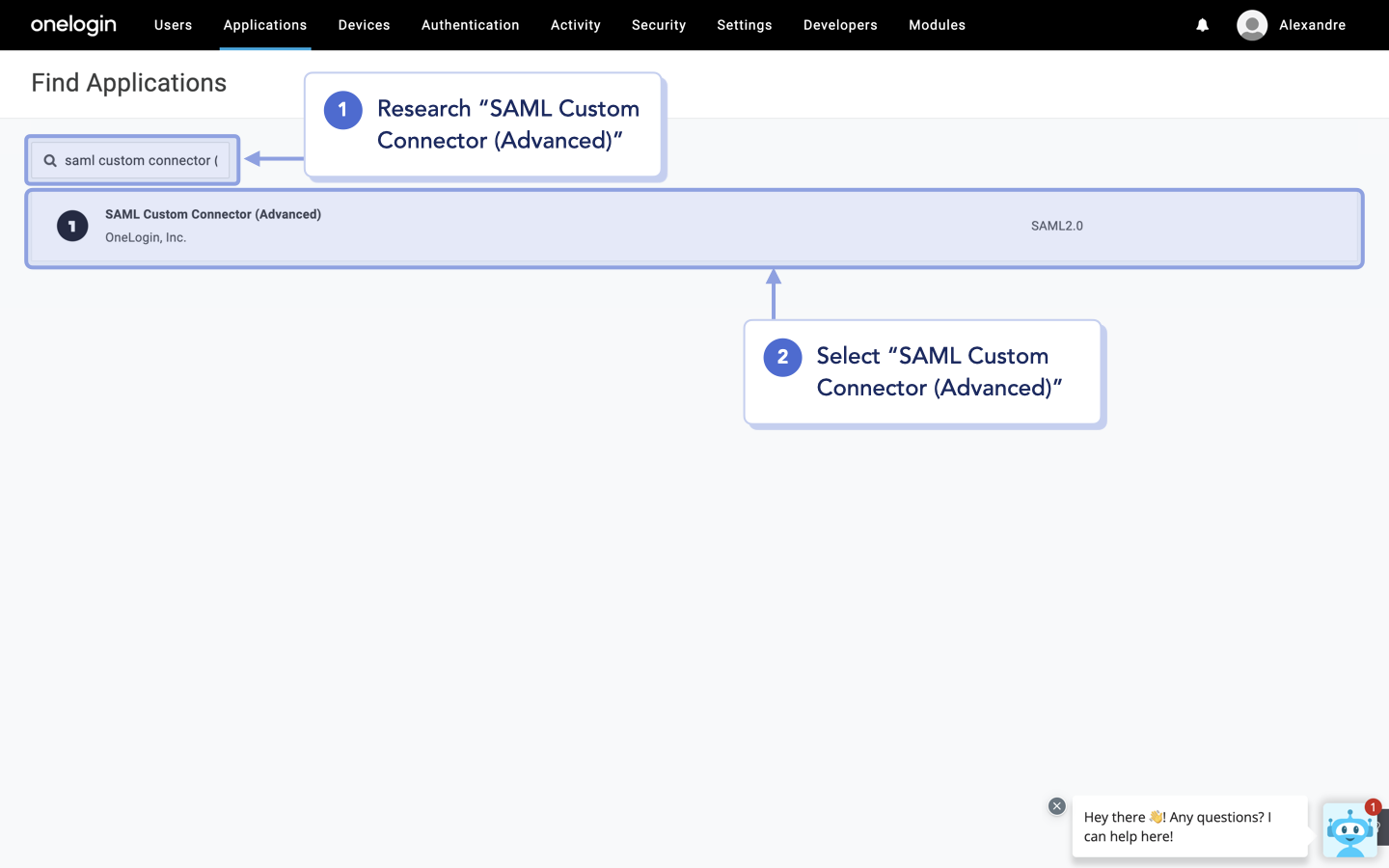

Then, research "SAML Custom Connector (Advanced)"

cloudi-fi_onelogin_samI_create a new application_search.png

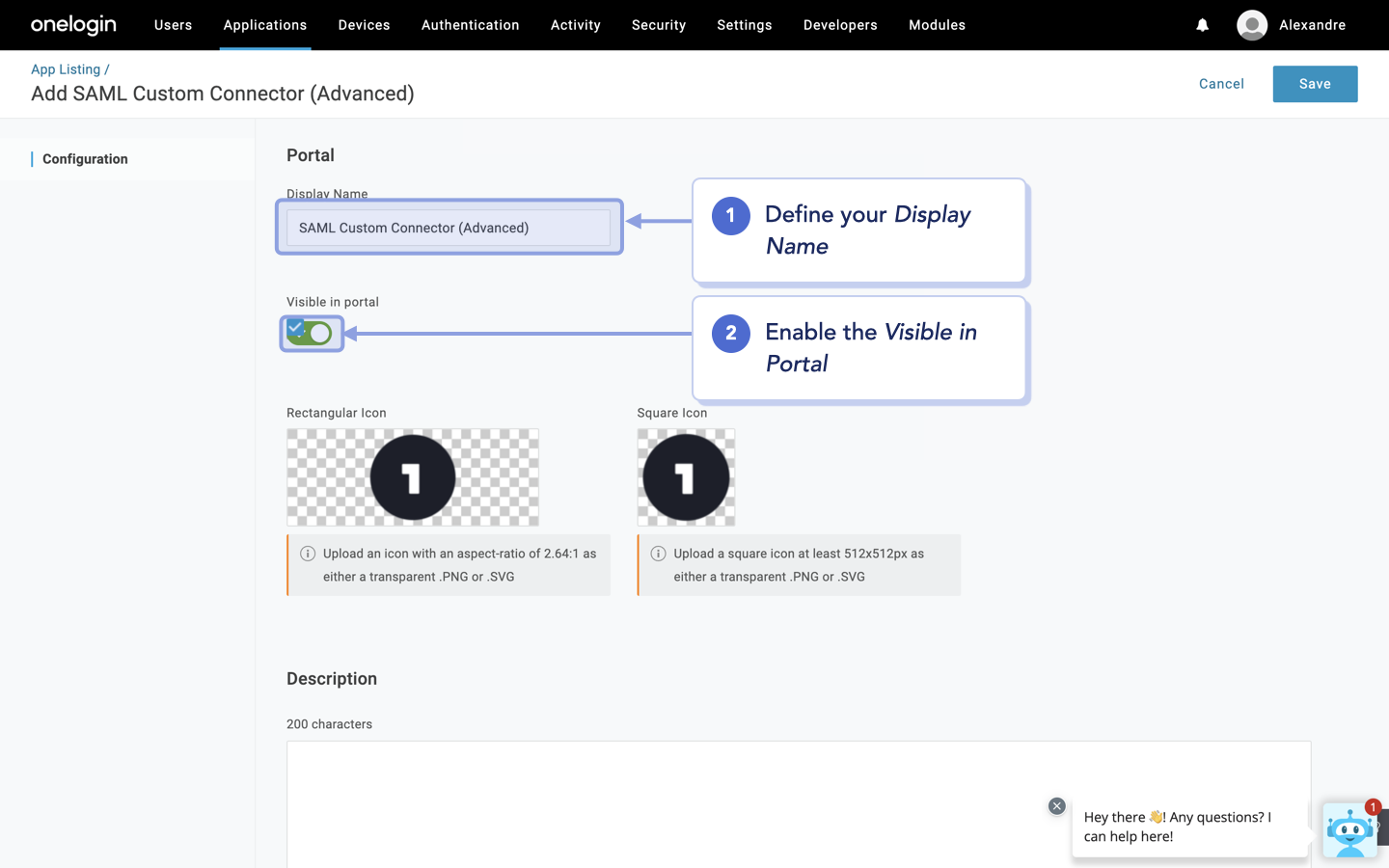

In the Configuration section, define your "App name" (for instance: Cloudi-Fi Guest SAML), enable "Visible in Portal" and Save.




In the Configuration section

  • Audience (EntityId) : Cloudi-Fi Entity ID (https://login.cloudi-fi.net/)
  • Recipient : Linkback URL (https://login.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key> ) - see SAML URL
  • ACS URL : Linkback URL (https://login.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key> ) see SAML URL
  • SAML NameID: Email

cloudi-fi_onelogin_samI_configuration_application details.png



cloudi-fi_onelogin_samI_configuration_application details_2.png

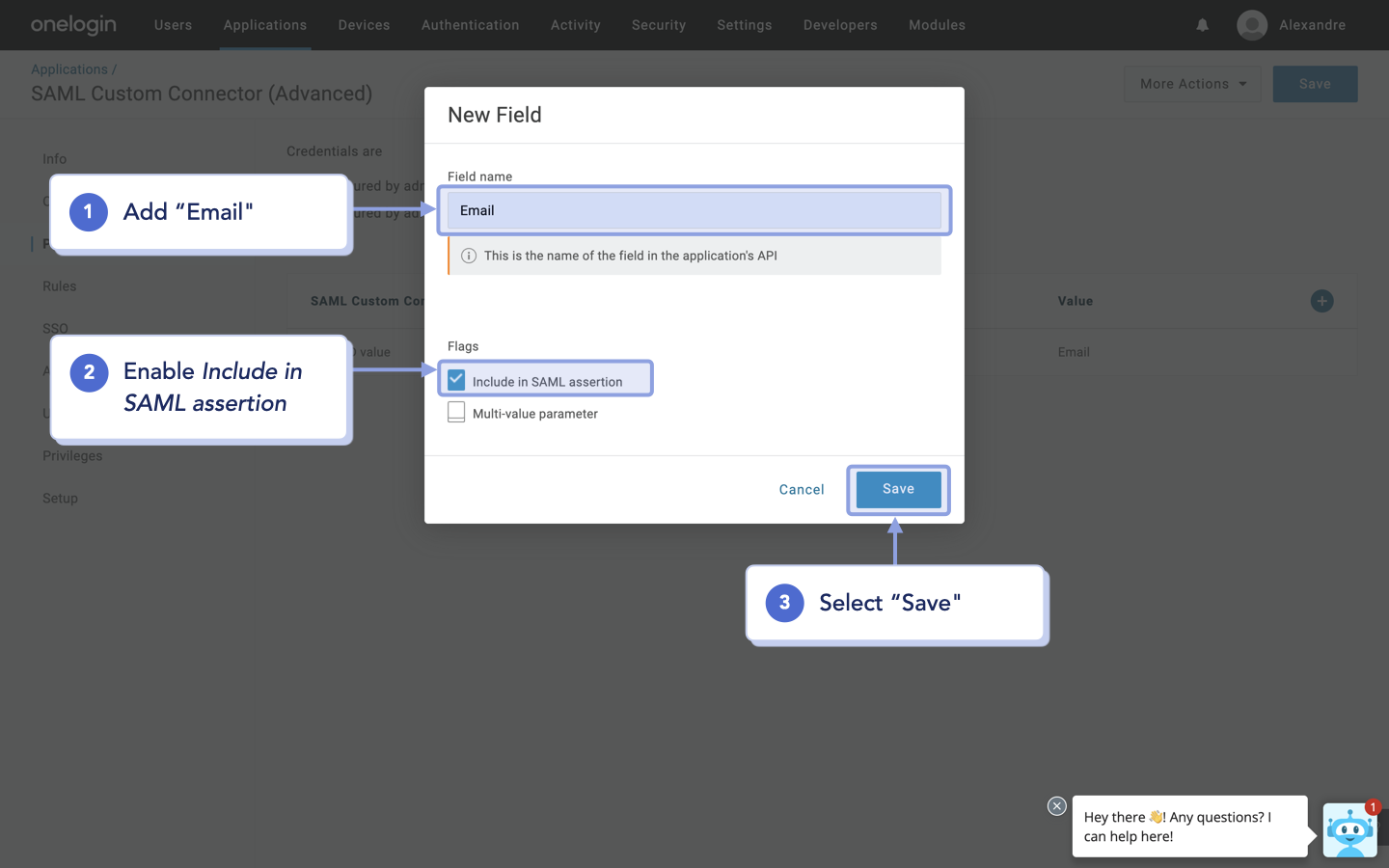

In the Parameters section, add a new field.


Then add "Email" as Field Name, enable Include in SAML assertion and Save.




Then select Email value and Save.

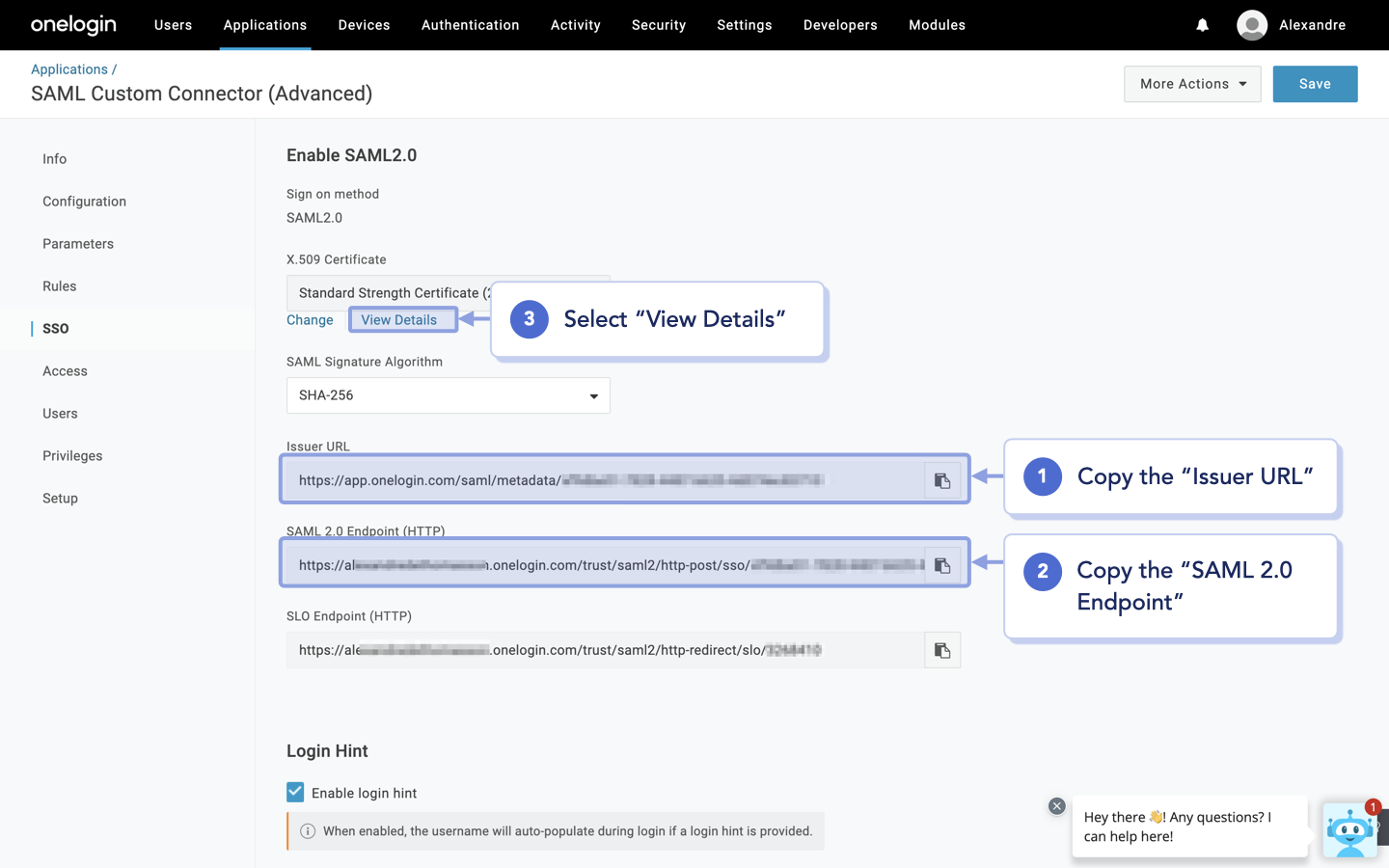

Now your Cloudi-Fi application is created on OneLogin, click "SSO" to retrieve technical information to be configured on the Cloudi-Fi portal. Here are needed information:

  • Issuer URL
  • SAML 2.0 Endpoint

Then got to "View details" and copy the X.509 certificate.







2. Cloudi-Fi configuration

To start step 2, make ensure you have all of these information

Issuer URL
SAML 2.0 Endpoint

Attributes_name
(in OneLogin)		 Attributes_name
(in Cloudi-Fi)		 Details
ACS URL Linkback URL
https://login.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key>
Recipient Linkback URL
https://login.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/saml/<company_key>
Audience (EntityId) Cloudi-Fi Entity ID
https://login.cloudi-fi.net/
SAML 2.0 Endpoint

IdP EntityID


https://*******.onelogin.com/trust/saml2/http-post/sso/******************
Issuer URL IdP Endpoint
https://app.onelogin.com/saml/metadata/*****************
X.509 Certificate IDP Signing Certificate (X509 (Base64)
SAML NameID Email_address Claims
Email



Navigate to the Cloudi-Fi Admin user interface (UI)
Access "Configuration > Auth modes > SAML"
Enter the required values into the respective fields

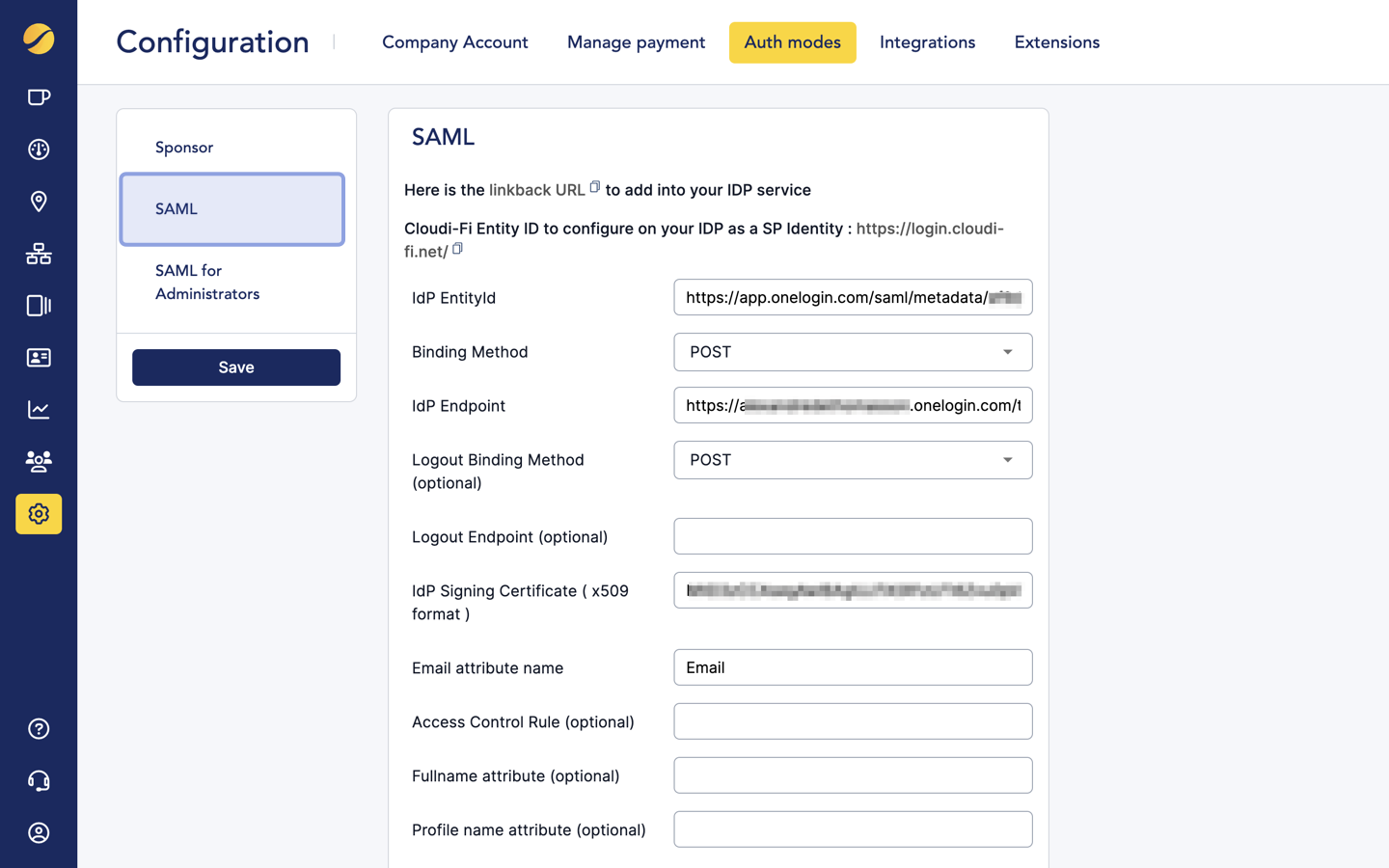

cloudi-fi_settings_auth mode_saml_onelogin_1.png

cloudi-fi_settings_auth mode_saml_onelogin_2.png



Fill out the form as described below with details previously retrieved on OneLogin:

  • IdP EntityId: SAML 2.0 Endpoint
  • Binding Method: POST
  • IdP Endpoint: Issuer URL
  • Logout Binding Method: POST
  • IdP Signing Certificate: X.509 Certificate without "Begin Certificate" and "End certificate" markers
  • Email attribute name: Email

Finally, click on Save



Troubleshooting

OneLogin redirection

When a Visitor accesses the Captive portal, he clicks on "Corporate Access," but he is not redirected to the OneLogin Authentication page.

Please check that the traffic to OneLogin URLs is allowed. (see Walled Garden).



OneLogin error message

A Visitor accesses the Captive portal, clicks "Corporate Access," and is redirected to the OneLogin authentication Page. He fills out his (address and password) and Signs. Then, he is redirected to a OneLogin Error Page.

Please replay the process, perform an HTTP capture (Perform a Web Request capture in the web browser), and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?).



What's next?

Congratulations on enabling SAML authentication with OneLogin for your Visitors.
