How to Integrate Ubiquiti Controller with Cloudi-Fi (Legacy) – Cloudi-Fi Knowledge Base

Describes how to configure your Ubiquiti Controller to enable Cloudi-Fi’s captive portal.

Integration tested on
Uniti       - 6.1.71 - 6.5.55 - 7.0.23
UAP-AC-Lite - 5.43.35.12698

Configuration time: 20 minutes

This setup consists of the main parts:

Use case

Prerequisites

Step 1: Get Cloudi-Fi required URL

Step 2: Get Radius information

Step 3: Basic captive portal setup

Step 4: Add a new Radius Server Profile

Step 5: Assign Radius and set the white list

Step 6: Deploy customized portal pages

Step 7: (optional) Install a public certificate

Troubleshooting

What’s Next?

Use case:

The following sections will provide step-by-step instructions to enable Cloudi-Fi cloud-based WiFi Captive portal service with your existing Ubiquiti architecture.

Prerequisites:

Before starting, ensure that you have the following prerequisites:

A Ubiquiti access point.
Access to the Ubiquiti Controller/dashboard.
Knowledge of your network’s IP addressing scheme.

Step 1: Get Cloudi-Fi required URL

Location URL: this URL will be used to configure an External Captive Portal

Access the Cloudi-Fi administration console
Select the location
Click on the menu button for the location
Select "Copy Splash page URL"

Cloudi-Fi Get captive portal url.png

Step 2: Get Radius information

You will need the Radius information (Server IPs, Secret, Ports) to proceed with the setup.

IPs address of the Radius servers
Ports: UDP 1812 (Authentication) & 1813 (Accounting)
The Secret (provided by Cloudi-Fi Support)

You can get the Secret by asking in the Chatbot, Cloudi-Fi’s Support team will provide you with the necessary information.

Cloudi-Fi - Get Radius information for Ubiquiti

What shared secret is used for the Radius server with Ubiquiti? (Please save this confidential information securely, and do not share it publicly.)

Step 3: Basic captive portal setup

Go to Settings Guest Control Guest Policies:

Enable Guest Portal: checked
Authentication: Hotspot
Default Expiration: 8 hours
Landing Page Promotional URL: "https://login.cloudi-fi.net/success.php"
Redirection Use Secure Portal - checked
Redirection Redirect using hostname: "Hostname of your Ubiquiti Controller" (a valid certificate has to be installed if you don't have any certificate go to section 6)

Captive portal Customization:

Override templates with custom changes: checked.

Here is a screenshot of the described configuration

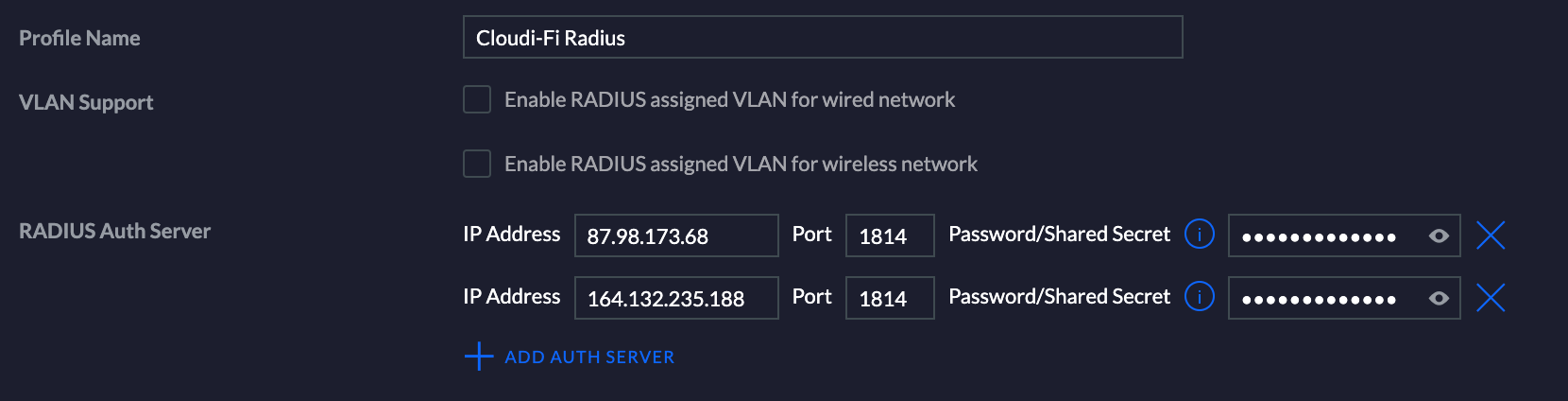

Step 4: Add a new Radius Server Profile

Settings Profiles Radius Create a new radius profile:

Name: Cloudi-FI Radius
The Cloudi-Fi Support team will provide IP Address, Port and Secret
Save

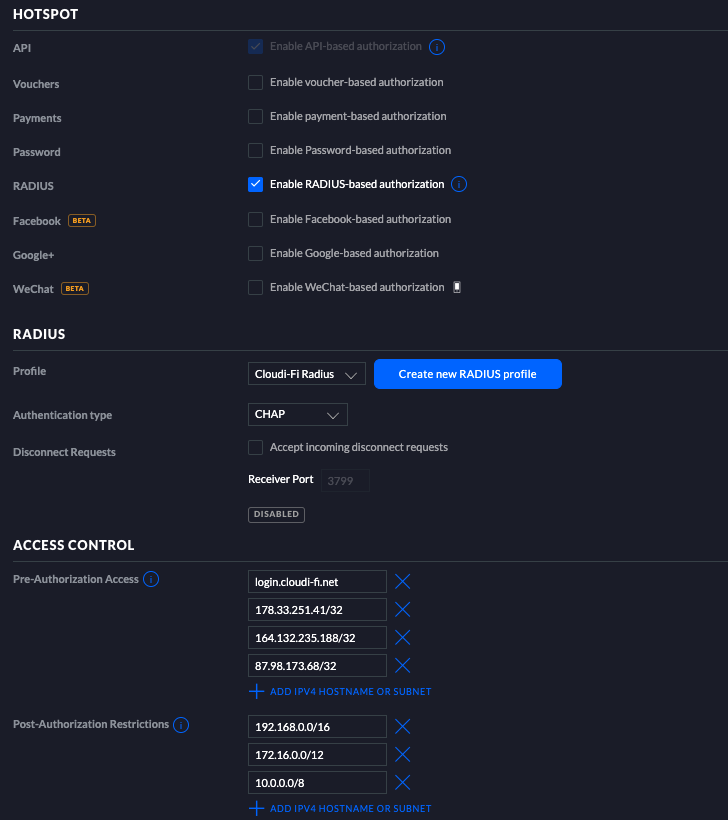

Step 5: Assign Radius and set the white list

Go back to Settings Guest Control Hotspot:

Disable All options except Radius
Radius: checked

Settings Guest Control Radius:

Profile: Cloudi-Fi Radius
Authentication type: CHAP

Settings Guest Control Access Control:

178.33.251.41/32
login.cloudi-fi.net
login-cn.cloudi-fi.net

Step 6: Deploy customized portal pages

To trigger the Cloudi-Fi portal, a custom web page has to replace the default Ubiquiti Hotspot Portal page for each site where Cloudi-Fi is enabled.

Please take note of the "ch" attribute value from the Splash Page URL retrieved on the first step from the Cloudi-Fi Administration Console.

Replace the "" markup by the "ch" attribute value in the following code and save the code to "index.html" file.

Index.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Guest WiFi</title>
    <script src="cloudifi_unifi.js"></script>
  </head>
  <body>
  <script>
  	var redirectPortal=buildRedirect();
  	window.location.replace(redirectPortal);
  </script>
  </body>
</html>

Cloudifi_unifi.js

var portail="https://login.cloudi-fi.net/start/ch/
/sp/spubiquitiredirect.com";

var Base64 = {
    _keyStr: "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/=",
    encode: function(e) {
        var t = "";
        var n, r, i, s, o, u, a;
        var f = 0;
        e = Base64._utf8_encode(e);
        while (f <e.length) {="{">
            n = e.charCodeAt(f++);
            r = e.charCodeAt(f++);
            i = e.charCodeAt(f++);
            s = n  2;
            o = (n & 3) <><4 |="|" r="r"> 4;
            u = (r & 15) <><2 |="|" i="i"> 6;
            a = i & 63;
            if (isNaN(r)) {
                u = a = 64
            } else if (isNaN(i)) {
                a = 64
            }
            t = t + this._keyStr.charAt(s) + this._keyStr.charAt(o) +
                this._keyStr.charAt(u) + this._keyStr.charAt(a)
        }
        return t
    },
    decode: function(e) {
        var t = "";
        var n, r, i;
        var s, o, u, a;
        var f = 0;
        e = e.replace(/[^A-Za-z0-9\+\/\=]/g, "");
        while (f <e.length) {="{">
            s = this._keyStr.indexOf(e.charAt(f++));
            o = this._keyStr.indexOf(e.charAt(f++));
            u = this._keyStr.indexOf(e.charAt(f++));
            a = this._keyStr.indexOf(e.charAt(f++));
            n = s <><2 |="|" o="o"> 4;
            r = (o & 15) <><4 |="|" u="u"> 2;
            i = (u & 3) <><6 |="|" a;="a;">
            t = t + String.fromCharCode(n);
            if (u != 64) {
                t = t + String.fromCharCode(r)
            }
            if (a != 64) {
                t = t + String.fromCharCode(i)
            }
        }
        t = Base64._utf8_decode(t);
        return t
    },
    _utf8_encode: function(e) {
        e = e.replace(/\r\n/g, "\n");
        var t = "";
        for (var n = 0; n <e.length; n++)="n++)" {="{">
            var r = e.charCodeAt(n);
            if (r <128) {="{">
                t += String.fromCharCode(r)
            } else if (r  127 && r <2048) {="{">
                t += String.fromCharCode(r  6 | 192);
                t += String.fromCharCode(r & 63 | 128)
            } else {
                t += String.fromCharCode(r  12 | 224);
                t += String.fromCharCode(r  6 & 63 | 128);
                t += String.fromCharCode(r & 63 | 128)
            }
        }
        return t
    },
    _utf8_decode: function(e) {
        var t = "";
        var n = 0;
        var r = c1 = c2 = 0;
        while (n <e.length) {="{">
            r = e.charCodeAt(n);
            if (r <128) {="{">
                t += String.fromCharCode(r);
                n++
            } else if (r  191 && r <224) {="{">
                c2 = e.charCodeAt(n + 1);
                t += String.fromCharCode((r & 31) <><6 |="|" c2="c2" &="&" 63);="63);">
                n += 2
            } else {
                c2 = e.charCodeAt(n + 1);
                c3 = e.charCodeAt(n + 2);
                t += String.fromCharCode((r & 15) <><12 |="|" (c2="(c2" &="&" 63)="63)"><><>
                    6 | c3 & 63);
                n += 3
            }
        }
        return t
    }
}

function getQueryParams(parameterName) {
	var result = null,
        tmp = [];
    	var items = location.search.substr(1).split("&");
    	for (var index = 0; index <items.length; index++)="index++)" {="{">
        	tmp = items[index].split("=");
        	if (tmp[0] === parameterName) result = decodeURIComponent(tmp[1]);
    	}
    	return result;
}

function buildRedirect(){
	var ap_identifier=getQueryParams("ap");
	var client_mac=getQueryParams("id");
	var ssid=getQueryParams("ssid");
	var url_post=getQueryParams("url");
	var auth=window.location.protocol + '//' + window.location.host + window.location.pathname + 'signin.html';
	var t=getQueryParams("t");
	var redirect= portail + "?ap=" + ap_identifier + "&id=" + client_mac + "&login_url=" + auth + "&ssid=" + ssid + "&t=" + t;
	return redirect;
}

function doSignin(){
	var dataJson=Base64.decode(getQueryParams("params"));
	var success_url=getQueryParams("next_url");
    var failure_url=portail;
	var xhr = new XMLHttpRequest();
   	xhr.open("POST", "login", true);
   	xhr.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
   	xhr.onload = function (e) {
        if (xhr.readyState === 4 && xhr.status === 200) {
            var res = JSON.parse(xhr.responseText);
            if (res && res["meta"]) {

                if (res["meta"]["rc"] && res["meta"]["rc"] == "ok") {
                    window.location.replace(success_url);
                } else {
                    if (res["meta"]["msg"]) {
                        window.location.replace(failure_url + '&Error=' + res["meta"]["msg"]);
                    } else {
                        window.location.replace(failure_url + '&Error=Ubiquiti+Unknown+Error');
                    }
                }
            } else {
                window.location.replace(failure_url);
            }
		}
   	};
   	try {
      		var resp = xhr.send(dataJson);
   	} catch(err){
      		console.log(err);
   	}
}

Signin.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Guest WiFi</title>
    <script src="cloudifi_unifi.js"></script>
  </head>
  <body>
  <script>
	doSignin();
  </script>
  </body>
</html>

Copy the files into
UniFi Cloud Key: /srv/unifi/data/sites//portal

Debian: /usr/lib/unifi/data/sites//app-unifi-hotspot-portal/

Mac: /Applications/UniFi.app/Contents/Resources/data/sites//portal

Windows: :\Users\\Ubiquiti UniFi\data\sites\\portal

Step 7: (optional) Install a public certificate

Cloudi-Fi provides a Keystore that can be deployed directly on your Unifi server; get in touch in our chat to get the Keystore.

To generate and install your certificate, follow the following guideline by clicking this link.

Troubleshooting:

If you still encounter any issues during the setup or operation, follow Cloudi-Fi's first-level troubleshooting guide. If you still face issues, we invite you to contact the Cloudi-Fi support team.

What’s Next?

Congratulations on configuring your Ubiquiti Controller with Cloudi-Fi!
