How to enable Cloudi-Fi with Cisco Catalyst 9800 Series Wireless Controllers

Step-by-step instructions to set up a Radius-based captive portal with Cisco Catalyst 9800 Series Wireless Controllers and Cloudi-Fi for user authentication.



Table of contents

Use case

Prerequisites

Step 1: Get Cloudi-Fi required URL

Step 2: Get Radius information

Step 3: Configure a Web Auth

Step 4: Configure a Radius server

Step 5: Configure ACL

Step 6: Configure WLAN

Step 7: Configure Walled Garden and Radius Accounting

Step 8: Configure Tags & Profiles

Step 9: Allow HTTP/HTTPS

Troubleshooting

What's Next ?



Use Case

The following sections will provide step-by-step instructions to enable Cloudi-Fi cloud-based WiFi Captive portal service with your existing Cisco Catalyst 9800 Series Wireless Controllers.



Prerequisites

Before starting, ensure that you have the following prerequisites:

• Access to Cloudi-Fi's admin console
• Cloudi-Fi Radius IPs and Secret
• Access to your Cisco Catalyst 9800 Series Wireless Controllers
• Knowledge of your network’s IP addressing scheme.
• Access to your firewall to allow several ports :

Source	Destination	Port	Protocol	Action	Comment
Guest subnet	Cloudi-Fi Radius IPs	1812-1813	UDP	Allow	RADIUS traffic
Guest subnet	Any	80	TCP	Allow	HTTP traffic
Guest subnet	Any	443	TCP	Allow	HTTPS traffic
Guest subnet	Any	53	UDP/TCP	Allow	DNS resolution
*	*	*	*	Deny	To be adjusted according to your needs



Step 1: Get Cloudi-Fi required URL



Step 2: Get Radius information

You will need the Radius information (Server IPs, Secret, Ports) to go ahead with the setup.

1. IPs address of the Radius servers
2. Ports: UDP 1812 (Authentication) & 1813 (Accounting)

You can get the Secret by asking in the Chatbot, Cloudi-Fi’s Support team will provide you with the necessary information.

1. What shared secret is used for the Radius server with WLC 9800? (Please save this confidential information securely, and do not share it publicly)



Step 3: Configure a Web Auth

Go to WLC UI > Security > Web Auth. Click on Global profile and ensure the below :

• Virtual IPv4 Address: 192.0.2.1

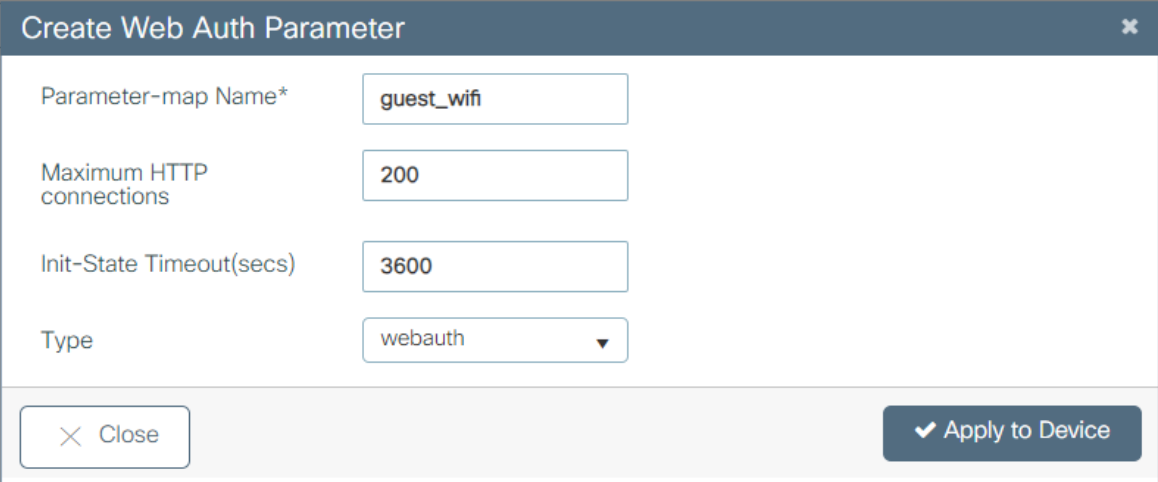

Then click on “Add” button and configure as described below :

• Parameter-map name: guest_wifi
• Maximum HTTP connections: 200
• Init-State Timeout: 3600
• Type: webauth

Apply to device

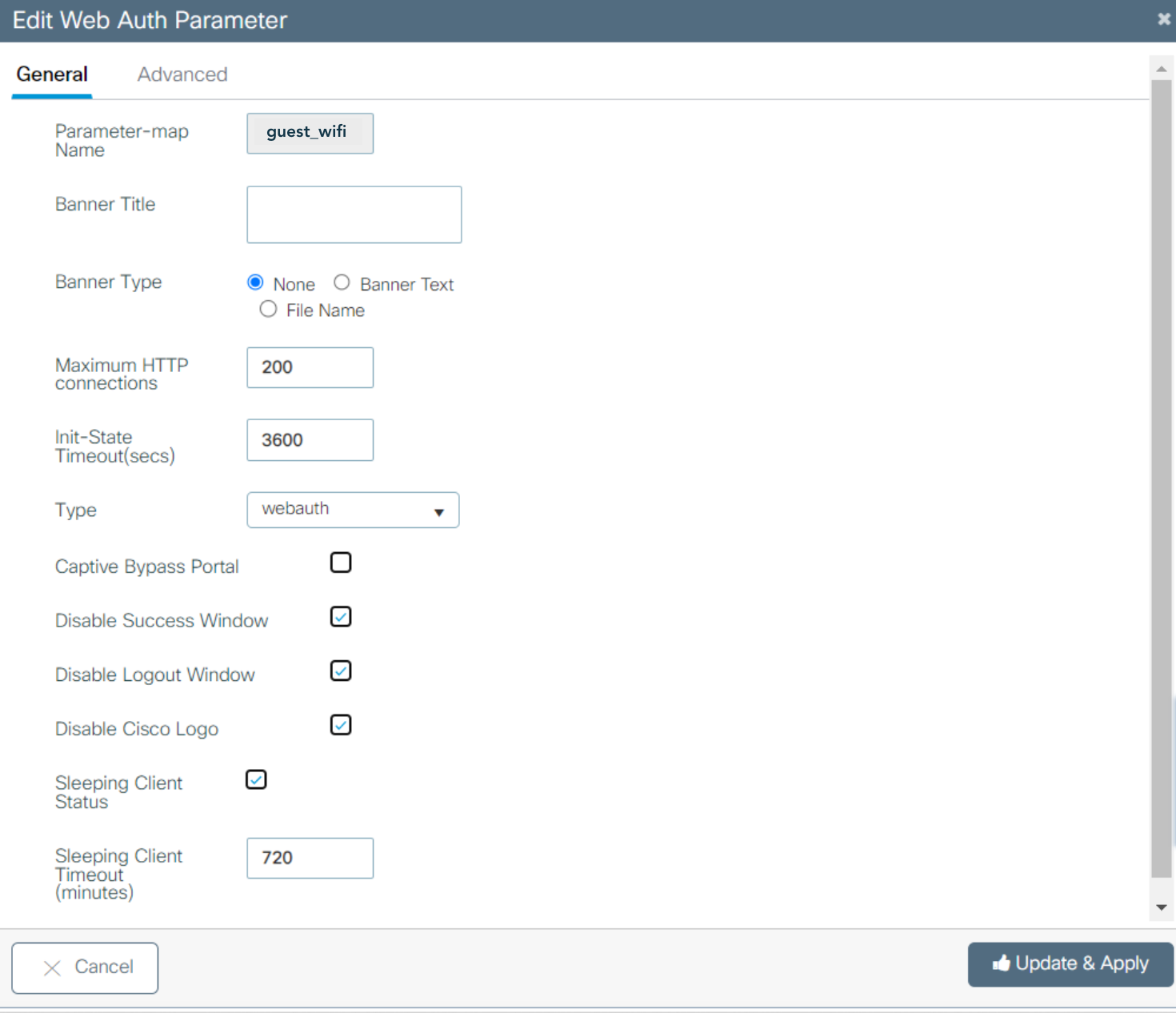

You can click on the object you have created (“guest_wifi) and modify the below.

• On the General Tab :
  • Banner Type: None
  • Turn-on Consent with Email: Disabled
  • Captive Bypass Portal: Disabled
  • Disable Success Window: Enabled
  • Disable Logout Window: Enabled
  • Sleeping Client Status: Enabled
  • Sleeping Client Timeout: 720
• On the Advanced Tab:
  • Redirect for log-in: Splash page URI copied from the Cloudi-Fi interface (see Step 1: Get Cloudi-Fi required URL)
  • Redirect On-Success: https://login.cloudi-fi.net/success.php
  • Redirect On-Failure: Splash page URI copied from the Cloudi-Fi interface
  • Redirect Append for AP MAC Address: ap_mac
  • Redirect Append for Client MAC Address: client_mac
  • Redirect Append for WLAN SSID: wlan_ssid
  • Portal IPV4 Address: 178.33.251.41

Apply to Device



Step 4: Configure a Radius server

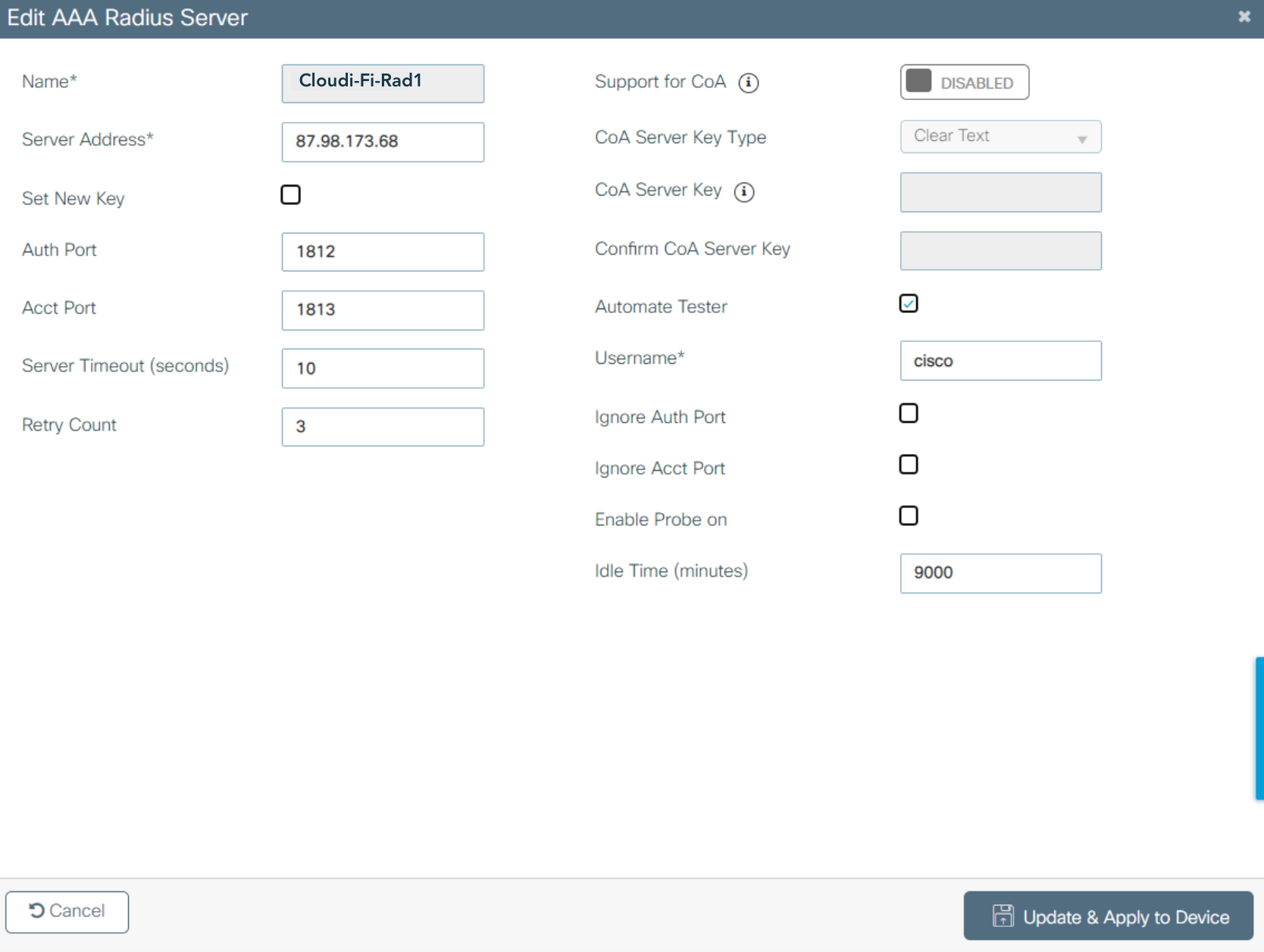

Go to WLC UI > Configuration > Security > AAA > Servers / Groups > Server and add:

• Name: Cloudi-Fi-Rad1
• IPv4 / IPv6 Server Address: Primary IP
• Key Type: 0
• Key: Shared Secret (see Step 2: Get Radius Information)
• Confirm Key: Shared Secret
• Auth Port: 1812
• Acct Port: 1813
• Server Timeout: 10
• Retry Count: 3
• Support for CoA: Disabled

Apply to Device

You can add additional Radius server (see RADIUS & SYSLOG servers)



Then go to WLC UI > Configuration > Security > AAA > Servers / Groups > Server Groups and add

• Name: Cloudi-Fi_Radius
• Group Type: RADIUS
• MAC-Delimiter: hyphen
• MAC-Filtering: none
• Assigned Servers: Cloudi-Fi-Rad1, Cloudi-Fi-Rad2

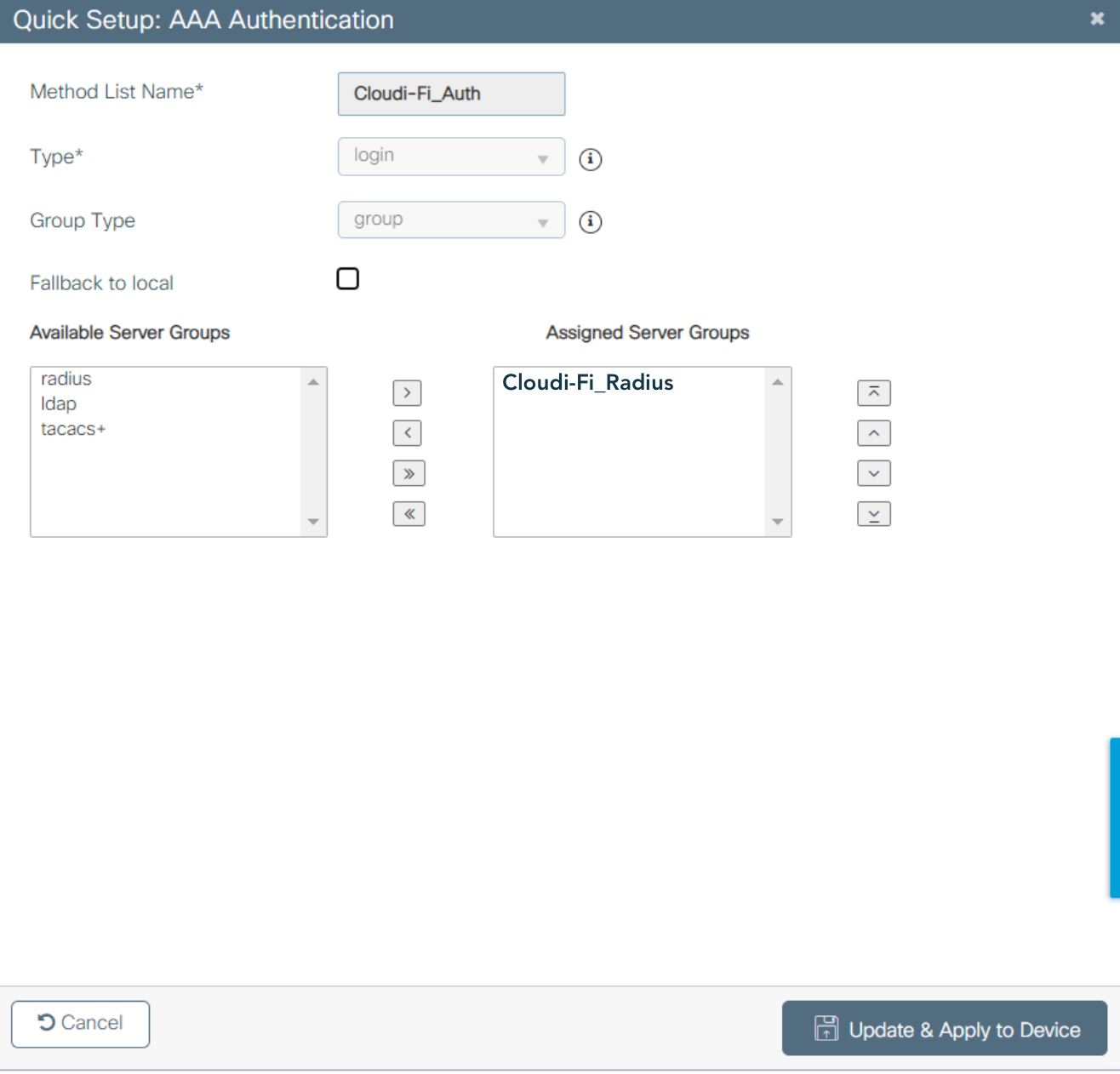

Then go to WLC UI > Configuration > Security > AAA > AAA Method lists > Authentication and add

• Method List Name: Cloudi-Fi_Auth
• Type: login
• Group Type: Group
• Assigned Server Groups: Cloudi-Fi_Radius



Then go to WLC UI > Configuration > Security > AAA > AAA Method lists > Accounting and add

• Method List Name: Cloudi-Fi_Acct
• Type: Identity
• Assigned Server Groups: Cloudi-Fi_Radius



Then go to WLC UI > Configuration > Security > AAA > AAA Advanced > Global Settings and configure both Accounting and Authentication with:

• Call Station ID: ap-macaddress-ssid
• Call Station ID Case: upper
• MAC-Delimiter: hyphen
• Username Case: lower
• Username Delimiter: none



Step 5: Configure ACL

Go to WLC UI > Configuration > Security > ACL and create a new ACL

• ACL Name: Cloudi-Fi_ACL

Sequences	Action	Source IP	Destination IP	Protocole	Destination port
1	permit	Any	104.26.4.244	ip	None
2	permit	Any	104.26.5.244	ip	None
3	permit	Any	172.67.70.238	ip	None
4	permit	Any	178.33.251.41	ip	None
5	permit	Any	47.57.139.198	ip	None
6	permit	Any	your DNS servers	udp	eq domain
7	permit	Any	54.37.221.71	udp	1812-1813
8	permit	Any	87.98.173.68	udp	1812-1813
9	permit	Any	47.57.139.198	udp	1812-1813
10	deny	Any	Any	ip	None

If you added more than 2 Radius servers (in step 4), you will need to add sequences after Seq9 with Radius_IP added.



Step 6: Configure WLAN

Go to WLC UI > Configuration > Tags & Profiles > WLANs and add or edit an existing WLAN :

• On the General tab:
  • Profile Name: e.g. Cloudi-Fi_Guest
  • SSID: YOUR_SSID_NAME
  • Status: Enabled
  • Radio Policy: All
  • Broadcast SSID: Enabled

• On Security Layer 2 tab:
  • Layer 2 Security Mode: None
  • MAC Filtering: Disabled



• On Security Layer 3 tab:
  • Web Policy: Enabled
  • Web Auth Parameter Map - guest_wifi
  • Authentication List - Cloudi-Fi_Radius
  • On Mac Filter Failure - Disabled
  • Splash Web Redirect - Disabled
  • IPv4 ACL - Cloudi-Fi_ACL



Apply to Device



Step 7: Configure Walled Garden and Radius Accounting

Go to WLC UI > Configuration > Security > URL Filters and add :

• List Name: WalledGarden
• Type: PRE_AUTH
• Action: PERMIT
• URLs:
  • 178.33.251.41
  • login.cloudi-fi.net
  • login-cn.cloudi-fi.net
  • *.cloudi-fi.net

Apply to device

Then go to WLC UI > Configuration > Tags & Profiles > Policy and add

• On the General tab:
  • Name: guest_policy
  • Status: Enabled
• On the Access Policies tab:
  • URL Filters: WalledGarden
• On the Advanced tab:
  • Session Timeout: 43200
  • Idle Timeout: 3600
  • Allow AAA Override: Enabled
  • Accounting List: Cloudi-Fi_Acct

Apply to device



Step 8: Configure Tags & Profiles

Go to WLC UI > Configuration > Tags & Profiles > Tags and add:

• Name: guest_tag
• WLAN Profile: Cloudi-Fi_Guest
• Policy Profile: guest_policy

Apply to Device



Step 9: Allow HTTP/HTTPS

Go to WLC UI > Administration > Management > HTTP/HTTPS/Netconf and ensure the following:

• HTTP Access: Enabled
• HTTPS Access: Enabled

Make sure to Save the Configuration to ensure your changes are persisted on reboot.



Troubleshooting:

Cloudi-Fi first level troubleshooting guide

See HERE



Test Radius server

Before testing user credentials, make sure that the Radius Server is already configured and there are no connectivity issues between the WLC and Radius Server.

In order to check the Radius server user credentials, you can follow use the command

test aaa radius

(see Cisco documentation)



Certifications issues

A certificate error page is displayed on your screen when connected to the Guest SSID. TLS/SSL certificates secure internet connections by encrypting your data. They ensure data is transmitted privately, without modification, loss, or theft. Adding a certificate to your network environment will ensure a safer internet experience for your users.

Please follow this article Add a certificate on a Cisco Wireless Controller (Cisco 9800)



What's Next ?

Congratulations on enabling the captive portal with your cisco WLC 9800! For more information on the Cisco technology partnership, how-to video, and solution brief, please visit our partner page here.
