Describes how to configure your Commscope Ruckus Cloud environment to enable Cloudi-Fi's captive portal.

1. Get Cloudi-Fi required URL and RADIUS secret

Location URL: this URL will be used to configure an External Captive Portal

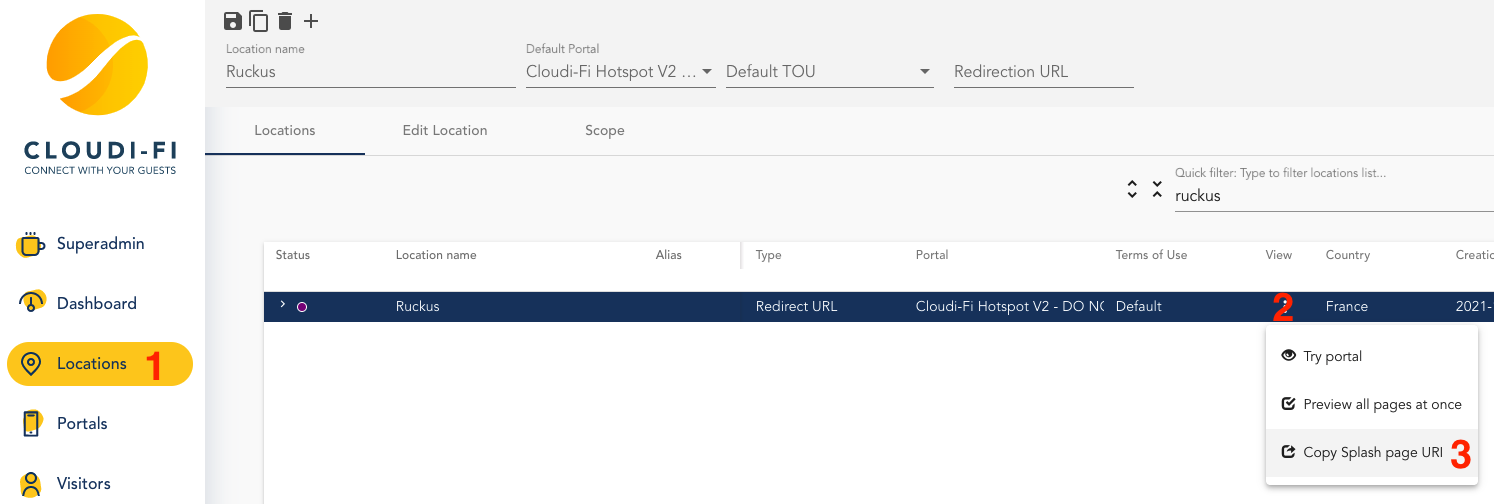

• Cloudi-Fi administration Locations Click on the menu button of the location and select Copy Splash page URI.





• Transform the URI as following

Company Key :

• Go to Settings Company Account and copy the Cloudi-Fi Public Key

2. SSID Configuration

Go to Wireless Networks on the left side menu Add a new Network and configure with the below settings.

On the Network Details tab:

• Network Name: Your SSID Name

• Network Type: Captive Portal

On the Portal Type tab:

• Select 3rd Party Captive Portal (WISPr)

On the Settings tab:

• Portal Provider: Cloudi-Fi

• Captive Portal URL: Splash page URI copied from the Cloudi-Fi interface

• Integration Key: Make sure to save it, you’ll need to enter it on the Cloudi-Fi admin console (see next steps)

• Walled Garden:

  • *.cloudi-fi.net

  • *.cloudi-fi.com

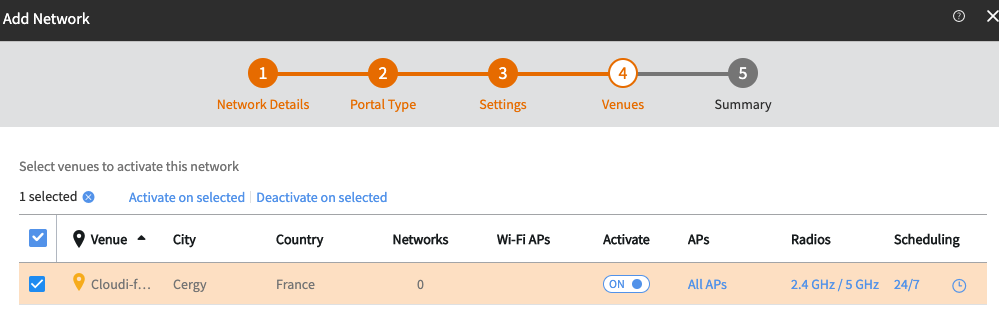

On the Venues tab:

• Select the Venues for which you want to activate the captive portal

• Make sure the Activate option is On





3. Provide Integration Key to Cloudi-Fi

Go to Cloudi-Fi Administration interface Settings Integrations Commscope Ruckus SmartZone.

• Local Smart Zone controller: Disabled

• NBI Password: Type the Integration Key

If you have any questions, please contact us - How to contact your support?
