In this article, you will learn how to enable the Cloudi-Fi captive portal on EnGenius and configure your SSID

This setup consists of below main parts:

1. Get Cloudi-Fi required information

2. Create a new project

3. Create a captive portal

4. Configure your SSID

1. Get Cloudi-Fi required URL

Location URL: this URL will be used to configure an External Captive Portal

• Cloudi-Fi administration Locations Click on the menu button of the location and select Copy Splash page URL.

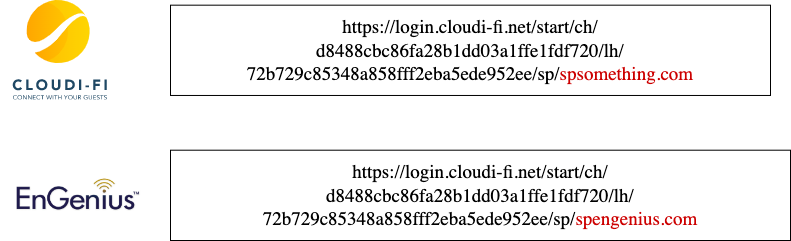

Transform the URI as follows.

Radius Server Information

• Use the chatbot interface and ask for the Radius IPs and secret

2. Create a new project

Go to your EnGenius interface.

Go to Project Create New Project, then name your Project.

3. Create the captive portal

Click on Hotspot Service Captive Portal, then add a new one.

We'll see two Authentication Types.

• The first one is the RADIUS.

Choose a name for your portal, select RADIUS Server as your Authentication Type, then paste the server’s address and the RADIUS’ secret provided by Cloudi-Fi.

• The second Authentication Type is the Splash & go.

For this one, you only have to check the Splash & go's box.

Now we can configure the Splash Page.

Paste your modified URI in the External Splash Page URL box.

Enable the Walled Garden and add these hosts :

• *.cloudi-fi.com

• *.cloudi-fi.net

You can now apply this portal to your SSID

4. Configure your SSID

On Device Management Device Config, select your Device Name

Enable your SSID, choose a name, enable the Captive Portal and select your previously created profile

You can enable Traffic Shaping if you want to add some limits to your users.
