Prerequisites :
-
Have an Okta account with application creation, right
-
Cloudi-Fi administrator account
-
SAML module activated in your Cloudi-Fi settings
1) Get your Cloudi-Fi Company Key
A trust must be established between Cloudi-Fi and Okta to allow authentication.
To set up this trust, you'll need to provide Okla with your Cloudi-Fi Company Key.
In the Cloudi-Fi admin portal, go to Settings and note your Company Key.
2) Okta service configuration
-
Connect to your Okta portal and switch to "Admin" mode.
-
Go to the Application section, create a new one.
-

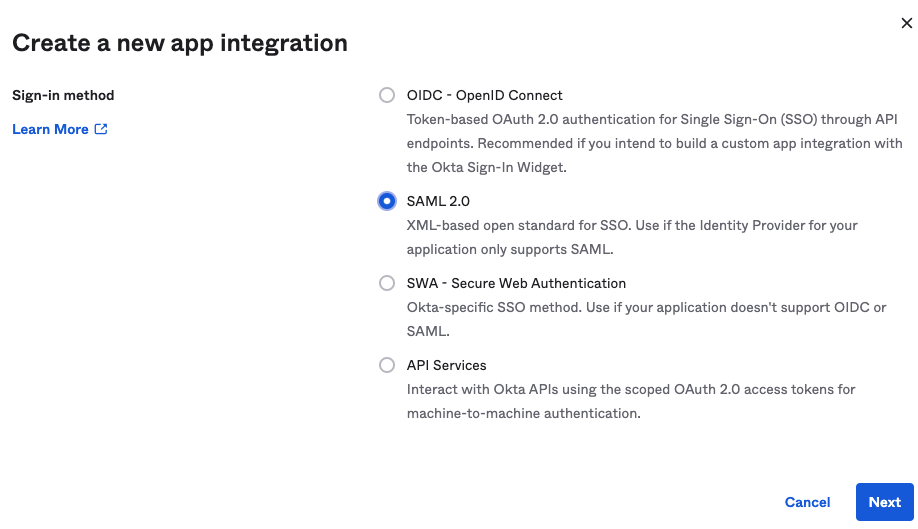

Click on "Create a new Application Integration."
-
Select SAML 2.0

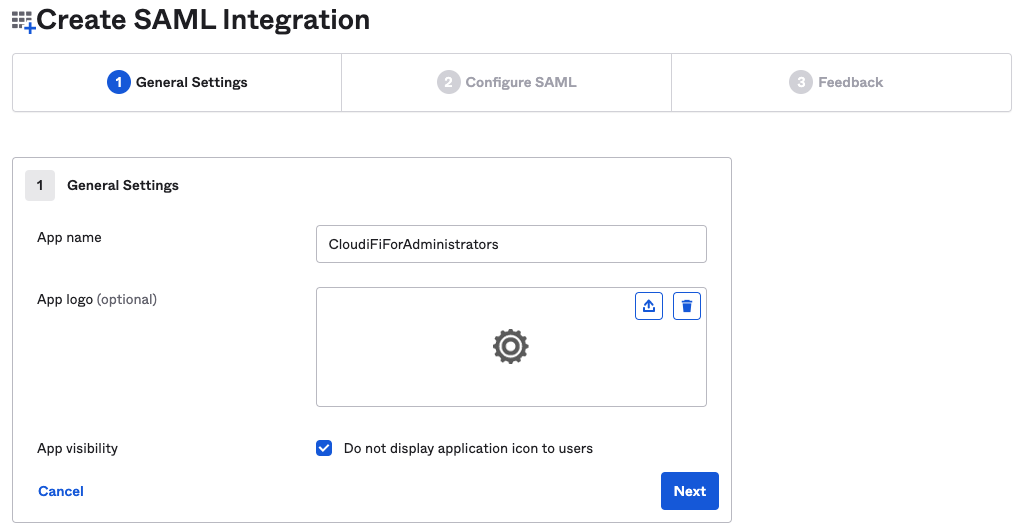

On the General Settings page:
-
App name: CloudiFiForAdministrators
-
And click on Next

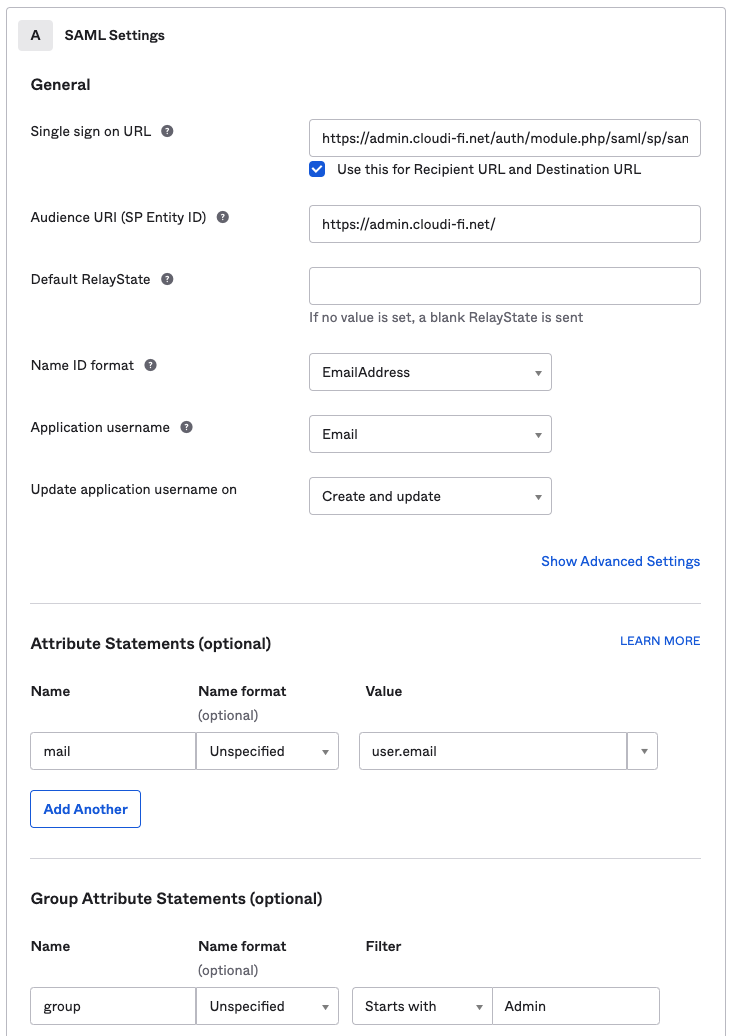

In Configure SAML page :
-
Single sign on URL: add the Cloudi-Fi SAML URL and replace it with your Cloudi-Fi Company Key
https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin/-
Complete the other fields as follows:

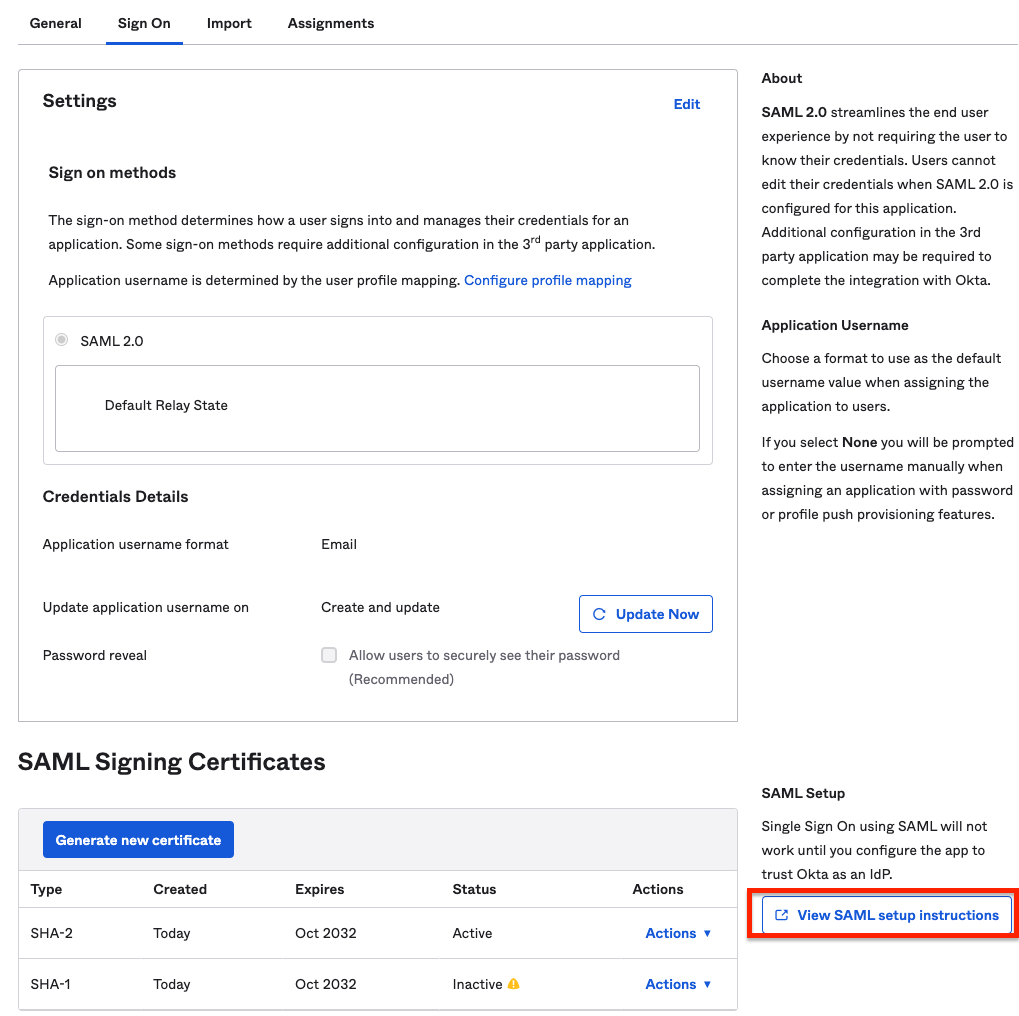

Once the Cloudi-Fi application is created on Okta, click on the button "View Setup Instructions" to retrieve technical information to be configured on the Cloudi-Fi portal.
Here are needed information:
-
Identity Provider Single Sign-On URL
-
Identity Provider Issuer
-
X.509 Certificate
3) Cloudi-Fi configuration
In the Cloudi-Fi admin portal, go to Settings Authentication module settings and select SAML for Administrators.
Fill out the form as described below with details previously retrieved on Okta :
-
IdP EntityId = Identity Provider Issuer (Marked 2 in the previous screenshot)
-
Binding Method = POST
-
IdP Endpoint = Identity Provider Single Sign-On URL (Marked 1 in the previous screenshot)
-
Logout Binding Method = POST
-
IdP Signing Certificate = X.509 Certificate (Marked 3 in the previous screenshot) without "Begin Certificate" and "End certificate" markers
-
Email attribute name = mail
Finally, click on Save
4) Enable Administrator auto-provisioning (Optional)
Enabling automatic administrator provisioning allows administrators to be assigned a Cloudi-Fi profile based on the Okta group to which they belong.
4.1 Option 1: Create Okta groups with names identical to the Cloudi-Fi administrator profiles. The default Cloudi-Fi profiles will be used.
4.2 Option 2: Use existing Okta groups. This will create new profiles on the Cloudi-Fi side with limited permissions. You will need to modify the permissions of Cloudi-Fi administrator profiles manually.

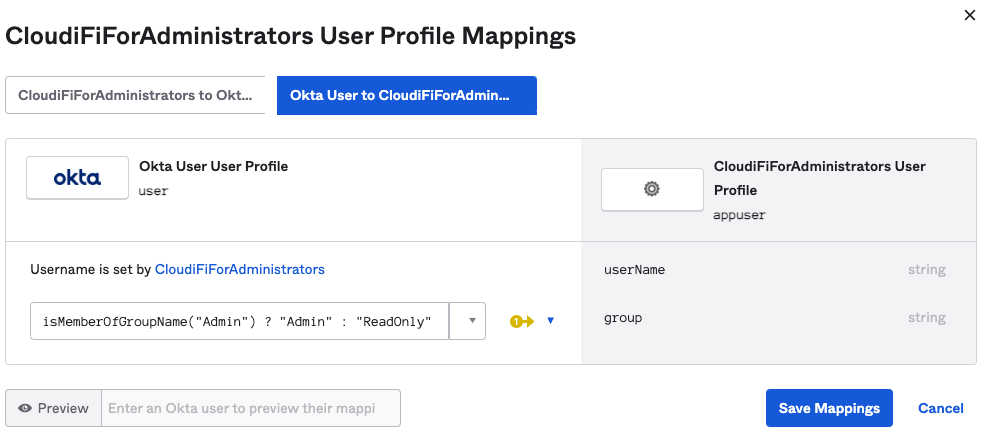

In both cases, we create a custom attribute for that app (named group), and we map isMemberOfGroupName("Admin") ? "Admin" : "ReadOnly" to that value in the profile editor.
On Cloudi-Fi Side, Configure or finalise the SAML configuration

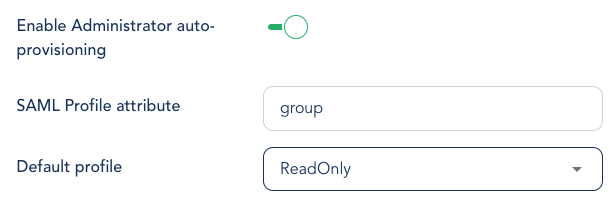

Go to Settings Auth modes SAML for Administrators. Enable Administrator auto-provisioning and type the SAML Profile Attribute.
You can also assign a Default profile if you haven't received a profile in the SAML response.
