How to set up SAML authentication for your Administrators with Google ?

Mahfoud
  • Updated

Step-by-step instructions to set up a SAML authentication for your Administrators with Cloudi-Fi and Google.



Use case

The following sections will provide step-by-step instructions for SAML authentication for your Administrators with Cloudi-Fi and Google.



Prerequisites

SAML URLs

  • Log into the Cloudi-Fi Admin User Interface

  • Navigate through the menu to locate the "Configuration" option

  • Find and select "Auth modes" within the Configuration settings to explore authentication options.

  • Choose Admin for Setup and gather the Required Details:

Linkback URL

https://admin.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-saml4admin/************
  • *****  is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account)

Cloudi-Fi Entity ID

https://admin.cloudi-fi.net/



Step 1: Create a Google Web App

  • Initiating Google Web App Integration:
    • Navigate to Apps > Web and mobile apps in your platform's interface.
    • Select the option SAML for Administrators to add a new custom SAML app.

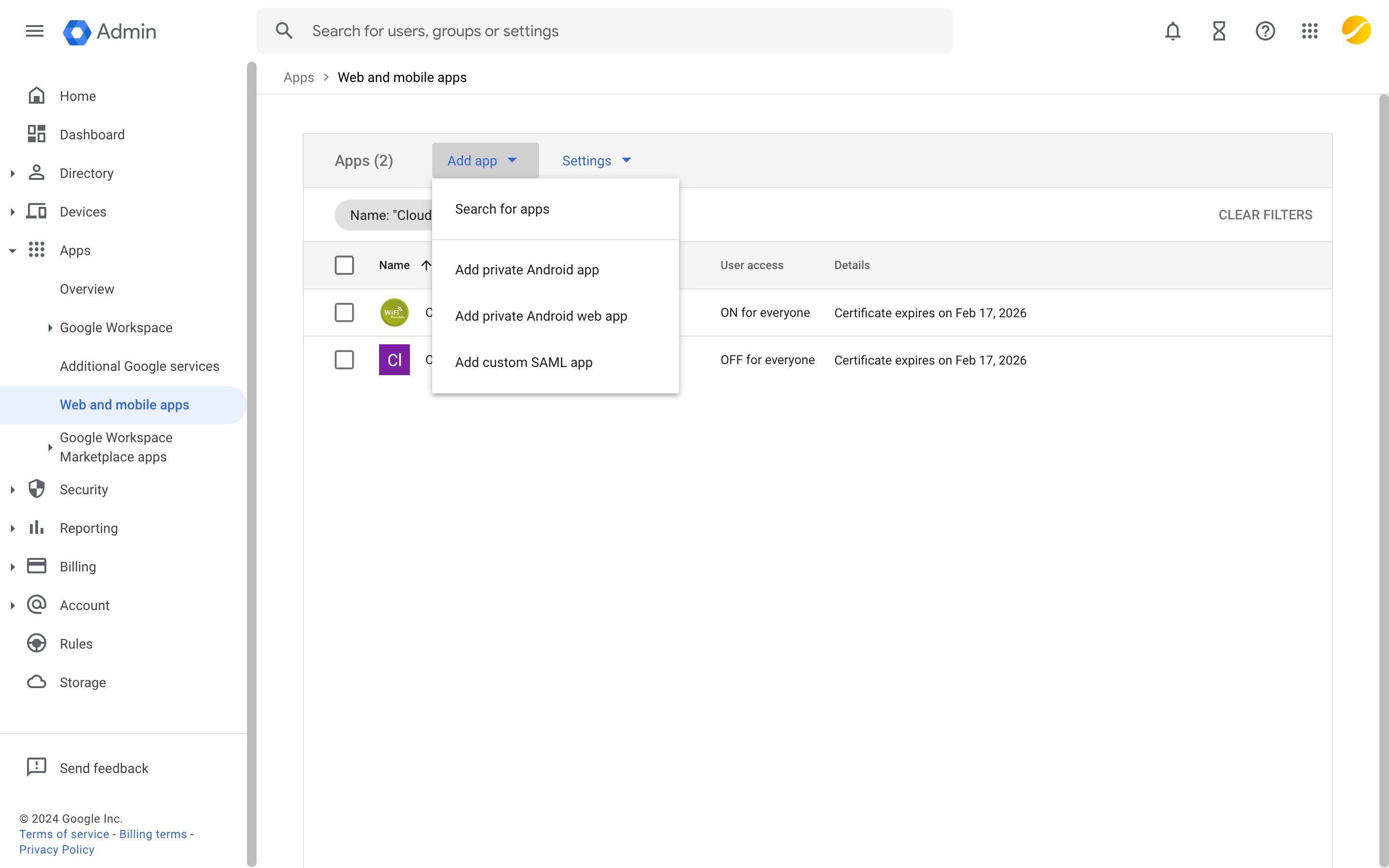

Google admin - Create a Google Web App for Cloudi-Fi.png

  • Fill in the essential details of your web app:
    • App Name: Choose a distinctive name that resonates with your web app's functionality.
    • Description: A concise overview of your web app's purpose or functionality.
    • App Logo: Upload a logo to visually represent your web app.

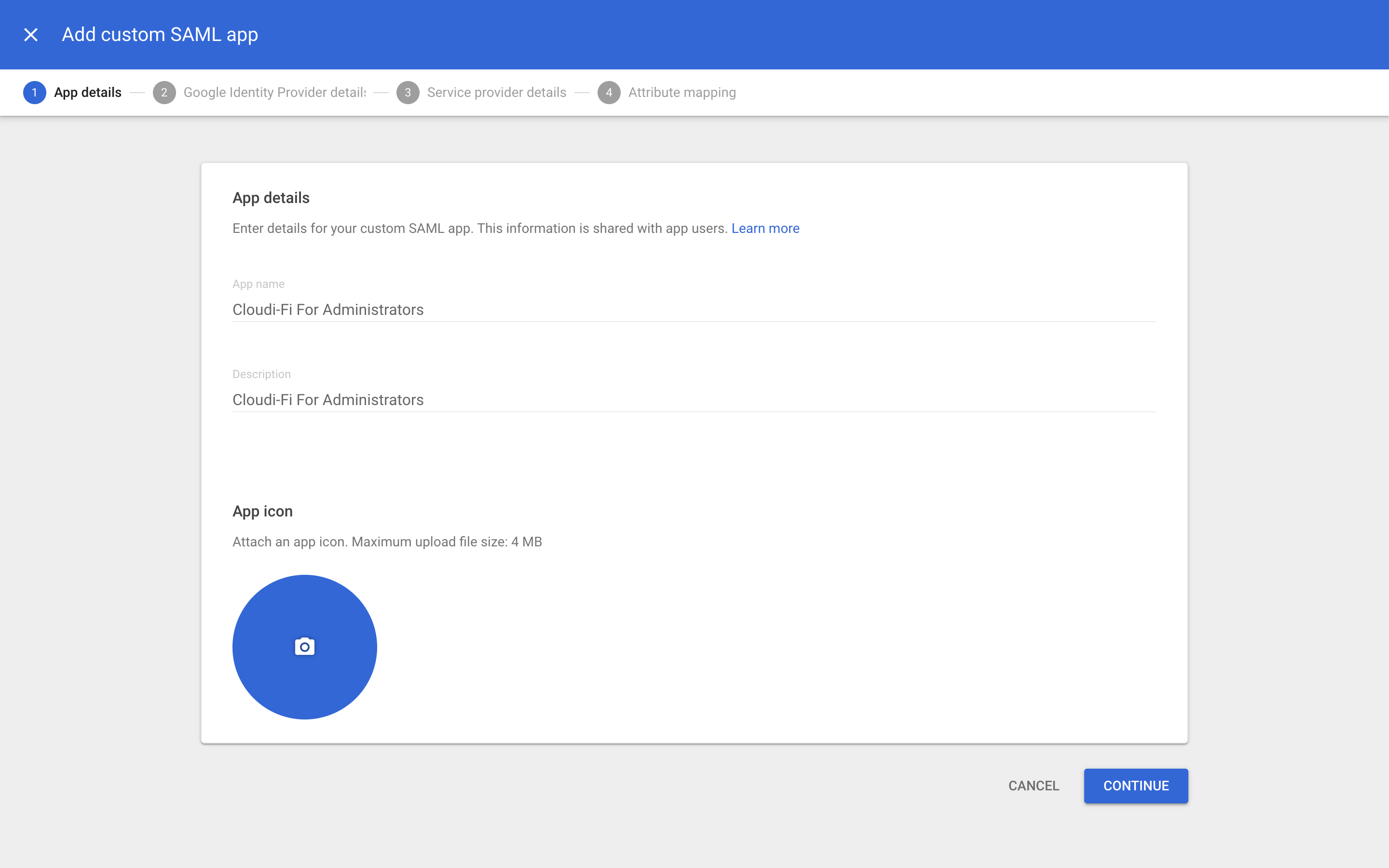

Google admin - Create a Google Web App with Cloudi-Fi for Administrators.png

  • Copy Required Information:
    • SSO URL: For Single Sign-On functionality.
    • URL ID: Unique identifier for your app.
    • Certificate: Security certificate for the SAML integration.

Alternatively, download the metadata file containing all the necessary SAML details.

Google admin - Copy required saml information for Cloudi-Fi.jpeg

  • Configuring SAML Settings For Cloudi-Fi
    • Set the Cloudi-Fi ACS URL as the linkback URL and the Entity ID as the Cloudi-Fi Entity ID.
    • Enable "Signed response".
    • Specify the NameID format as the email address and select the primary email as the name ID.

Google admin - Configuring SAML Settings For Administrators with Cloudi-Fi.jpeg

  • Adding Attribute Mappings:
    • Map the Google directory attribute "Primary email" to the app attribute "email".
    • Map the Google directory attribute "Last name" to the app attribute "lastname".

Google admin - Attribute Mappings for Cloudi-Fi.jpeg

Complete the setup process.



Step 2: Cloudi-Fi Configuration

  • Access the Cloudi-Fi Admin User Interface (UI).
  • Navigate through Configuration > Auth modes > SAML For Administrators.
  • Enter the necessary SAML details acquired from Google:
    • IdP EntityId: SSO URL.
    • Binding Method: POST.
    • IdP Endpoint: Entity ID.
    • Logout Binding Method: POST
    • IdP Signing Certificate: Enter the X.509 Certificate details, excluding "Begin Certificate" and "End Certificate" markers.
    • Email attribute name: Set as "email".
Cloudi-Fi admin - Set SAML for Administrators.png


Finally, click on Save



Once done, you must activate the SAML authentication on your captive portal.
Please contact our team (How to contact your support? ) to make the necessary changes to your captive portal or consult the articles available in our online help https://help.cloudi-fi.com/
